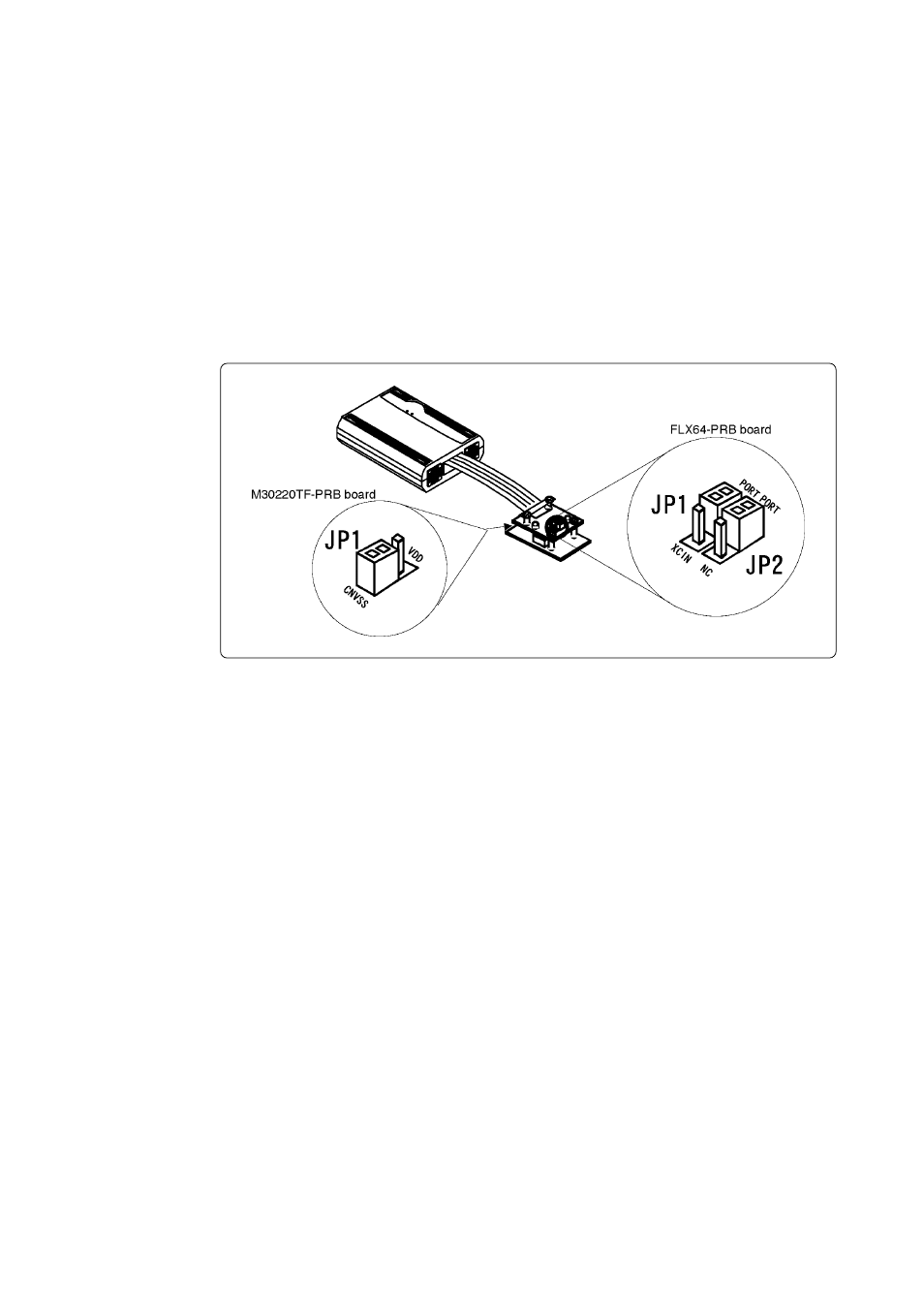

Figure 3.1 Positions of the switches and their factory-settings
Chapter 3. Setting Up
With this product, it is necessary to set the following according to your target system.
• CNVSS pin to the target system
• X
CIN
/X
COUT
pin to the target system
• Mounting the A-D conversion bypass capacitor
3.1 Switch Settings
It is necessary to set the switches of the M30220TF-PRB and FLX64-PRB for debugging according
to the target system. Figure 3.1 shows the positions of the switches of the M30220TF-PRB and
FLX64-PRB, and Table 3.1 shows the switch settings.
