5.2 External Dimensions
(1) External Dimensions of the Pod Probe

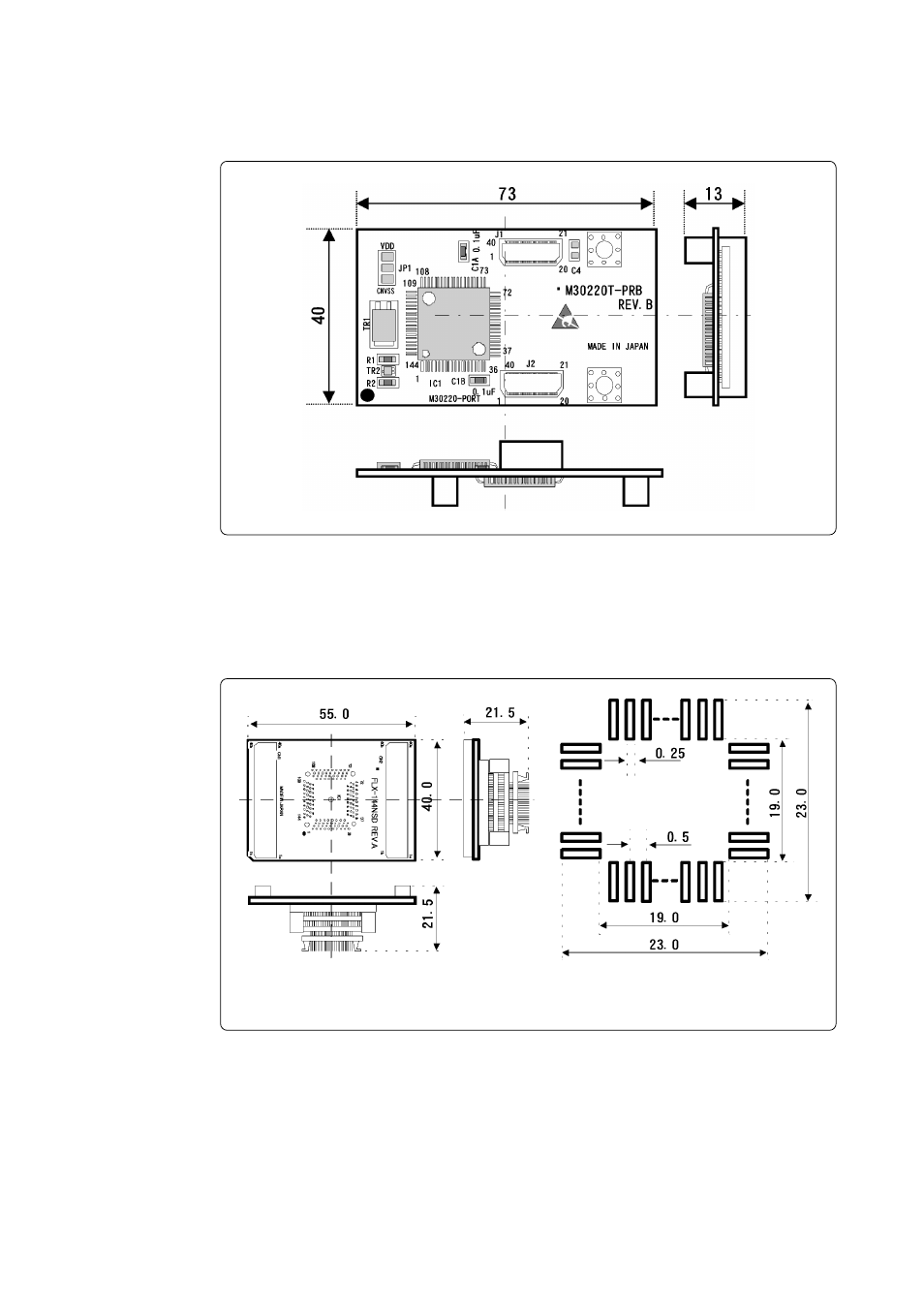

Figure 5.1 External dimensions of the M30220TF-PRB
(2) External Dimensions of the Converter Board (FLX-144NSD)
Figure 5.2 shows the external dimensions and a sample foot pattern of the pitch converter board FLX-
144NSD for 144-pin 0.5-mm-pitch LQFP.
Figure 5.2 External dimensions of the FLX-144NSD
Unit: mm
Sample foot pattern
Unit: mm
