Ricoh Camera CX6 - Manual (Page 18)

If y
ou ar
e using the c
amer
a for the first time
, r
ead this sec
tion.

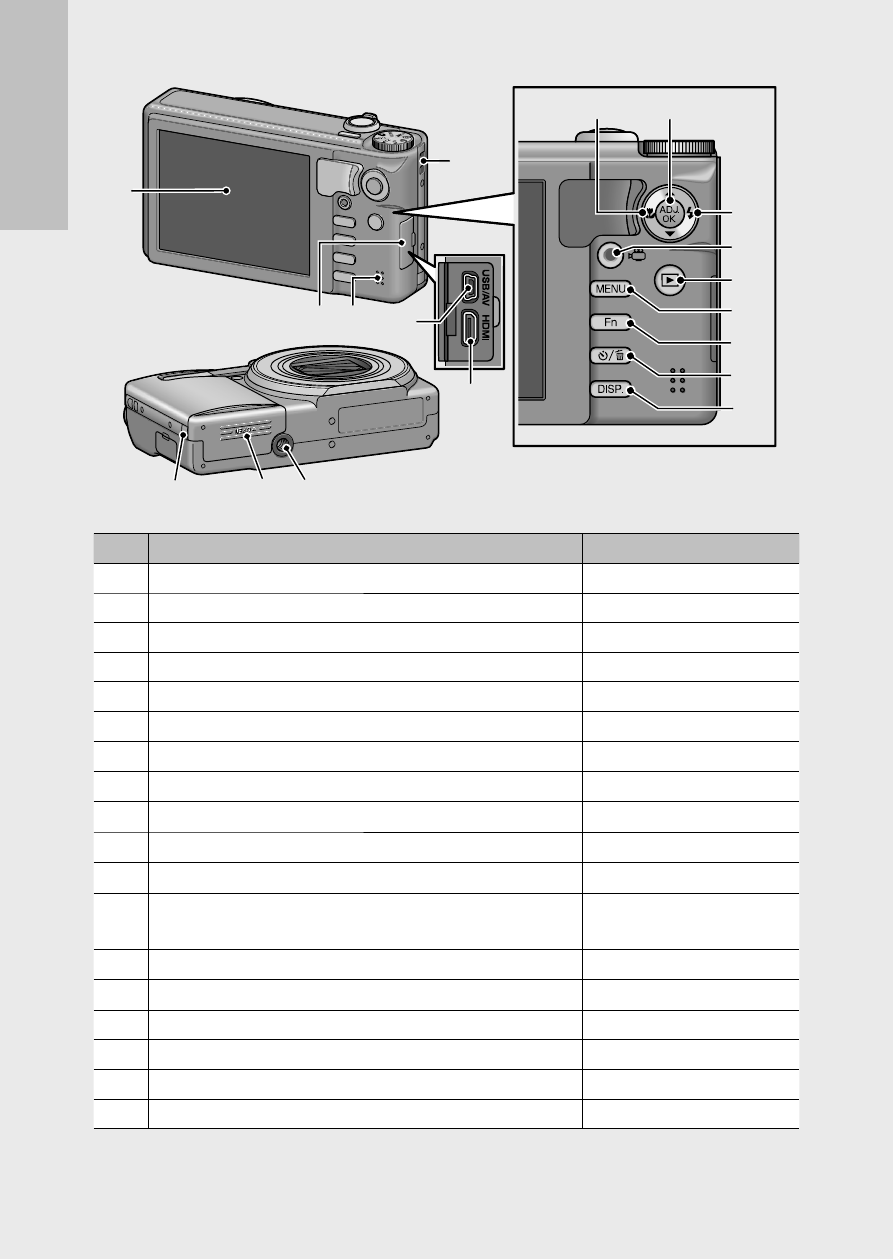

Rear View
1
17 16 18
8 7
9
11
12
10
13
14
15
2
3 4 5
6
Item Name Refer to
1 Picture Display P.17
2 Strap Eyelet P.12
3 Terminal Cover P.103, 122, 132, 135
4 Speaker P.84
5 Common Terminal for USB Port/AV Output P.103, 122, 132, 135
6 HDMI Micro Output Terminal (Type D) P.103
7 N (Macro) P.31
8 ADJ./OK Button P.108
9 F (Flash) P.32
10 3 (Movie) Button P.81
11 6 (Playback) Button P.36
12 MENU Button P.53, 56, 61, 66, 86,
105, 114
13 Fn (Function) Button P.110
14 t (Self-timer)/D (Delete) Button P.34, 39
15 DISP. Button P.38, 42, 44
16 Power (DC input) Cable Cover —
17 Battery/Card Cover P.22
18 Tripod Screw Hole P.152
