Analog output signal connections, Figure 4-6. analog output connections, Analog output signal connections -14 – National Instruments NI PCI-6110 User Manual
Page 44
Chapter 4
Connecting Signals
4-14
ni.com
Analog Output Signal Connections
The AO signals are DAC0OUT, DAC1OUT, and AOGND.
DAC0OUT is the voltage output signal for AO channel 0, DAC1OUT is the
voltage output signal for AO channel 1, and AOGND is the ground
reference signal for the AO channels.

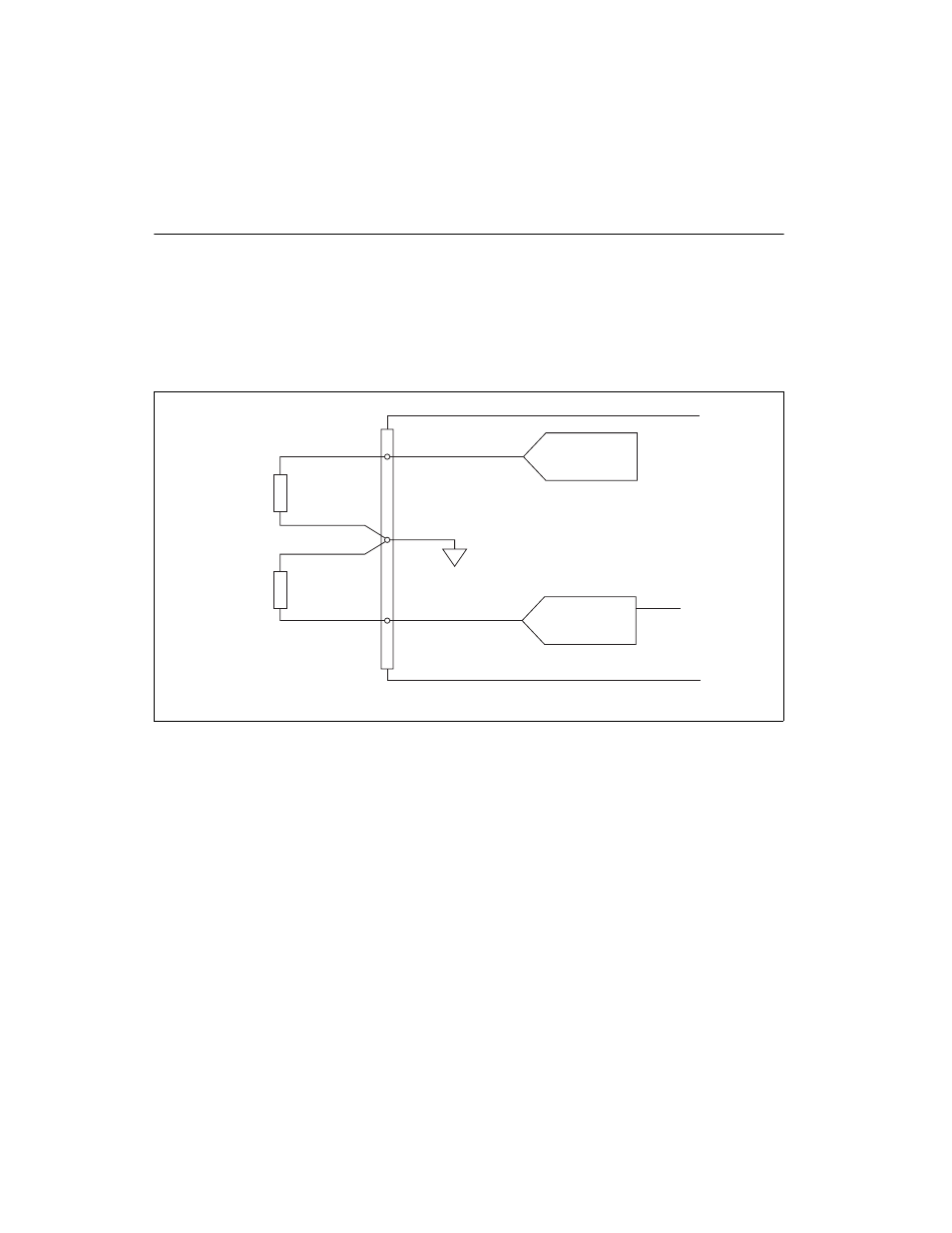

Figure 4-6 shows how to make AO connections to the NI PCI-6110/6111.
Figure 4-6. Analog Output Connections
+
–
+
–
Channel 0
Channel 1
Load
Load
VOUT 0
VOUT 1
DAC1OUT
AOGND
DAC0OUT
Analog Output Channels
NI PCI-6110/6111
