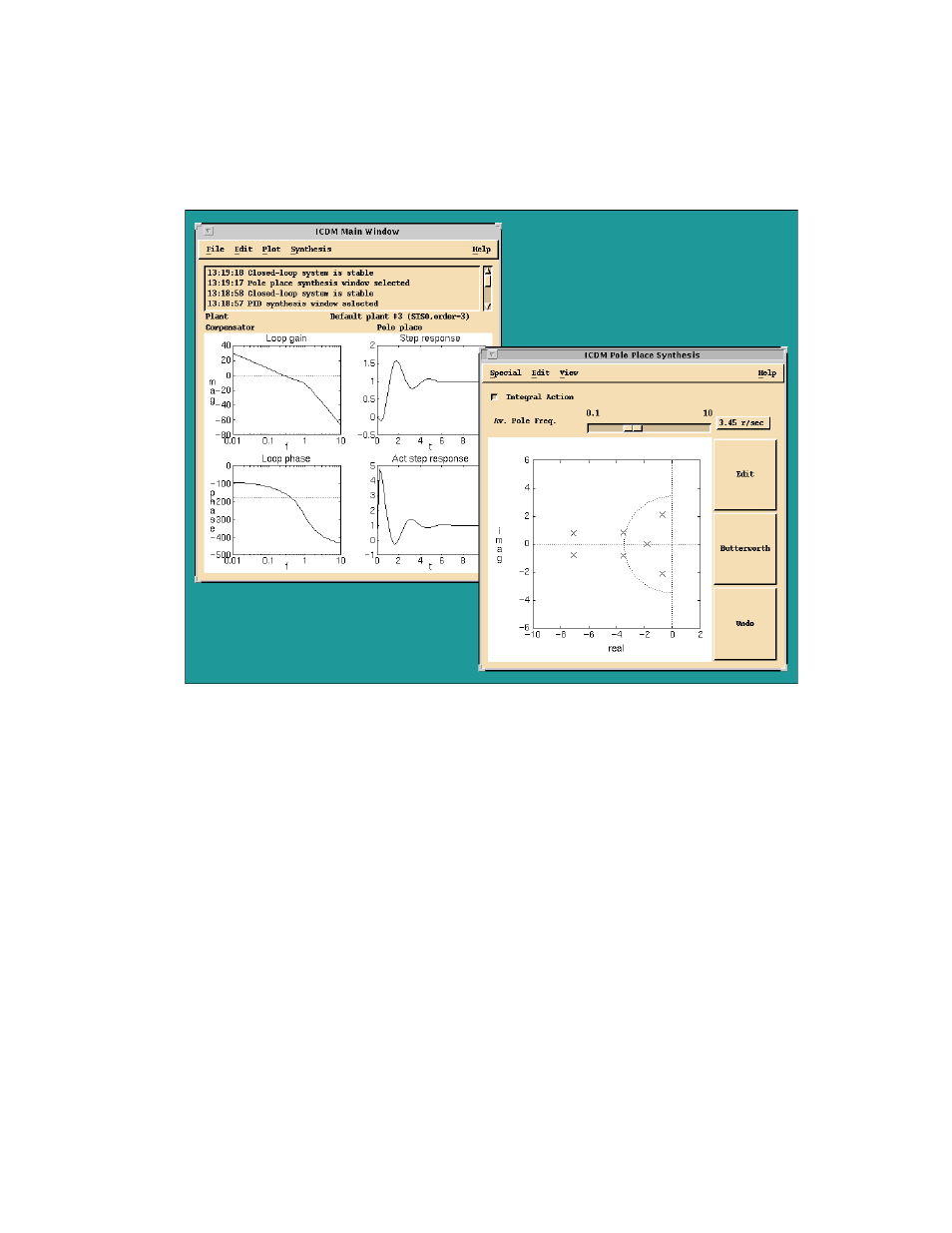

Figure 2-4. Simple ICDM Session

General Plotting Features

All of the plots in the ICDM Main and other windows support several
useful features: arbitrary re-ranging, zooming, data-viewing, and
interactive (graphical) re-ranging.

Ranges of Plots and Sliders

Every ICDM window has an associated Ranges window that can be used to
set the ranges of the sliders and plots appearing in the window, as well as
other parameters such as numbers of points plotted. The Ranges window
can be opened by selecting Ranges on the View or Plot menu, or by
pressing

in the window in question. In addition, every ICDM
