Appendix E Front Panel and Connectors
PXI-8170 Series User Manual E-6 www.ni.com
Parallel Port
Figure E-5 shows the location and pinouts for the IEEE-1284 connector on
the PXI-8170. Table E-4 lists and describes the IEEE-1284 connector
signals.
AMP manufactures a parallel port compatible connector, part
number 747052-2.

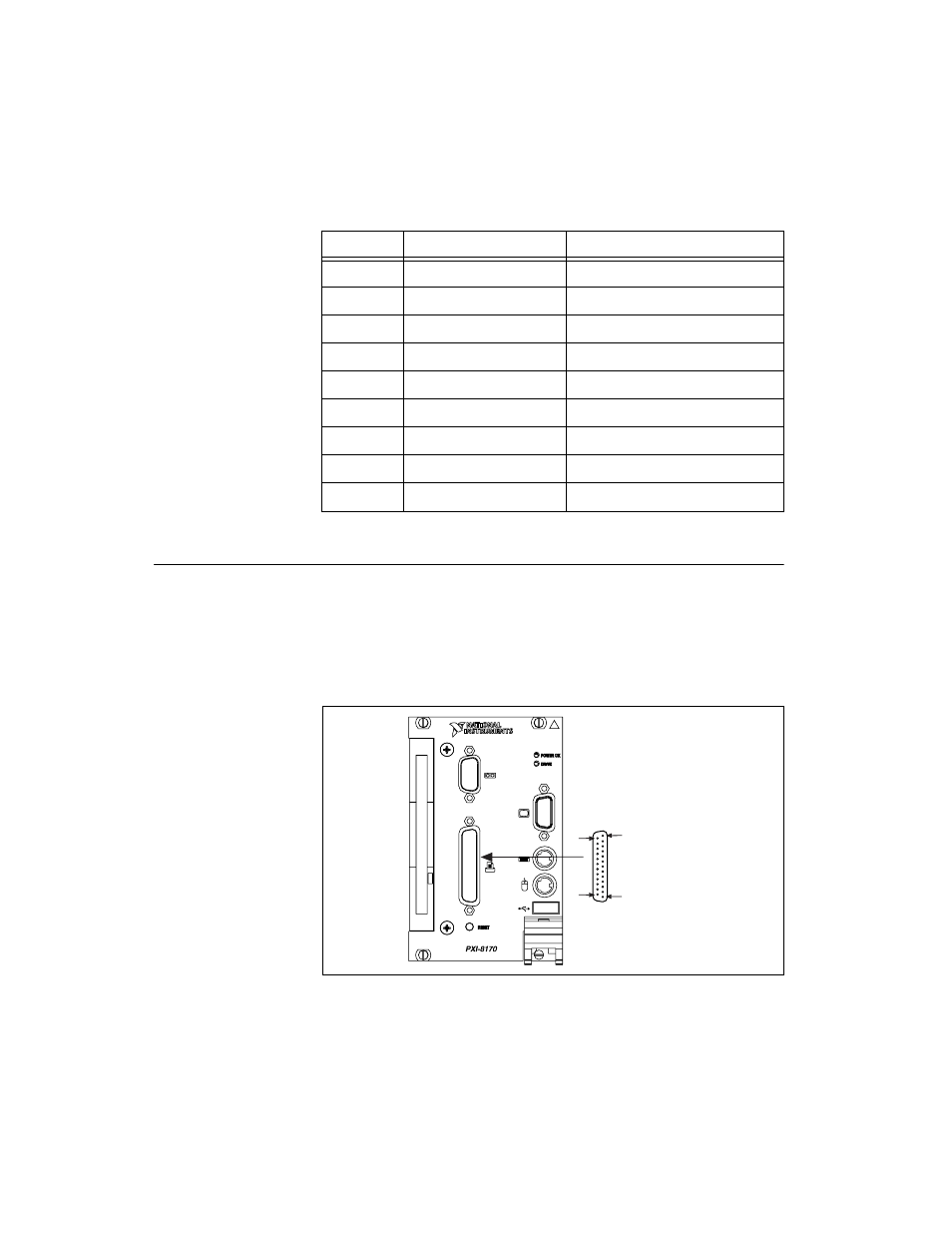

Figure E-5. Parallel Port Connector Location and Pinout
Table E-3. COM1 Connector Signals
Pin Signal Name Signal Description
1 DCD* Data Carrier Detect
2 RXD* Receive Data
3 TXD* Transmit Data
4 DTR* Data Terminal Ready
5 GND Ground
6 DSR* Data Set Ready
7 RTS* Ready to Send
8 CTS* Clear to Send
9 RI* Ring Indicator
Parallel Port
1
13
14
25
