Figures A-3 and A-4 show the keyboard and mouse options, respectively.

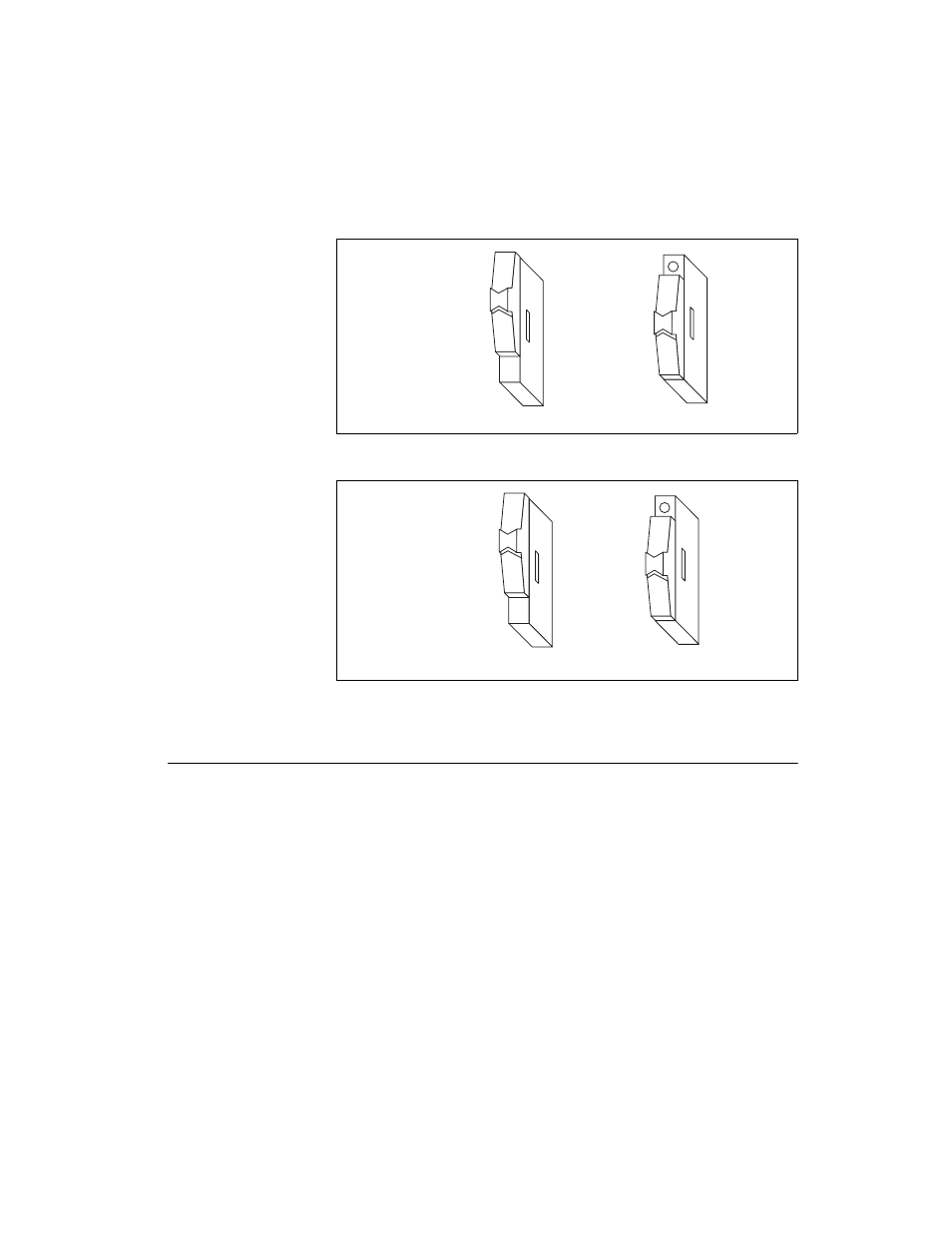

Figure A-3. Active Keyboard Port

Figure A-4. Active Mouse Port

Serial IRQ, INTP, and INTS

You can use jumper settings on the PXI-8170 Series to connect INTP on the
PXI backplane to IRQ14 or NMI, as well as INTS to either IRQ15 or to
serial IRQ. Refer to the documentation that comes with your PXI peripheral
device to see if you need to make any changes from the default settings.
For more information on Serial IRQ, refer to the Serialized IRQ Support for
PCI Systems Specification.

a. PXI-8170 Front Panel (Default)

b. Chassis

a. PXI-8170 Front Panel (Default)

b. Chassis
