Appendix E

Front Panel and Connectors

PXI-8170 Series User Manual

E-4

www.ni.com

VGA

Figure E-3 shows the location and pinouts for the VGA connector on the
PXI-8170 Series. Table E-2 lists and describes the VGA connector signals.

AMP manufactures a mating connector with part numbers 748364-1
(housing) and 748333-2 (pin contact).

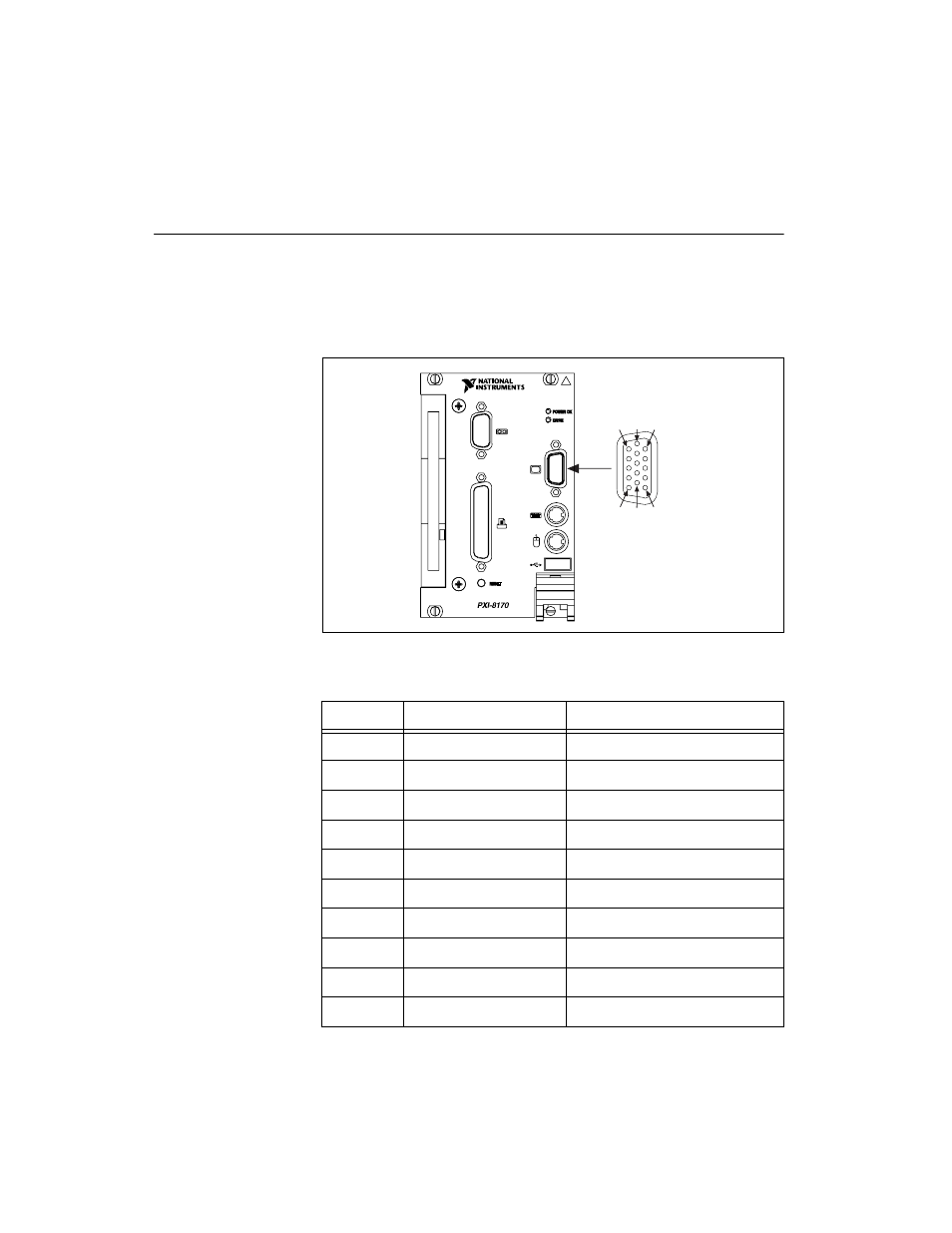

Figure E-3. VGA Connector Location and Pinout

Table E-2. VGA Connector Signals

Pin

Signal Name

Signal Description

1

R

Red

2

G

Green

3

B

Blue

4

NC

Not Connected

5

GND

Ground

6

GND

Ground

7

GND

Ground

8

GND

Ground

9

NC

Not Connected

10

GND

Ground

VGA

11

6

1

15

10

5
