Appendix A Configuring the PXI-8170 Series
PXI-8170 Series User Manual A-4 www.ni.com

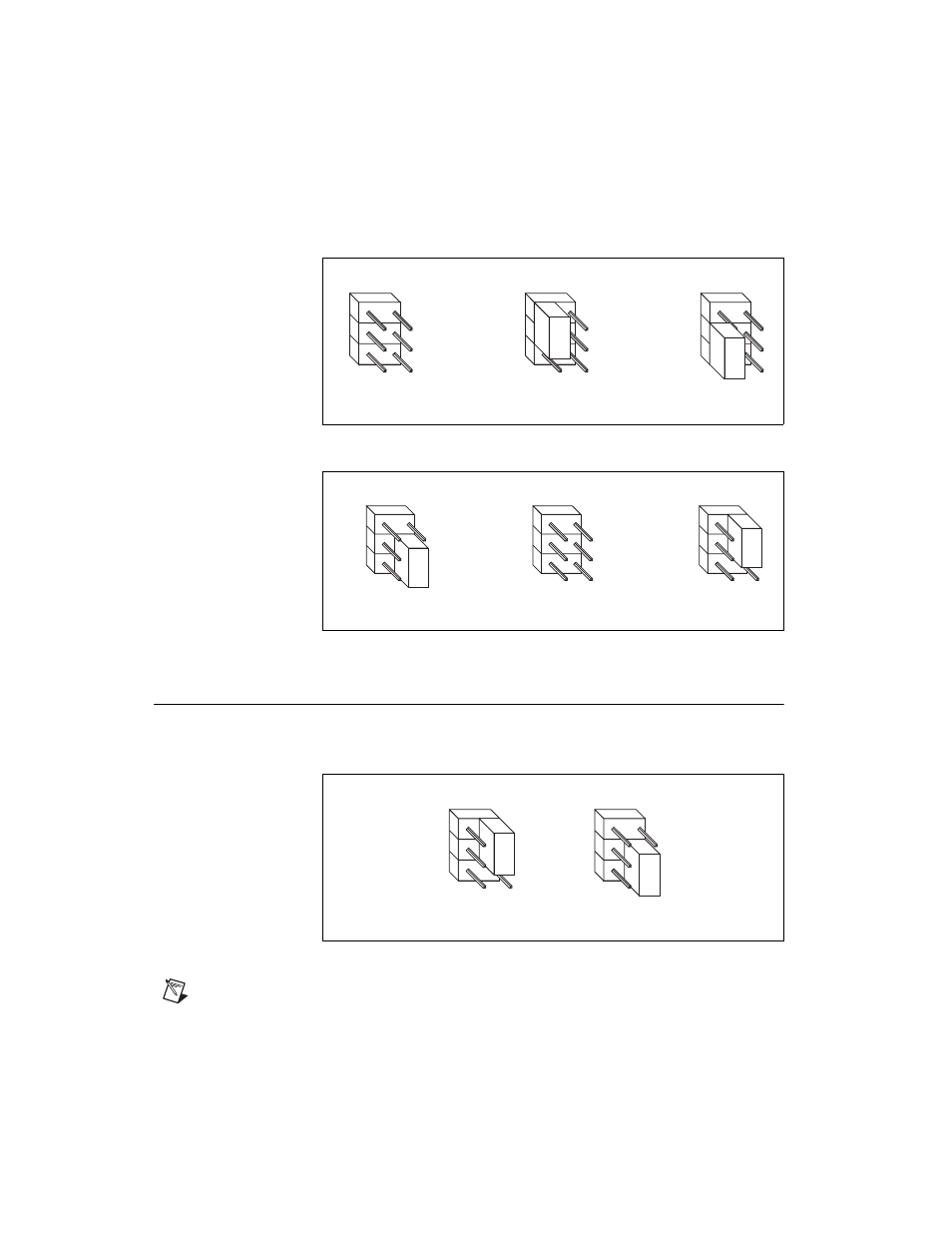

Figure A-5 shows the INTP configuration options and Figure A-6 shows
the INTS configuration options.
Figure A-5. INTP Configuration
Figure A-6. INTS Configuration
Onboard Video
The onboard video can be disabled to allow the use of a CPCI or PXI video
card. Figure A-7 shows the onboard video configuration options.
Figure A-7. Onboard Video
Note Pins 1, 3, and 5 are for system CMOS. See the System CMOS section for the proper
operation.
a. No Connection
(Default)
J7
1
3
5
2
4
6
J7
b. IRQ14
Short Pins 1,3
1
3
5
2
4
6
J7
c. NMI
Short Pins 3,5
1
3
5
2
4
6
b. No Connection
J7
1
3
5
2
4
6
J7
a. Serial IRQ (Default)
Short Pins 4,6
1
3
5
2
4
6
J7
c. IRQ15
Short Pins 4,2
1
3
5
2
4
6
J4
b. Onboard Video
Disabled
1
3
5
2
4
6
J4
a. Onboard Video
Enabled (Default)
1
3
5
2
4
6
