Appendix A - sDIO Module
94 Adept SmartController User’s Guide, Rev. E
Rack Mounting the sDIO
To rack mount the sDIO module in a standard 19-inch equipment rack, you must first
install the mounting brackets (see
Figure A-2 ) on each side of the unit. These brackets
must be ordered separately, they do not come with the SDIO.

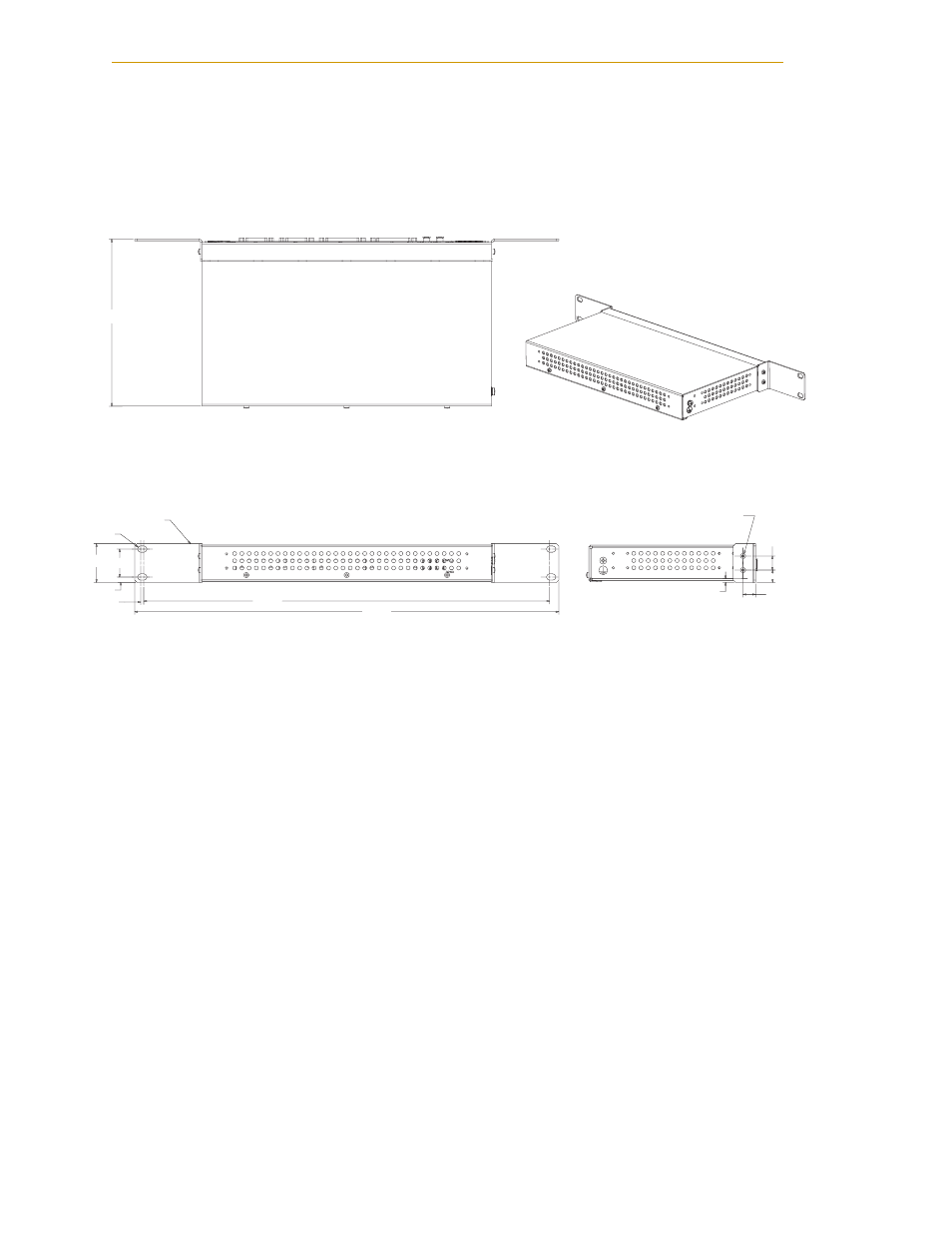

Figure A-2. Rack Mounting the sDIO
3.6
TYP.
6.1 4.2
31.8
16.0
43.9
14.2
2X 40356-00003
R 3.6
190.0
2X M3 x 6MM
BOTH SIDES
482.8
462.0
14.0
