Chapter 6 - Technical Specifications
92 Adept SmartController User’s Guide, Rev. E

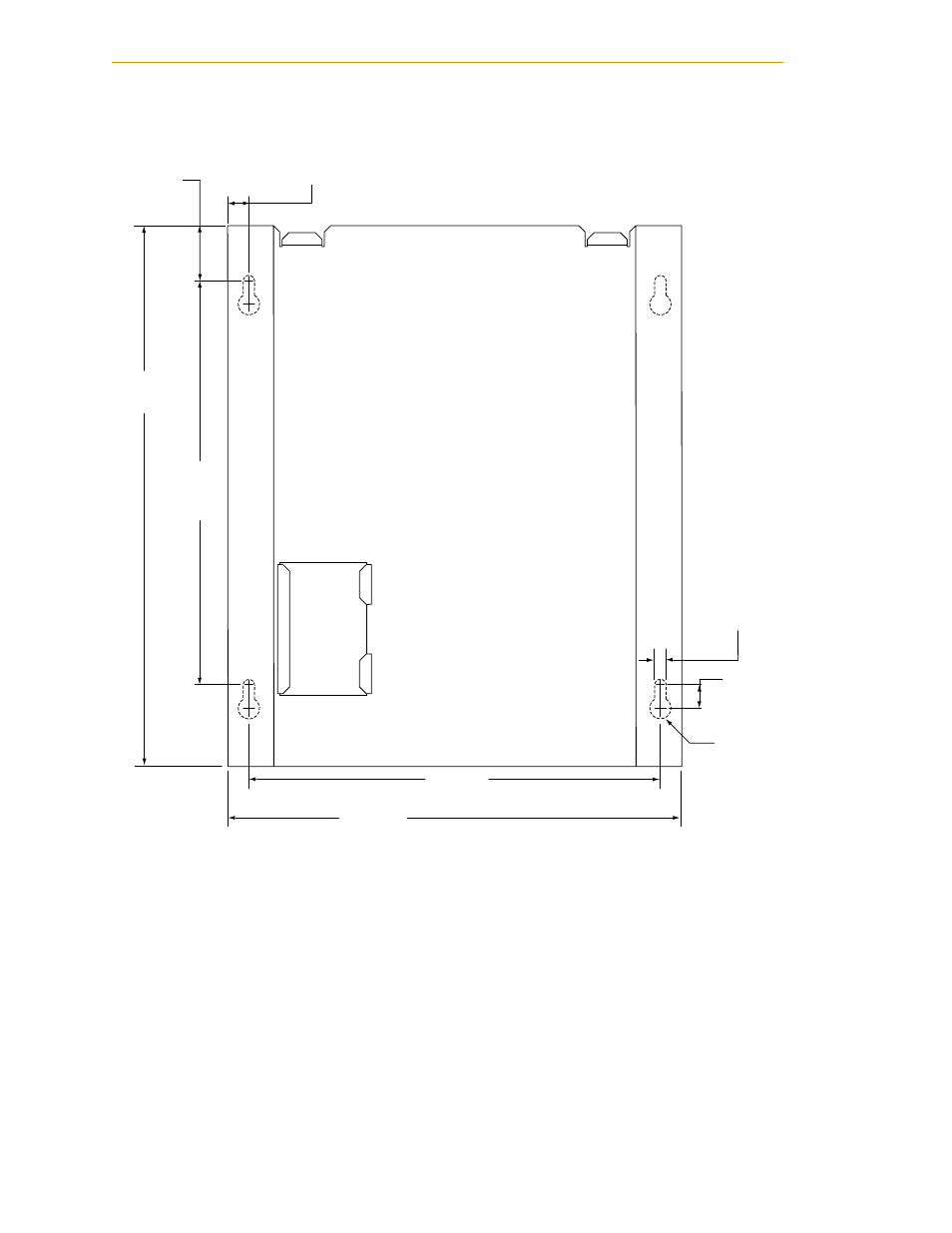

Figure 6-6. MCP Cradle Dimensions
10.2 mm
(0.40 in.)
(4 X)
28.7 mm
(1.13 in.)
(2 X)
203.2 mm
(8.0 in.)
(2 X)
271.5 mm
(10.69 in.)
4.8 mm
(0.19 in.)
(4 X)
221 mm
(8.70 in.)
201 mm
(7.91 in.)
9.7 mm
(0.38 in.)
(4 X)
ø 9.7 mm
(ø 0.38 in.)
(4 X)
