Appendix B - Adept DeviceNet

120

Adept SmartController User’s Guide, Rev. E

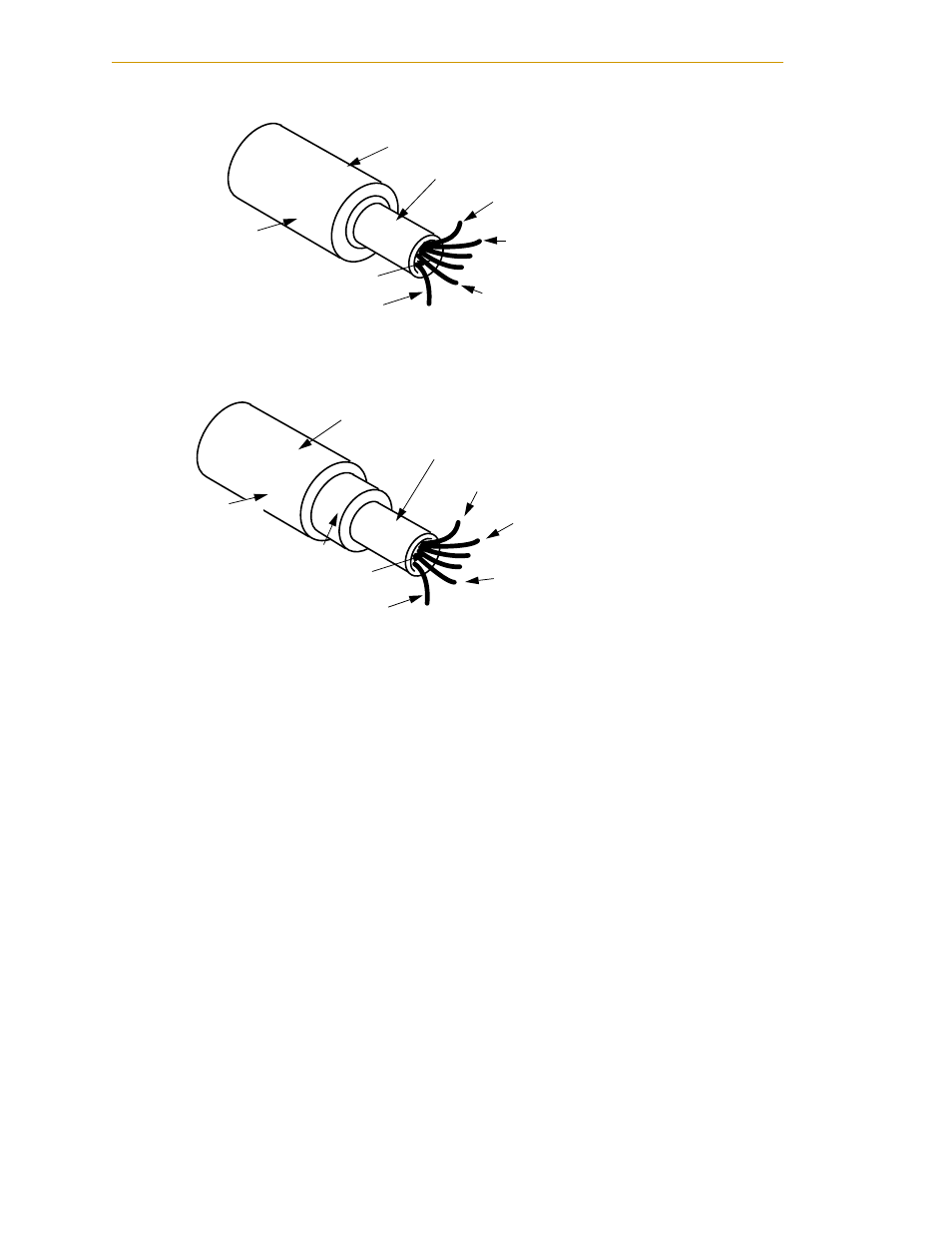

Figure B-2. DeviceNet Thick Cable

Figure B-3. DeviceNet Thin Cable

11mm (0.43) Outside Diameter

65% Coverage Tinned
Copper Braid Shield

Polypropylene Fillers

Blue & White Data-Pair Polyethylene (18
AWG 19 x 30 Tinned & Stranded Copper
Conductors)

Red & Black DC Power Pair PVC (15 AWG
19 x 28 Tinned & Stranded Copper
Conductors)

18 AWG 19 x 30 Tinned
Copper-Stranded Drain Wire

Aluminum/Mylar Shield Over Each Pair

External Jacket

7.2mm (0.285 in) Outside Diameter
