Controller Installation
Adept SmartController User’s Guide, Rev. E 27
Table Mounting the SmartController
To table mount the SmartController, install two brackets on each side near the bottom of
the unit, as shown in
Figure 2-3 . Use the screws from the accessories kit.

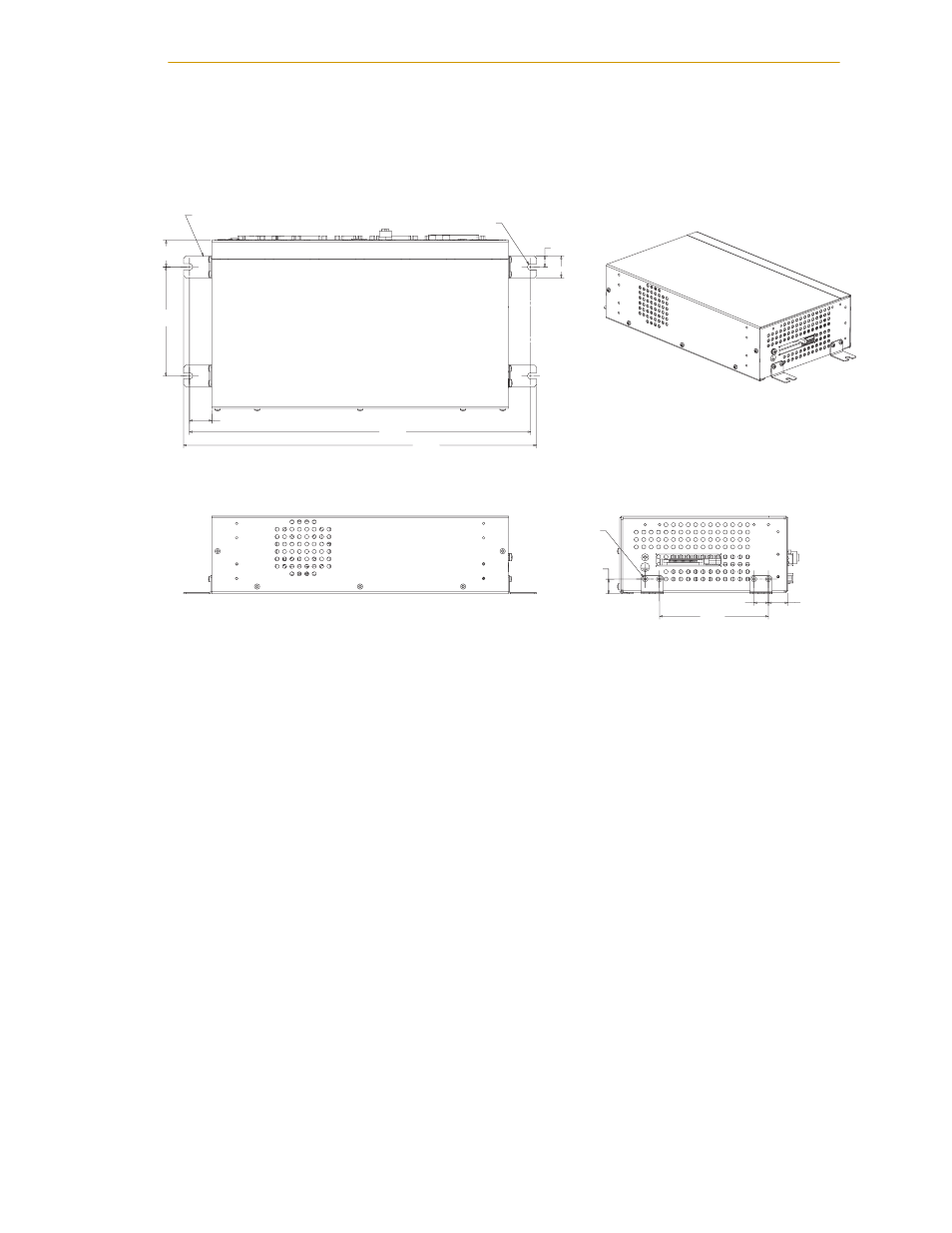

Figure 2-3. Table Mounting the SmartController
21.6
12.1
29.5
16.2
120.9
16.0
R 3.6
378.6
24.1
4X 40356-00001
24.9
4X M3 x 6MM
BOTH SIDES
391.8
120.9
