Dtmf detector, Fsk modem, Handset/ speaker interface – Nortel Networks RTU-292 User Manual

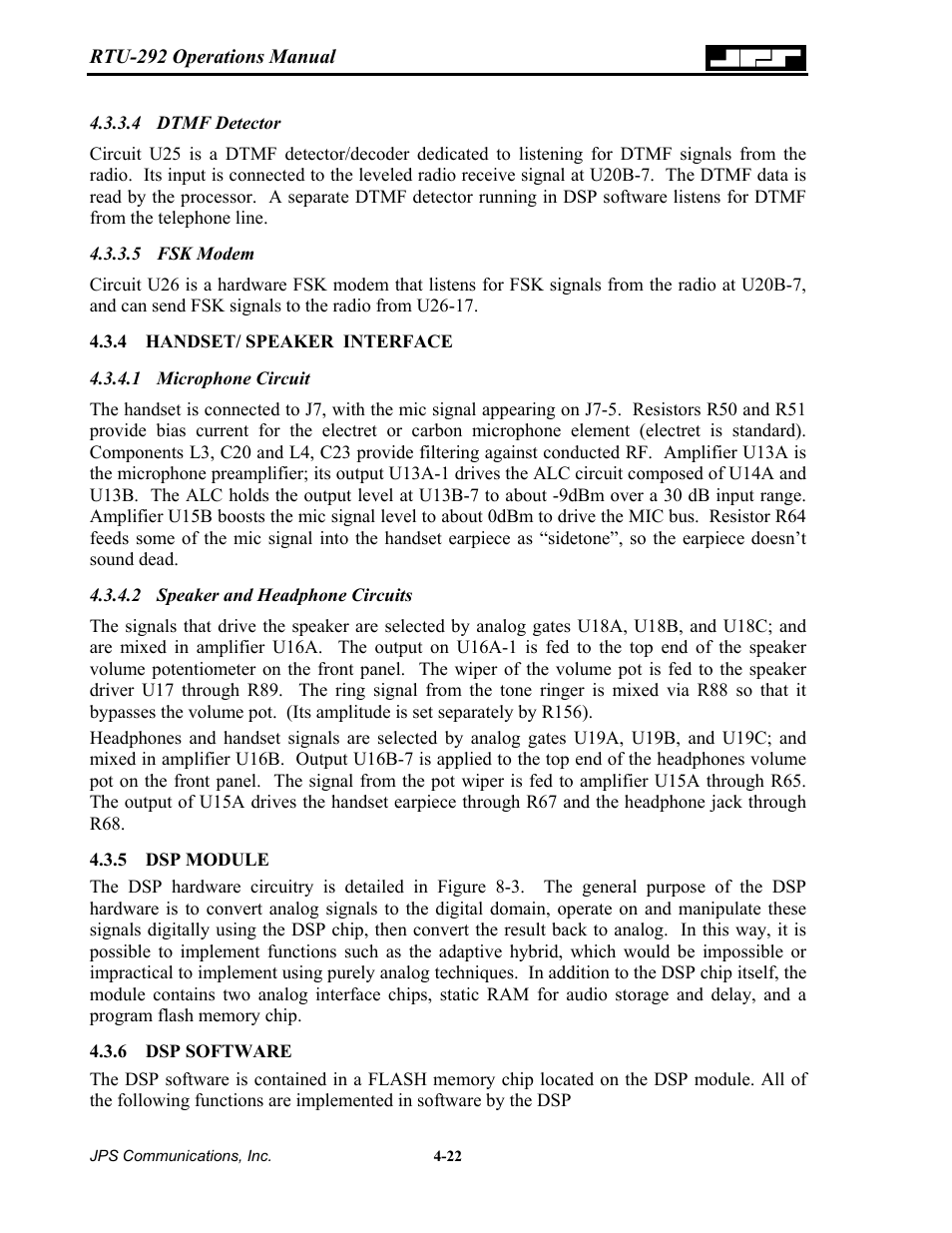

Page 62: Microphone circuit, Speaker and headphone circuits, Dsp module, Dsp software, 4 handset, Speaker interface -22, 5 dsp
