LIP-6812 & LIP-6830
Installer Guide
Rev 01.04
2
June 07
-
Flexible feature mapping
-
Last number redial
- Call
Return
- Station-to-Station
dialing
-
Handset, Headset, Speakerphone, and Ring volume control
-
LCD Contrast control
-
Call Hold Ringback
- Hands-free
dialing
-
Label for the Programmed feature buttons
-
Full Duplex Speakerphone
-
Multiple Ring types
-
Distinctive Ring tones
- G.723.1A/G.729AB/PCMU/PCMA
voice
codec
-
Acoustic Echo canceller
- Auto
Answer
- Ringer
Off
-
Web Based Management
NOTE: Certain feature functionality may be limited as a result of the VoIP environment.
1.3
LIP-6812/LIP-6830 General Description
The LIP Phones interface with the user to deliver voice and audio signals over the handset and
speaker. A Microphone, which can be switched On and Off (muted), is located in the right front
for audio input to the LIP-6812 and LIP-6830 Speakerphone. The 3-line-24 character LCD is a
visual output for status and interactive menus. The various buttons are the LIP-6812 and LIP-
6830 input devices used to access resources, activate features, and interact with menus.
Location of the devices and buttons of the LIP-6812 are provided in Figure 1.3-1 and Figure
1.3-2. Location of the devices and buttons of the LIP-6830 are provided in Figure 1.3-3 and
Figure 1.3-4.

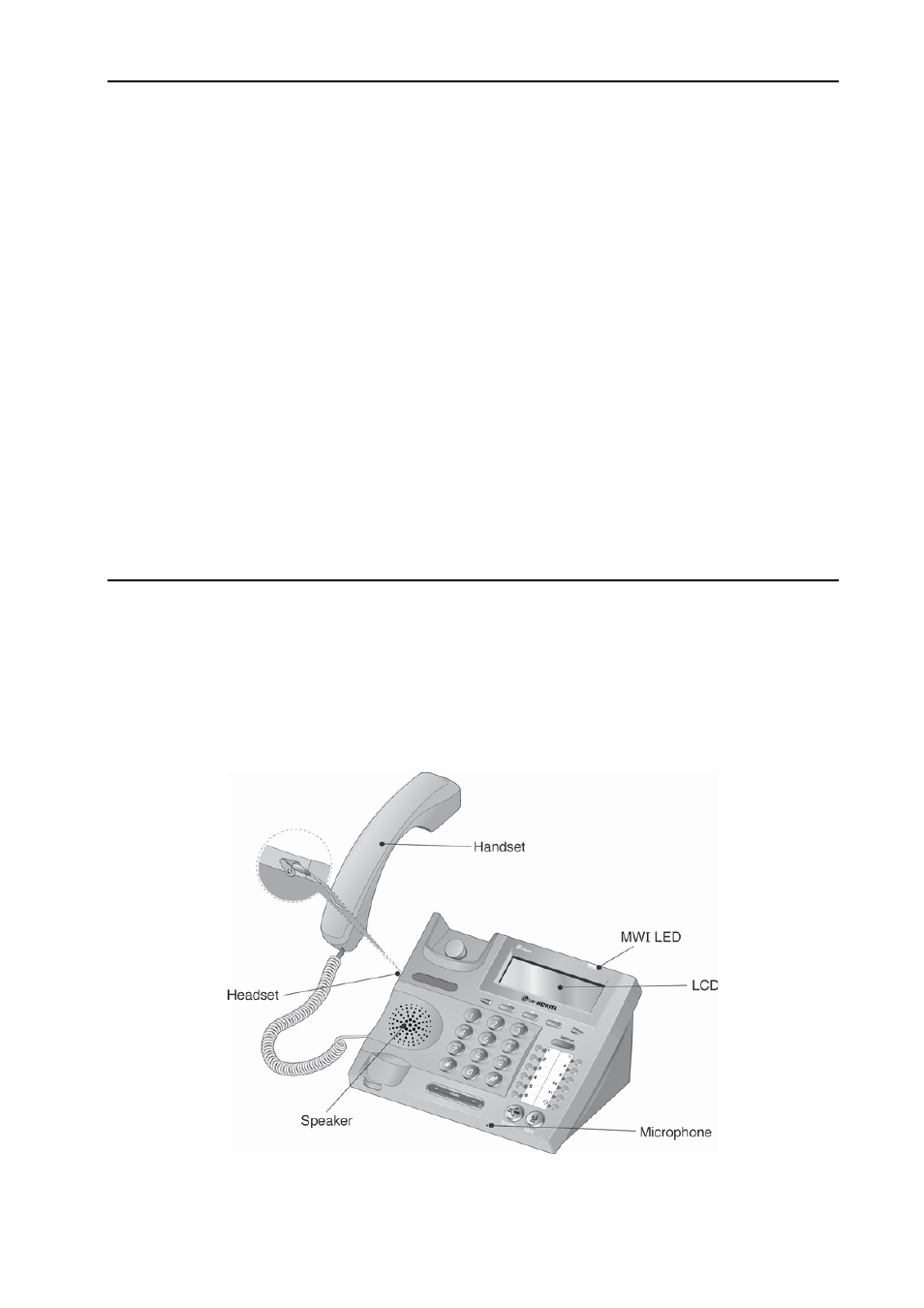

Figure 1.3-1 Front view of LIP-6812
