About Your Projector
22
- ENGLISH
Preparation

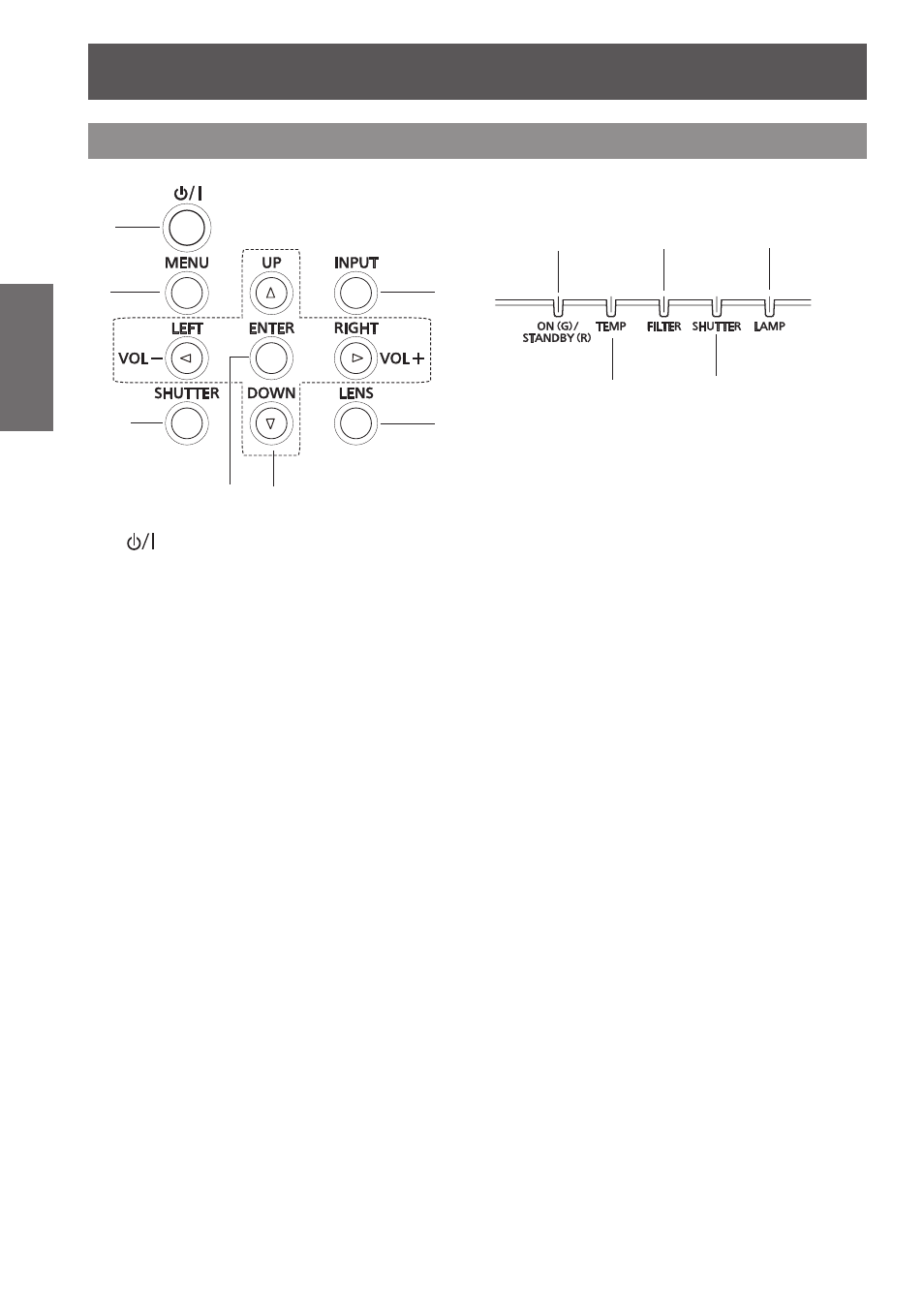

Side control and Indicators
(1)
(2)
(4) (5)
(7)
(6)
(8)
(9)
(1) < > button
Turn the projector on or off.
(2)
Æ page 47)
(3) / button
* button (Only for EZ570 series,
EW630 series and EX600 series.)
Close and open up the built-in shutter.
* button (Only for EW530 series and
EX500 series.)
Temporarily turn off the image on the screen.
(4) button
Execute the selected item.
(5) ▲▼◄► (VOL-/+) buttons
Navigate the menu display. z
Pan the image in Digital zoom + mode. z
Adjust the volume level (with ◄► buttons). z
(6) button
Select an input source.
(7) button
Enter the focus, zoom, and lens shift adjustment
mode. ( Æ page 41)
(10)
(11) *
(12)
(8) indicator
Light red while the projector is in stand-by mode. z
Light green during operations. z
Blink green in the Power management mode. z
(9) indicator
Blink red when the internal temperature of the
projector exceeds the operating range.
(10) indicator
Light orange when the clogging of the filter is
detected or the filter counter reaches a time
set in the timer setting, urging immediate filter
replacement.
(11) / indicator
* indicator (Only for EZ570 series,
EW630 series and EX600 series.).
Light blue when the shutter is closed.
* indicator (Only for EW530 series
and EX500 series).
Light blue when in AV MUTE mode.
(12) indicator
Light orange when the projection lamp reaches
its end of life.
