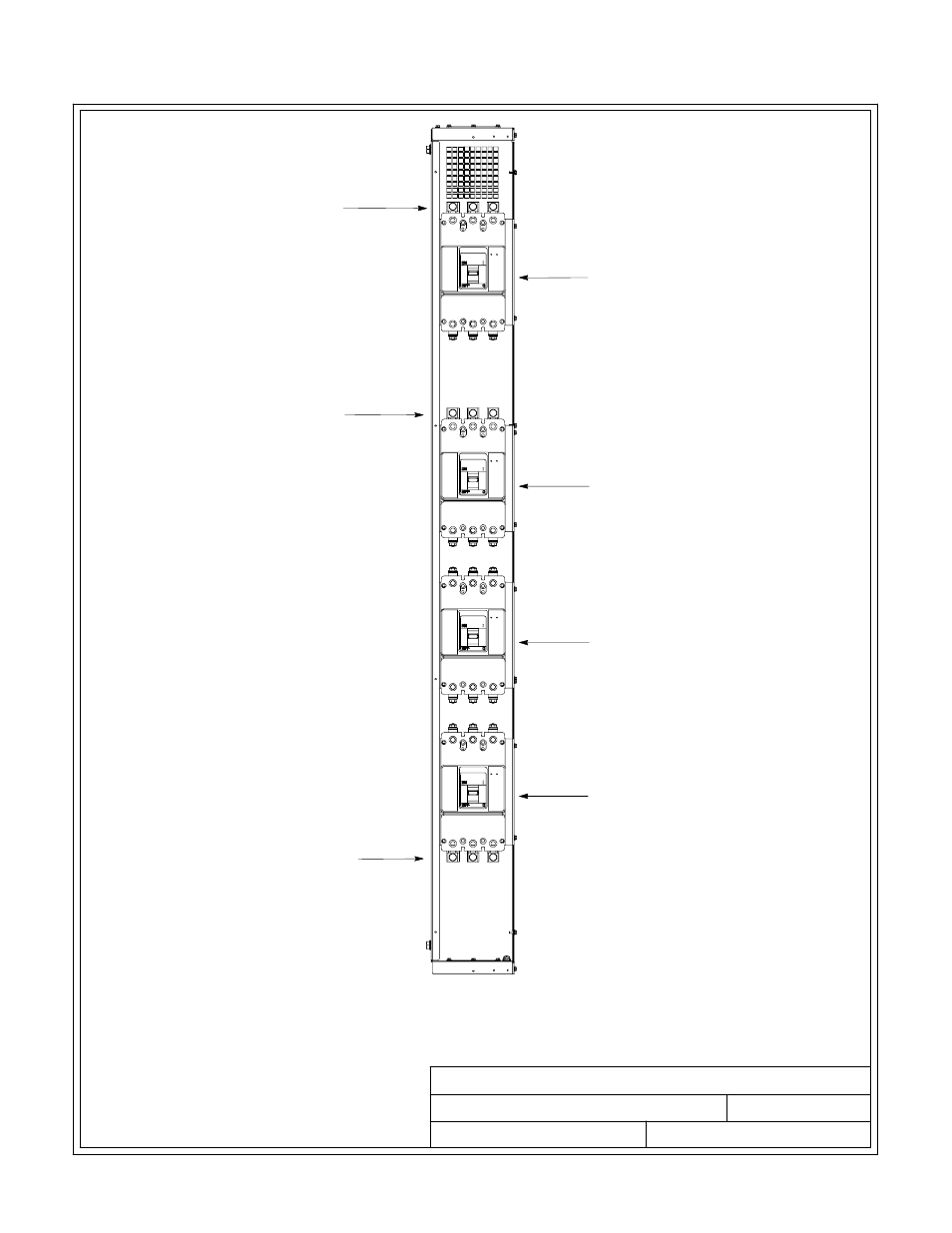

POWER TERMINAL LOCATIONS
062806 C
DESCRIPTION:
DATE:
DRAWING NO: SHEET:
REVISION:
164201546---6
MAINTENANCE
BYPASS SWITCH (MBP)
(SEE SHEET 28 of 34
FOR DETAILS)
MAINTENANCE
ISOLATION SWITCH (MIS)
BYPASS INPUT
BREAKER (BIB)
(OPTIONAL)
(SEE SHEET 27 of 34
FOR DETAILS)
AC OUTPUT TO
CRITICAL LOAD
(A, B, C)
AC INPUT TO BYPASS
(A, B, C)
RECTIFIER INPUT
BREAKER (RIB)
(OPTIONAL)
(SEE SHEET 28 of 34
FOR DETAILS)
AC INPUT TO UPS
RECTIFIER
(A, B, C)
MAINTENANCE BYPASS CONFIGURATION WITH BIB AND RIB OPTIONS
10 of 34
80/40, 80/50, 80/60, 80/80 KVA, 208/208V AND
160/100, 160/120, 160/160 KVA, 480/480V
NOTE 1. Metal shields covering wiring
terminals must be removed to
access terminals.
2. 80/40 must be wired as 80/50.
3. 160/100 must be wired a 160/120.
INSTALLATION INFORMATION
EATON Powerware ® 9390 UPS Sidecar Installation and Operation Manual S 164201586 Rev E www.powerware.com A-39
