SmartNode Model 4830 Series Overview 21
SmartNode 4830 Getting Started Guide 1 • General information
A model-code extension indicates the combination of ports the IAD model provides. The model-code conven-
tions are, according to the following conventions:
• JS indicates FXS ports are present
• JO indicates FXO ports are present
• X stands for the type of WAN interface present. It can take the following values:
- C (V.35)
- D (X.21)
- K (E1 RJ48C plus dual coax)
- T (T1 RJ48C)
- AA (ADSL Annex A RJ11)
- AB (ADSL Annex B RJ11),
- GS (G.SHDSL RJ11)
• EUI stands for external universal input power supply (see figure 6 )
• UI stands for universal input power supply
For example, the model code SN4836/4JS2JOD/EUI describes a SmartNode configured as follows:
• 4 FXS analog telephony ports
• 2 FXO analog telephony voice ports
• An X.21 serial WAN data port
• An external universal input power supply
Note For a complete listing of available models, refer to the SmartNode
VoIP page at http://www.patton.com/voip/.

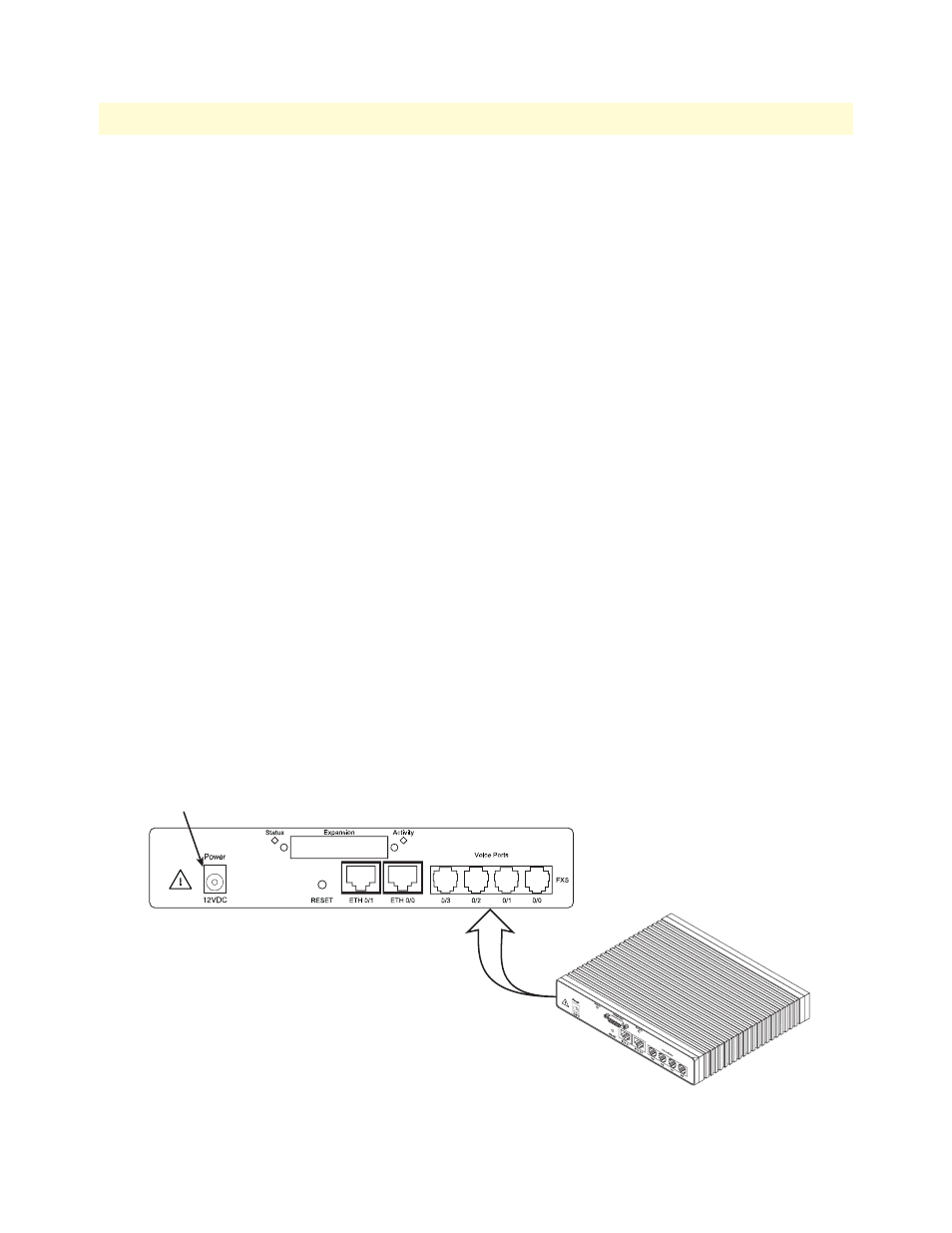

Figure 6. SmartNode 4830 Series power input connector
DC power connector
