SmartNode Model 4830 Series Overview 18
SmartNode 4830 Getting Started Guide 1 • General information
SmartNode 4830 Series Detailed Description
The SmartNode 4830 Series VoIP Integrated Access Device (IAD) provides VoIP calling for up to 8 analog
phone lines seamlessly integrated with 2-port Ethernet LAN connectivity and serial WAN access via a T1/E1,
V.35 or X.21 service. Available with various combinations of FXS and FXO ports, this compact analog VoIP
and WAN Integrated Access Device supports 2, 4, 6, or 8 VoIP calls (see
figure 3 for FXS versions and figure 4
on page 19 for FXO and FXS/FXO combined versions).

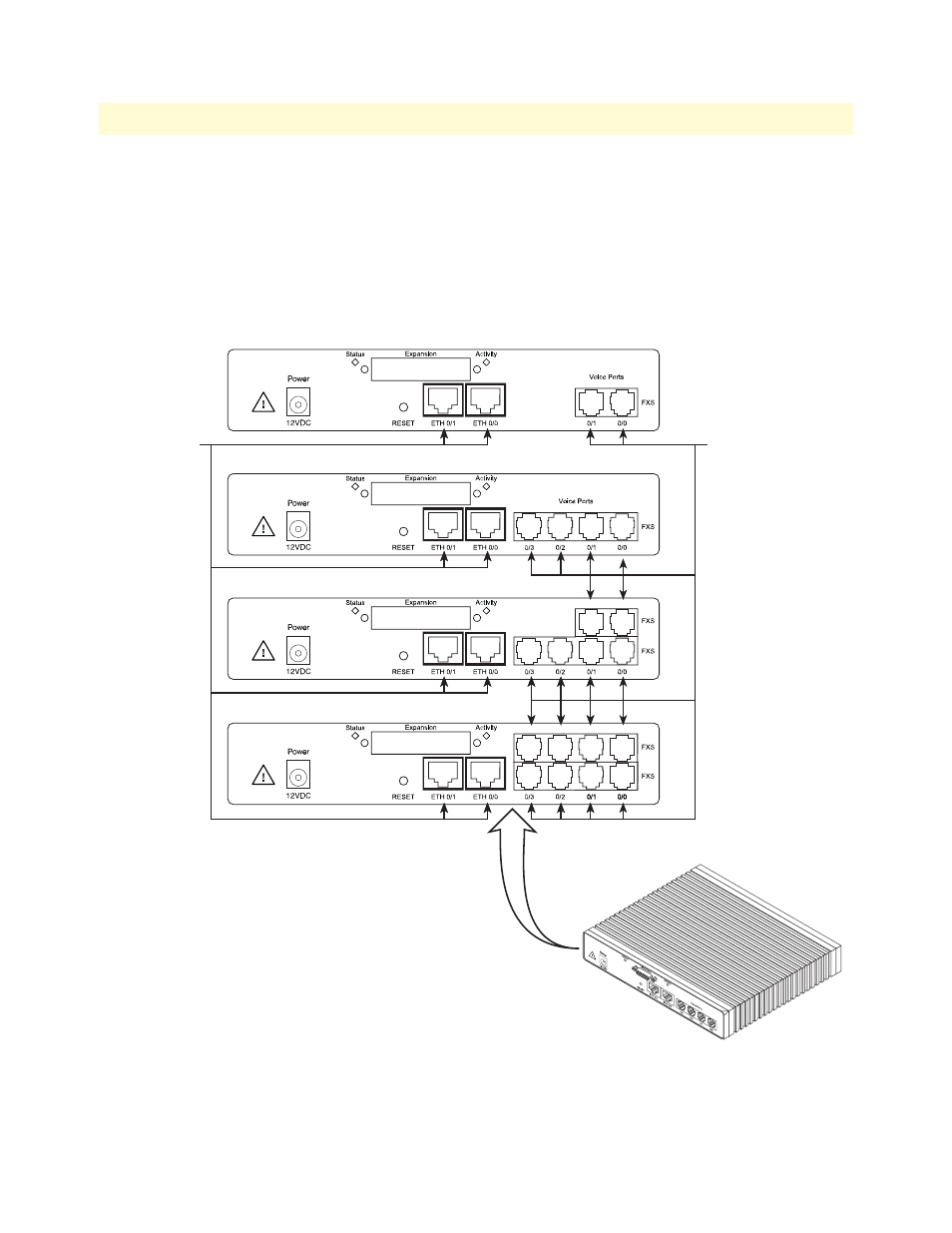

Figure 3. Examples of SN4830 Series rear panels (FXS only)
Note DSL models only have one Ethernet port.
Model SN4832/JSX*/EUI
Model SN4834/JSX*/EUI
Model SN4836/JSX*/EUI
Model SN4838/JSX*/EUI
0/4 0/5
0/4 0/5 0/6 0/7
FXS ports
1 or 2
10/100 Ethernet ports
