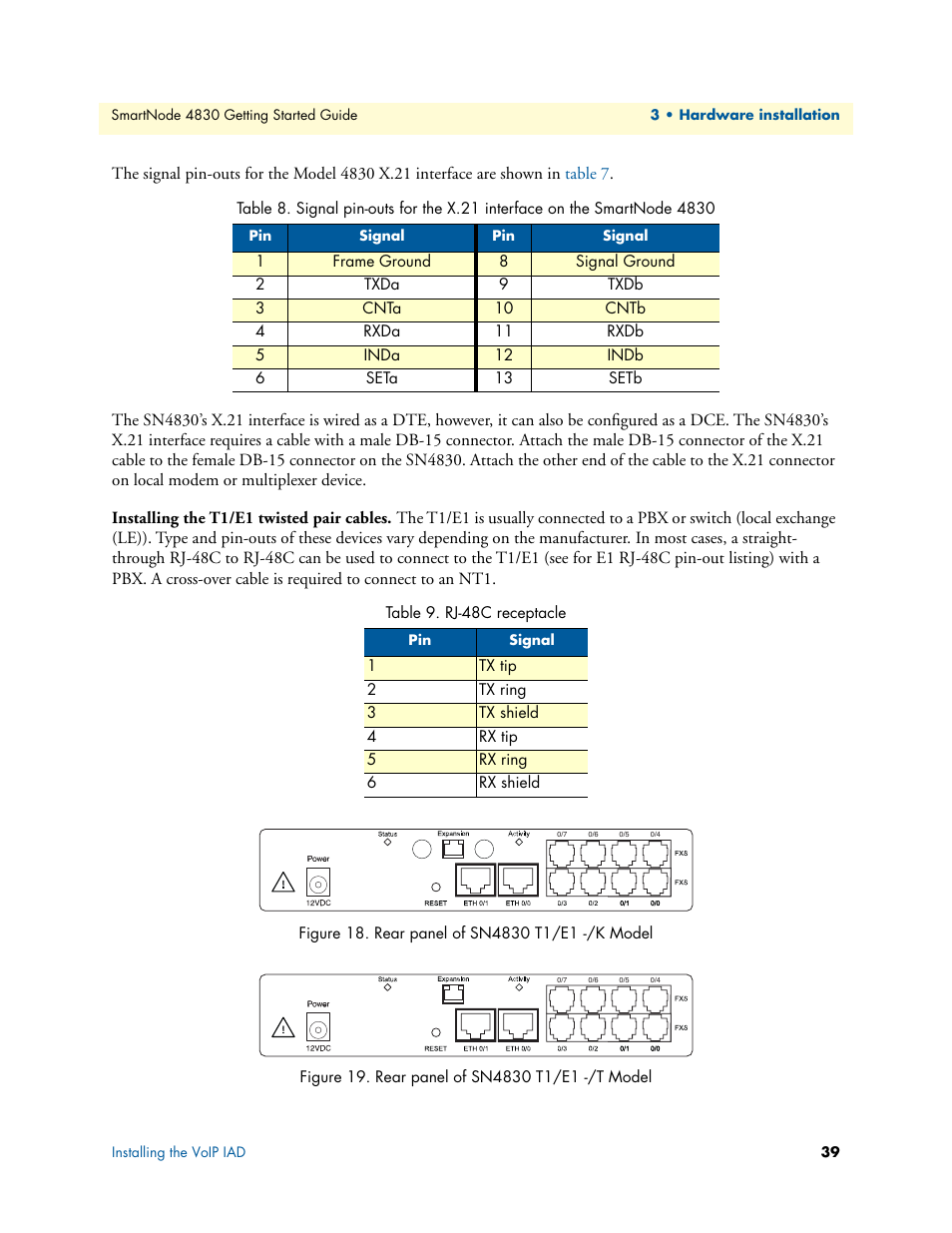

Installing the t1/e1 twisted pair cables, Rear panel of sn4830 t1/e1 -/k model, Rear panel of sn4830 t1/e1 -/t model – Patton electronic SmartNode 4830 Series User Manual
Page 39: Rj-48c receptacle, Ee section
