1. DESCRIPTION OF THE DIGITAL IMAGING SYSTEM AND THE OPTIONAL EQUIPMENT (Cont.)
Touch Panel
The following information is shown on the touch panel:
Machine status, operational instructions, cautionary messages, reproduction ratios, total copy quantity,
paper size of a selected drawer and amount of paper in a selected drawer.

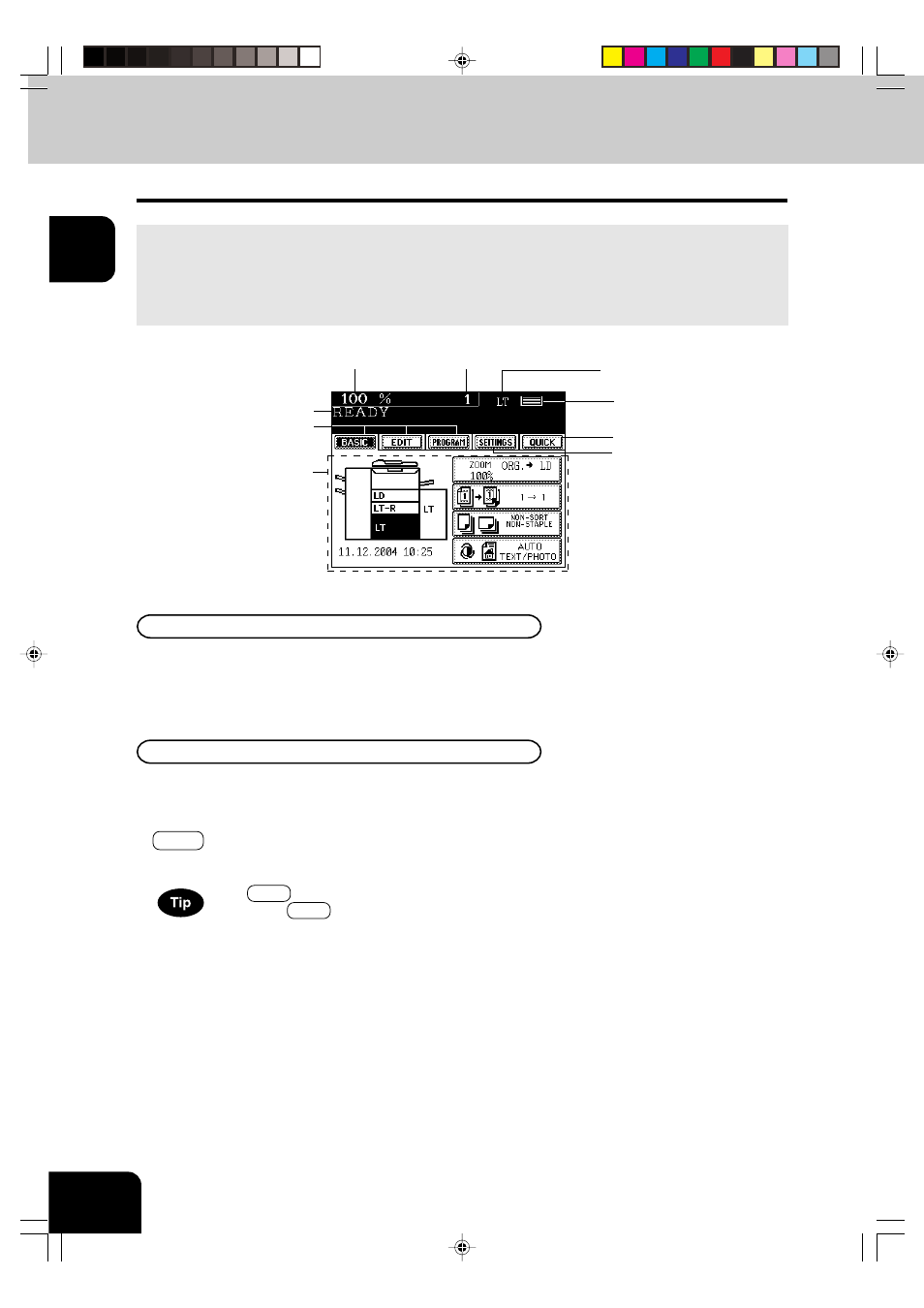

When the power is turned on, and ‘READY’ is displayed, the following basic screen is shown on the touch
panel.
On the screen, currently set functions, selected functions and the machine status are shown using
messages and illustrations.
* The contents of the touch panel screens on this manual show a machine equipped with full-options.
Function setting area
Total copy quantity Reproduction ratio
Message
Index keys
Set functions confirmation key
Message Display
Touch-keys
Currently selected drawer size
Quick access key
Remaining paper level
Various function items are touch-key selectable. Press any key lightly with your finger.
- Index keys
Used for switching between Basic, Editing, and Program menus.
- QUICK (Quick access) key
Frequently used finishing mode and duplex copying can be simultaneously set on one screen. This screen
is also easier for visually impaired persons to see by displaying black letters on white background.
The Quick (Quick access) key is not indicated on the touch panel in the initial setting.
To use the Quick (Quick access) key, contact your authorized service representative.
- Function setting area
This is where you select or set various functions.
