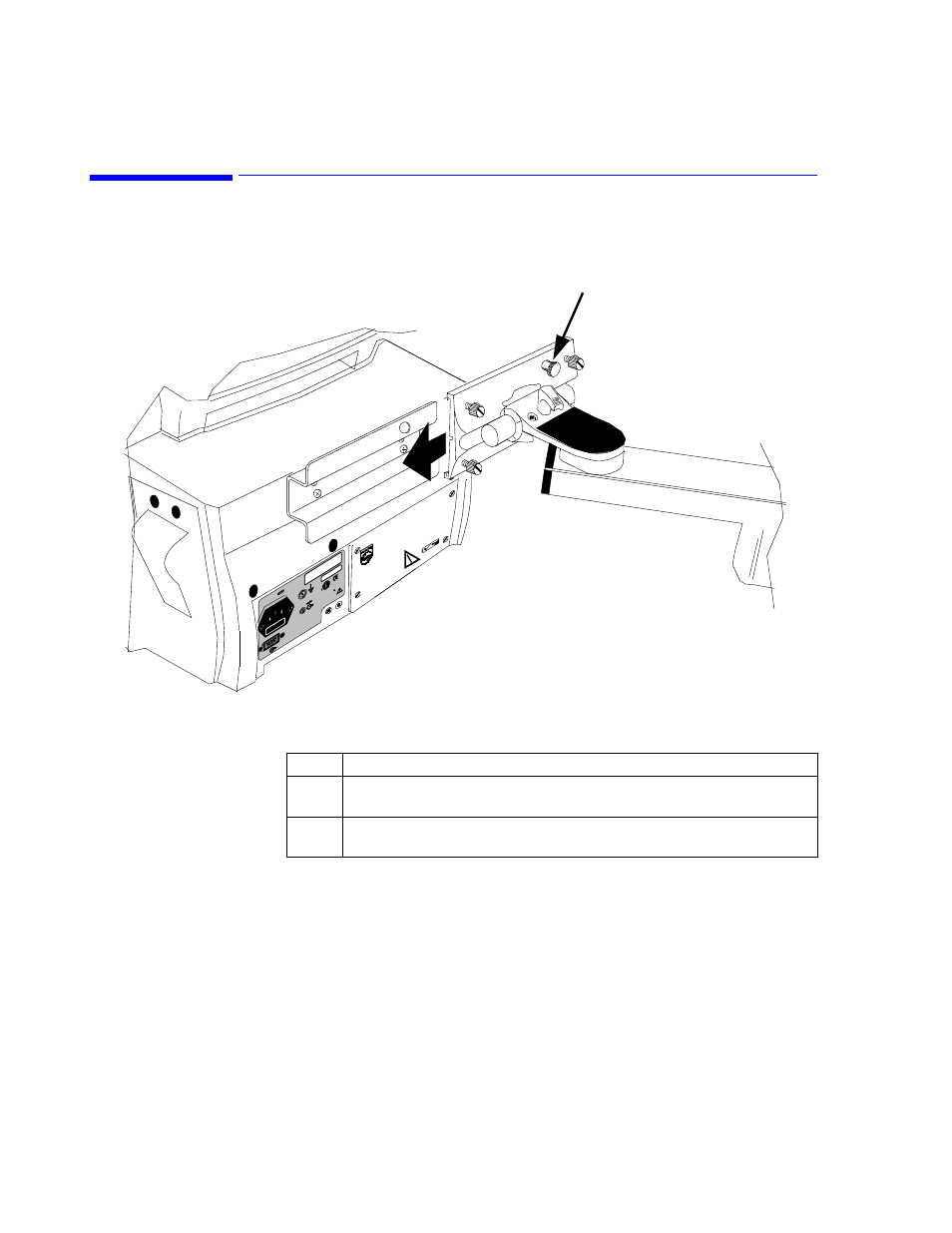

Attaching the Monitor to the Wall Channel
2-10 Site Preparations
Attaching the Monitor to the Wall Channel
Latch
Ph ilip s C
3 P ati en t M on ito r
Ma nu fac tur ed fo r P hil ips fo r
Ph ilip s M
ed ica l S ys tem
s
30 00 Mi nu tem
an Ro ad
An do ver , M
A 0 18 10
Ma de in U. S.A
.
01 23
IPX
1 97 00 85 9
Step Action
1 Slide the Tilt/Swivel mount into the Wall Plate as illustrated by the above
diagram.
2 Make sure the latch snaps into the hole on the upper right-hand corner of the
wallplate.
