Disassembly Procedures
7-10 Disassembly
Rear Case
Disassembly
You must disassemble the rear case to remove the following modules:
• Main PCB
• Patient Monitoring I/O
• SpO
2
• CO
2
• NBP
• Communications
• Power Supply
Caution
Before you remove any module, make sure you are wearing ESD protection and you are
working in a grounded environment.
To disassembly the rear case:
Step Action
1 Verify that the battery has been removed. If not see, “Removing the Battery on
page 7-4.
2 Verify that the recorder has been removed. If not see, “Removing the Optional,
External Recorder on page 7-6. If there is no recorder, unsnap the recorder door

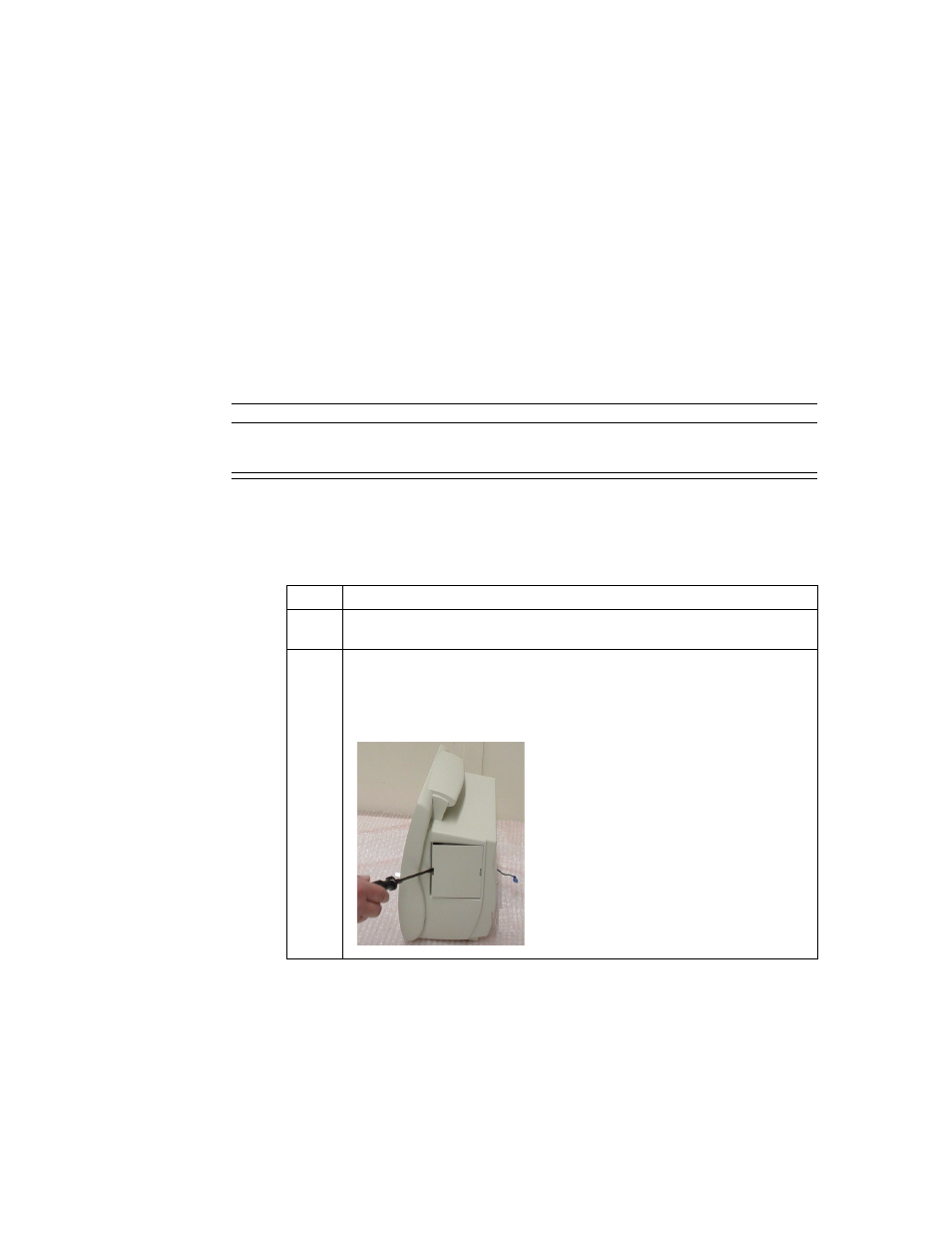

using a flathead screwdriver (see figure below).
