14 Hookups (cont’d)

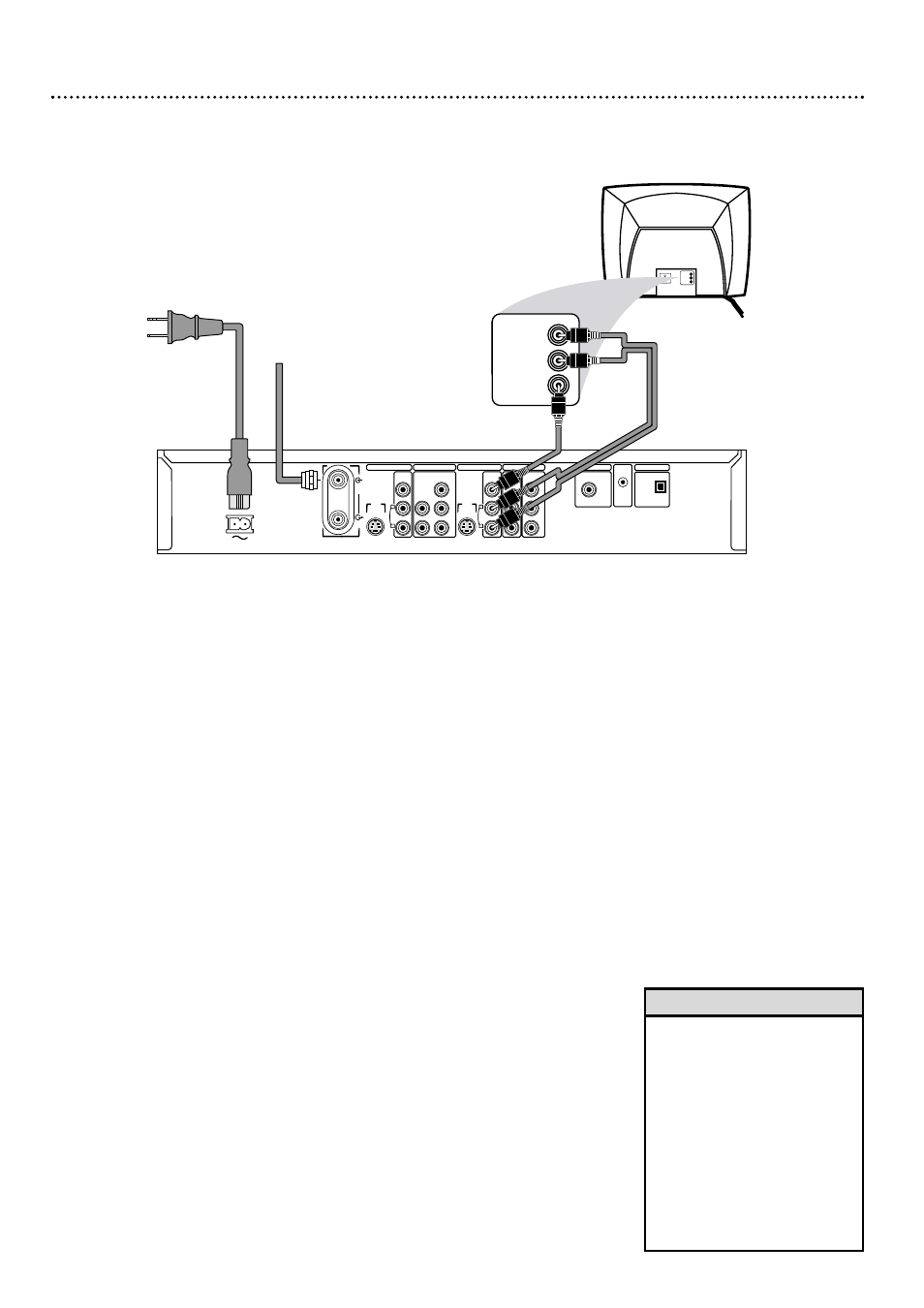

Connecting to a TV Only
TV has a yellow CVBS Video In jack
S-VIDEO
(Y/C)
ANTENNA
TV
S-VIDEO
(Y/C)
VIDEO
(CVBS)
VIDEO
(CVBS)
COMPONENT
VIDEO
AUDIO COMPONENT
VIDEO
AUDIO
Y
P B
P R
Y
P B
P R
IN - EXT 2 IN - EXT 1 OUT 2 OUT 1 480p/480i
COAX OUT
G-LINK DIGITAL AUDIO OUT
OPTICAL OUT
MAINS
AUDIO
L
R
AUDIO
L
R
LEFT AUDIO IN
RIGHT AUDIO IN
VIDEO IN
LEFT AUDIO IN
RIGHT AUDIO IN
VIDEO IN
Antenna
or Cable TV
Signal
DIGITAL AUDIO OUT
1 Connect your Antenna or Cable TV signal to the ANTENNA jack on
the rear of the Recorder.
2 Connect the Recorder’s yellow OUT 2 VIDEO (CVBS) jack to the
VIDEO IN jack on your TV. The supplied video cable has yellow markings.
3 Connect the supplied audio cables to the Recorder’s OUT 2 AUDIO
L/R (left/right) jacks and to the left/right AUDIO IN jacks on the TV.
Audio cables have red and white markings. Match cable colors to jack colors.
4 Connect the supplied power cord to the MAINS ~ (AC Power) jack
on the rear of the Recorder. Connect the power cords of the
Recorder and the TV to a power outlet.
5 Press STANDBY-ON y y on the front of the Recorder to turn it on.
“IS TV ON? CH03” will appear on the Recorder’s display panel the first time
you turn on the Recorder.
6 Turn on the TV. Set the TV to its Audio/Video In channel. It may be
called AUX or AUXILIARY IN,AUDIO/VIDEO or A/V IN, EXT1 or EXT2
or External In, etc. Or, your TV remote may have a button or switch that
selects the Video In channel. This is not channel 3 or 4. See your TV manual
for details. Or, go to your lowest TV channel and change channels down until
you see the DVD background picture or Initial Setup.
Initial Setup will appear the first time you turn on the Recorder. Go to pages 18-20
to complete Initial Setup.
• On the TV, the Video In jack is
usually yellow and might be
labeled video, CVBS, composite,
or baseband.
• To watch TV with the Recorder
off, connect the RF coaxial cable
to the Recorder’s TV jack and to
the RF IN or ANTENNA IN
jack (75 ohm) on your TV. This
lets you watch channels at the
TV when the Recorder is off
and will improve TV reception.
See page 10 for this hookup.
Helpful Hints
