1 Connect your Antenna or Cable TV signal to the ANTENNA jack on
the rear of the Recorder.
2 Connect an S-Video cable (not supplied) to the OUT 2 S-VIDEO
(Y/C) jack of the Recorder and to the TV’s S-VIDEO In jack.
3 Connect the supplied audio cable to the Recorder’s OUT 2 AUDIO
L/R (left/right) jacks and to the left/right AUDIO IN jacks on the TV.
Audio cables have red and white markings. Match cable colors to jack colors.
4 Connect the supplied power cord to the MAINS ~ (AC Power) jack
on the rear of the Recorder.
Connect the power cords of the Recorder and the TV to a power
outlet.
5 Press STANDBY-ON y y on the front of the Recorder to turn it on.
“IS TV ON? CH03” will appear on the Recorder’s display panel the first time
you turn it on.
6 Turn on the TV. Set it to the S-Video In channel, not channel 3 or 4.
(See your TV manual for details. Or, go to your lowest TV channel and change
channels down until you see the DVD background picture or Initial Setup
screens.) Initial Setup will appear the first time you turn on the Recorder. Go to
pages 18-20 to complete Initial Setup.
Hookups (cont’d) 13

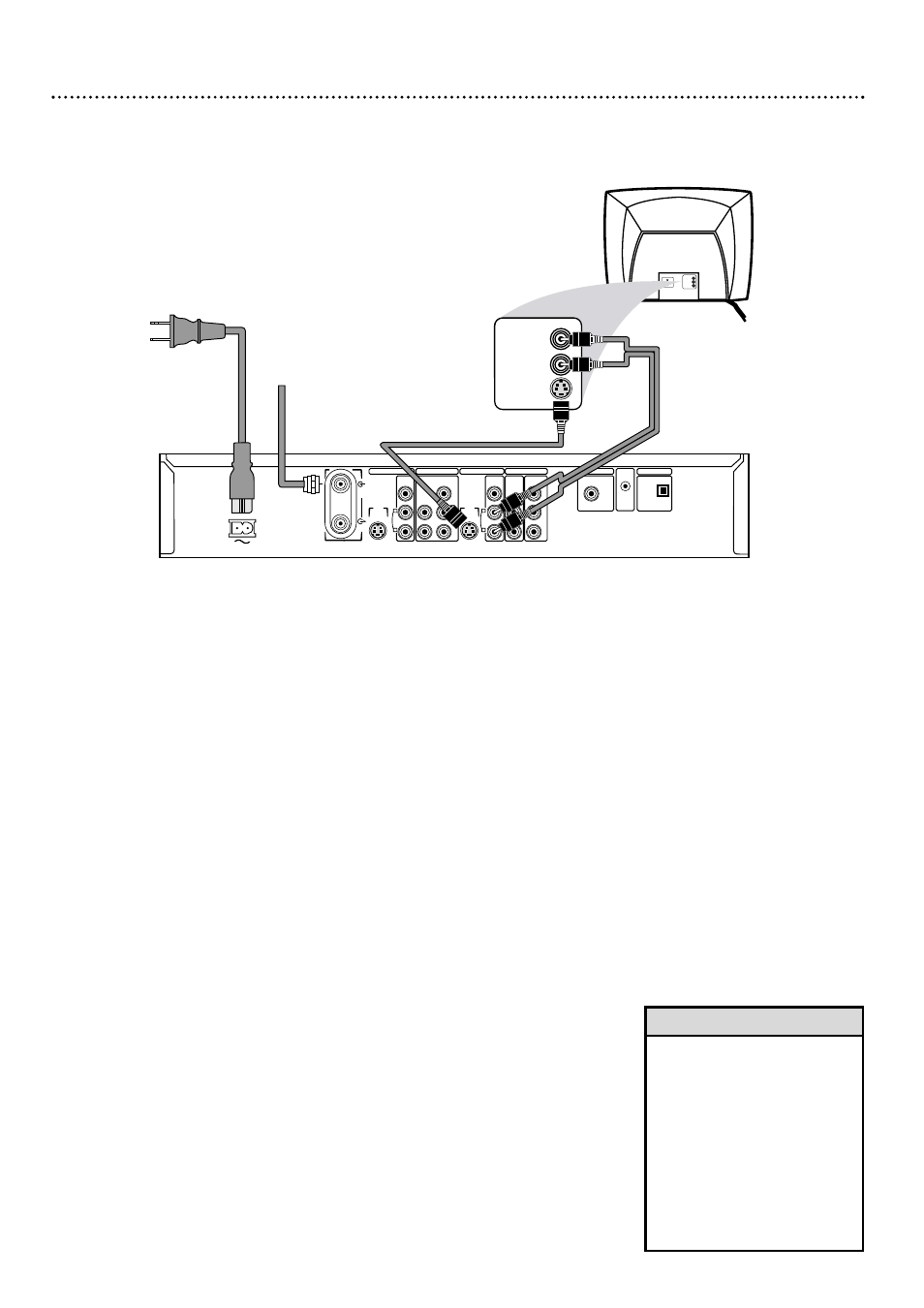

Connecting to a TV Only
TV has an S-Video In Jack
S-VIDEO
(Y/C)
ANTENNA
TV
S-VIDEO
(Y/C)
VIDEO
(CVBS)
VIDEO
(CVBS)
COMPONENT
VIDEO
AUDIO COMPONENT
VIDEO
AUDIO
Y
P B
P R
Y
P B
P R
IN - EXT 2 IN - EXT 1 OUT 2 OUT 1 480p/480i
COAX OUT
G-LINK DIGITAL AUDIO OUT
OPTICAL OUT
MAINS
AUDIO
L
R
AUDIO
L
R
LEFT AUDIO IN
RIGHT AUDIO IN
VIDEO IN
LEFT AUDIO IN
RIGHT AUDIO IN Antenna
or Cable TV
Signal
DIGITAL AUDIO OUT
S-VIDEO IN
• On the TV, the S-Video In jack
may be labeled Y/C, S-Video, or
S-VHS (super video).
• To watch TV with the Recorder
off, connect the RF coaxial cable
to the Recorder’s TV jack and to
the RF IN or ANTENNA IN
jack (75 ohm) on your TV. This
lets you watch channels at the
TV when the Recorder is off
and will improve TV reception.
See page 10 for this hookup.
Helpful Hints
