ENGLISH

33

Getting Started

Adjust the lens shift position so that it is at the home
position (p. 38) before installing or removing the
projection lens.

Note

Remove the dustproof sponge from the lens fitting
of the projector before installing the projection lens.
(Keep the dust-proof sponge in a safe place for later
use if needed.)
After removing the projection lens, install the dust-
proof sponge to the lens fitting of the projector in
order to stop dust from getting inside the projector.

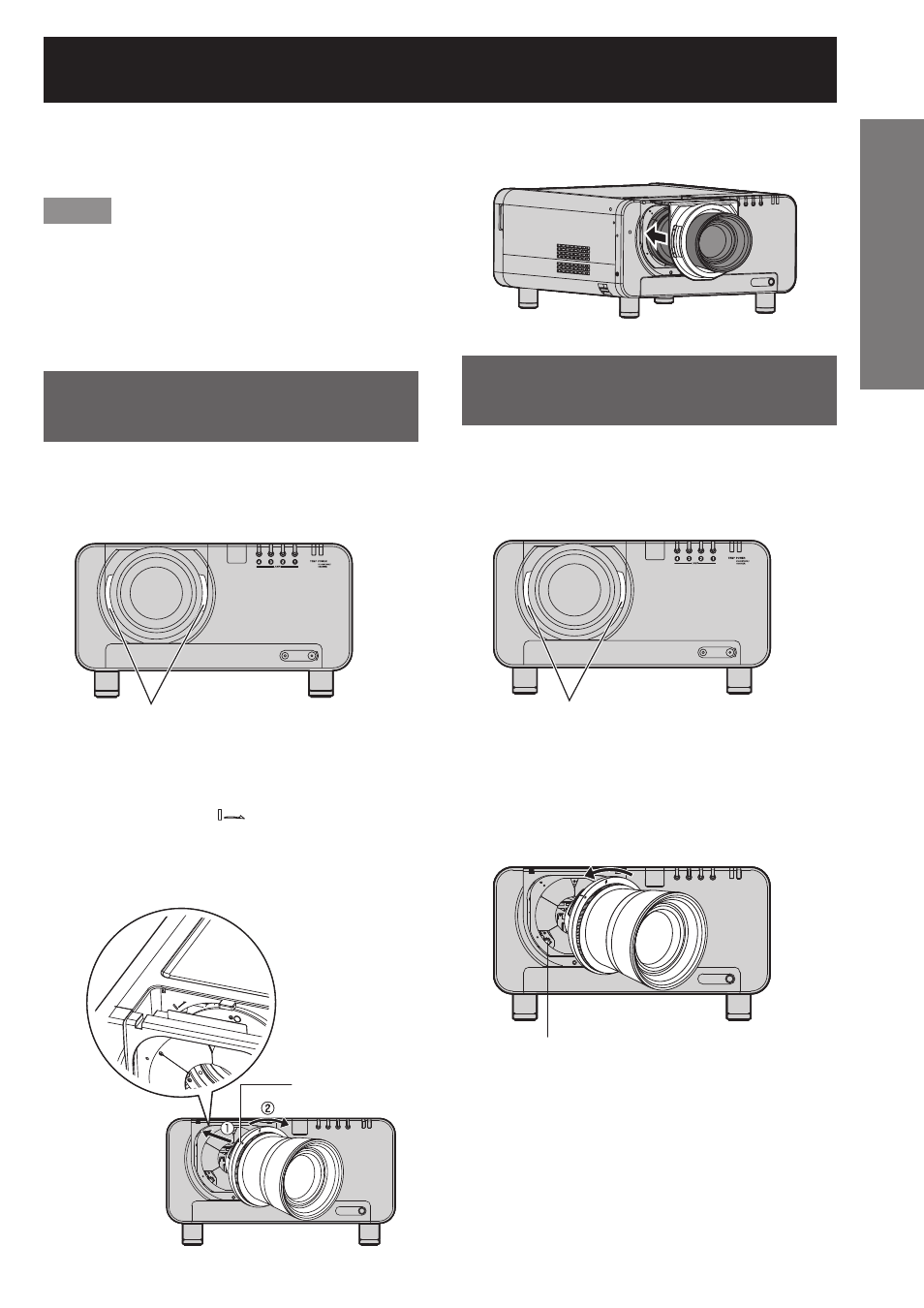

How to install the

projection lens

1. While pressing the projection

lens cover lock button, pull the
cover forward to remove it.

2. Align the mark (orange) on the

projection lens with the mark on
the projector (

), and then insert

the lens and turn it clockwise
until it clicks into place.

FILTER
CLEANING

OPEN

CLOSE

Projection lens cover lock button

FILTER
CLEANING

OPEN

CLOSE

Projection lens cover lock button

Mark (orange)

Mark (orange)

3.

Push the projection lens cover in
until it clicks into place.

How to remove the

projection lens

1. While pressing the projection

lens cover lock button, pull the
cover forward to remove it.

2. While holding down the

projection lens lock button,
turn the projection lens counter
clockwise, and then pull it off.

FILTER
CLEANING

OPEN

CLOSE

Projection lens cover lock button

FILTER
CLEANING

OPEN

CLOSE

Projection lens cover lock button

Projection lens lock button

Projection lens lock button

How to install and remove the projection lens (optional)
