Page 20: English, Installation (continued)

20
– ENGLISH

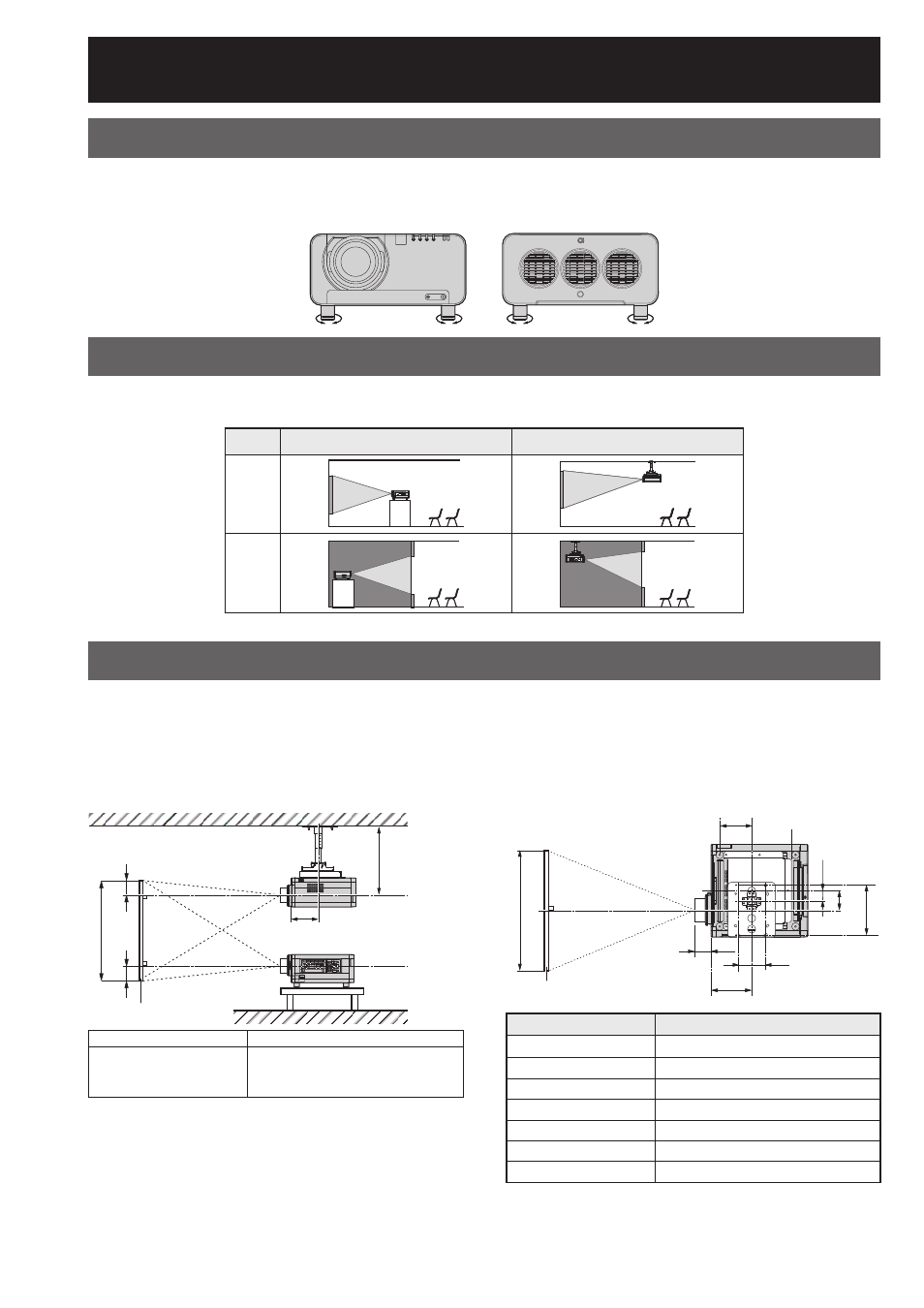

Adjusting the feet
The four adjustable feet mounted at the bottom of the projector are level-adjustable (0 mm–15 mm) which can be
used when the floor surface is not horizontal.
Projection scheme
This projector can use any of the four projection schemes. Select the most suitable scheme to the situation of your
location. Use the OPTION menu on the menu screen to choose the desired projection scheme. (p. 76)
Installation geometry
When planning the projector and screen geometry, refer to the figures below and the information on the next page
for reference. After the projector is roughly positioned, picture size and vertical picture positioning can be finely
adjusted with the powered zoom lens and lens shifting mechanism.
(Front)
(Rear)
(Front)
(Rear)
Floor
Ceiling
Front
Rear
Floor
Ceiling
Front
Rear
Lens
Dimension of L1 (Approx.)
ET-D75LE1
62.5
ET-D75LE2
47
ET-D75LE3
50.5
ET-D75LE4
74.4
ET-D75LE5
150.5
ET-D75LE6
160
ET-D75LE8
202.5
* For PT-D10000E:
H = 0 to SH
For PT-DW10000E:
H = -0.1 × SH to 1.1 × SH
* However, if the ET-D75LE5 has been installed, the value
will be fixed at H=SH/2 for both the PT-D10000E and
PT-DW10000E. If the ET-D75LE6 has been installed,
the values will be H = 0.1 × SH to 0.9 × SH for the
PT-D10000E, and H = 0 to SH for the PT-DW10000E.
L
175
254
L1
200
SW
314
120
66
Top View
(unit : mm)
Screen
254
580.5 - 700.5
H
H
SH
L
L
Side View
(unit : mm)
Screen
L: Projection
distance SW:
width
SH: Height of the image H: Vertical distance between the
lens centre level and the bottom
edge of the projected image
When attaching an optional ceiling
mount bracket (ET-PKD100H)
●
Lens
Dimension of L1 (Approx.)
ET-D75LE1
62.5
ET-D75LE2
47
ET-D75LE3
50.5
ET-D75LE4
74.4
ET-D75LE5
150.5
ET-D75LE6
160
ET-D75LE8
202.5
* For PT-D10000E:
H = 0 to SH
For PT-DW10000E:
H = -0.1 × SH to 1.1 × SH
* However, if the ET-D75LE5 has been installed, the value
will be fixed at H=SH/2 for both the PT-D10000E and
PT-DW10000E. If the ET-D75LE6 has been installed,
the values will be H = 0.1 × SH to 0.9 × SH for the
PT-D10000E, and H = 0 to SH for the PT-DW10000E.
L
175
254
L1
200
SW
314
120
66
Top View
(unit : mm)
Screen
254
580.5 - 700.5
H
H
SH
L
L
Side View
(unit : mm)
Screen
L: Projection
distance SW:
width
SH: Height of the image H: Vertical distance between the
lens centre level and the bottom
edge of the projected image
When attaching an optional ceiling
mount bracket (ET-PKD100H)
●
