14
– ENGLISH

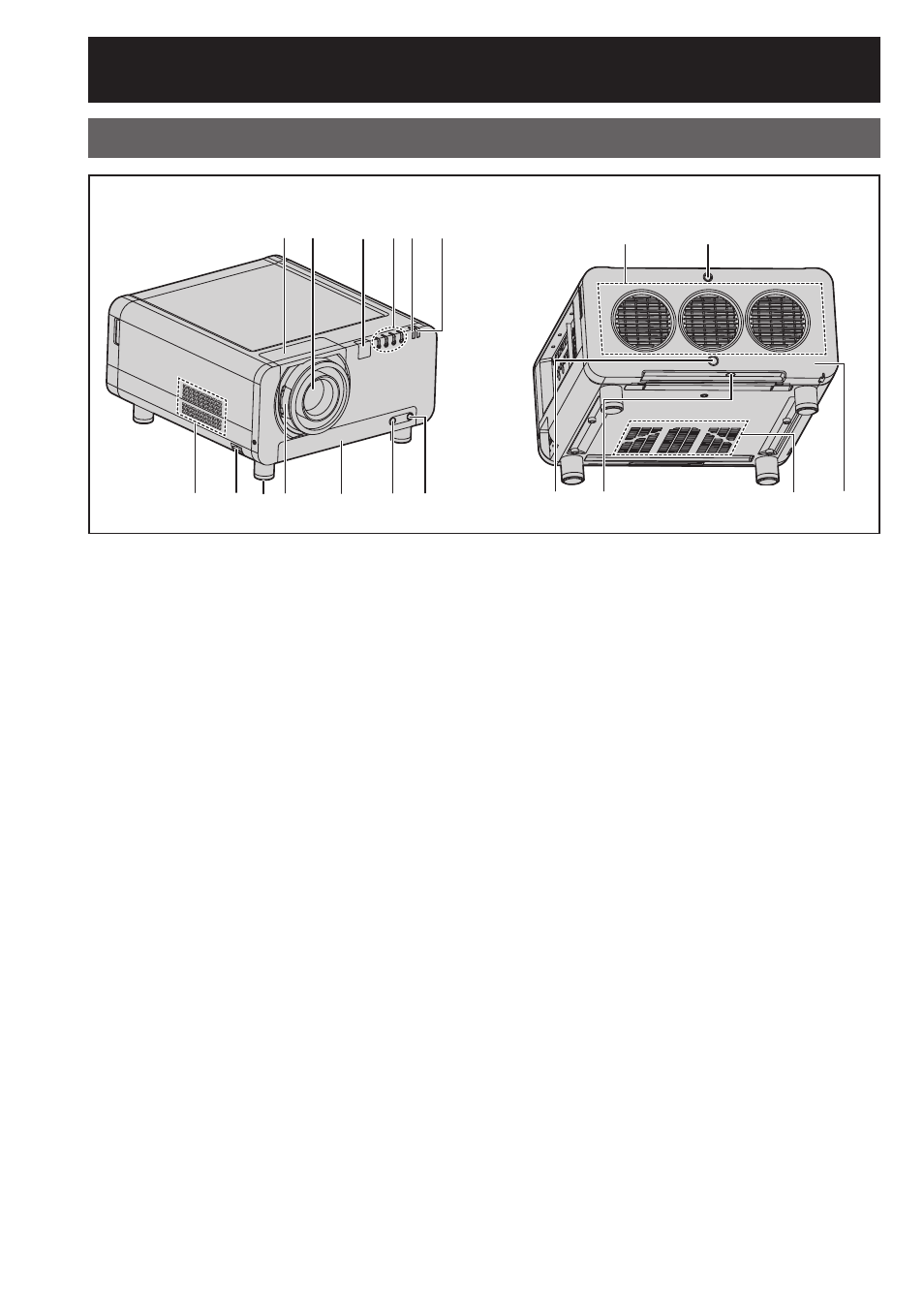

Front
■
Projector Main Unit
Location and function of each part (continued)
Rear
■
$
% & ( )
*
+ - .
/
0
1
#
Projectin lens cover ................................... (p. 33)
$
Projection lens (optional)
Lens for projecting images on the screen.
%
Remote control receiver window (front) .. (p. 17)
This window receives the signal beam emitted from
the remote control.
&
LAMP (LAMP1, LAMP2, LAMP3, LAMP4)
monitor ...................................................... (p. 107)
These light when it is time to replace the lamp unit.
It also blinks if something unusual occurs in the
lamp circuit.
(
Temperature monitor (TEMP) .................. (p. 107)
Lighting or blinking of this lamp indicates an
abnormal condition of the internal temperature.
)
Power indicator lamp ................................. (p. 34)
The lamp lights in red when the MAIN POWER
switch is turned to “ l ” (on). It turns to green when
the POWER ON button of the remote control or the
main unit is pressed.
*
Air exhaust vents
+
Burglar hook
Attach a commercial burglar prevention cable to
this hook port.
-
Adjustable feet ............................................ (p. 20)
Use these feet to adjust the tilt of the projector.
(Adjustable feet are provided at the front and rear,
right and left.)
.
Projection lens cover lock button ............. (p. 33)
This button toggles between lock and unlock of the
detachable cover for the projection lens (optional).
/
Air filter ...................................................... (p. 108)
0
Air filter cleaning monitor ...........(pp. 80-81, 108)
This blinks blue while the air filter is being cleaned.
It lights red when there is a problem with the air
filter.
1
Air filter unit screw ................................... (p. 108)
This is used to secure the air filter cover.
2
Lamp unit cover screw ............................ (p. 111)
This is used to secure the lamp unit cover.
3
Remote control receiver window (rear) .... (p. 17)
This also receives the signal beam coming from
the remote control.
4
Remote control receiver window (bottom)
..................................................................... (p. 17)
This also receives the signal beam coming from
the remote control.
5
Air intake vents
Do not cover this vents.
6
Lamp unit cover ........................................ (p. 111)
The lamp unit is housed.
#
2
*
3
6
4
5
