4.9 Speaker System: PDP-S03-LR
4.9.1 Specifications
External dimensions ................... 74 (W)
×
98 (D)
×
714 (H) mm
1368 (W)
×
103 (D)
×
714 (H) mm (with plasma display monitor PDP-502MX mounted)
Weight ........................................ 2.7 kg (
×
1)
45.7 kg (with plasma display monitor PDP-502MX mounted)
Dimensions of packaging ............ 818 (W)
×
315 (D)
×
171 (H) mm
Weight when packaged .............. 7.6kg
Cabinet ........................................ Closed type, magnetic-shielded design (EIAJ)
Speaker (two way)
Low and mid-range
sounds (woofers) ..... 2 elliptic cones
High (Tweeter) ......................... 2.5-cm dome
Nominal impedance .................... 8
Ω
Playback frequency ..................... 50 to 60,000 Hz
Output sound pressure ............... 84 dB/W (1m)
Permissible input
Maximum output (EIAJ) .......... 12 W
Rated input (EIAJ) .................... 4 W
Crossover frequency ................... 4 kHz
Accessories (for one set of speakers)
.................................................... Speaker cord
×
2 (5 m), Flat head screw
×
4, Hexagonal socket head screw
×
4,
Hexagonal wrench
×
1, Washer M8 (
φ
25)
×
4, Mounting hardware
×
4, Mounting
plate (L and R)
×
1, Warranty card
×
1, Operating instructions
×
1
NOTE
When the speakers are mounted to the sides of the display, you will not be able to use the operation panel on the display.

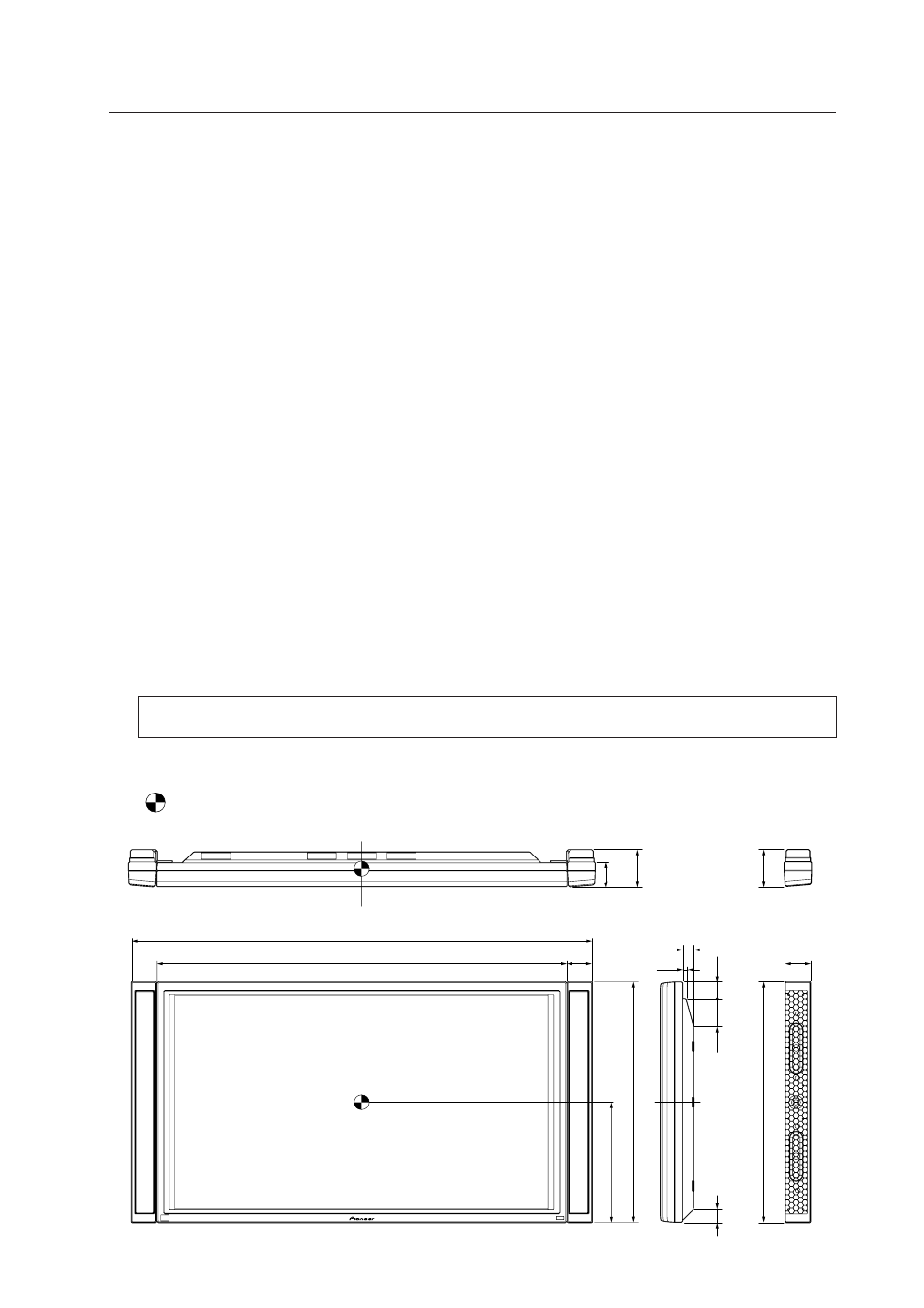

4.9.2 External Dimensions (with plasma display monitor PDP-502MX mounted)
: Center of gravity
(Unit: mm)
65
357
48
85
33
10.5
36.5
714
98
74
