Installation Procedures
1
Ref. No. Terms
Tape
These accessories
shall be packed in
a bag, which then
shall be stuck to 19
(front carton) with
a piece of adhesive
tape.
3.3 Installation Procedures
3.3.1 Transportation precautions
1 Any transportation of the unopened unit in its packaging should be done by two or more persons. To avoid injury
or damage, do not lift the package by its packing bands.
2 When transporting or storing the unit, always position it vertically - never horizontally. Horizontal transportation or
storage invalidates the product warranty
3 In transportation or storage of products in original packing, never stack more than three units high. This warning
is also indicated on the upper face of the carton.
4 For transportation or storage, observe the warnings and instructions on the upper face of the carton.
5 Plasma display is mode off grass. Please take precations to prevent it from being dameged.
3.3.2 Unpacking
The original packing material can be re-used to sofely ship the Plasma Display. When doing so, it is important to use the
material in the same way as when they were originally shipped. Failure to correctly use the material can damage the
display.

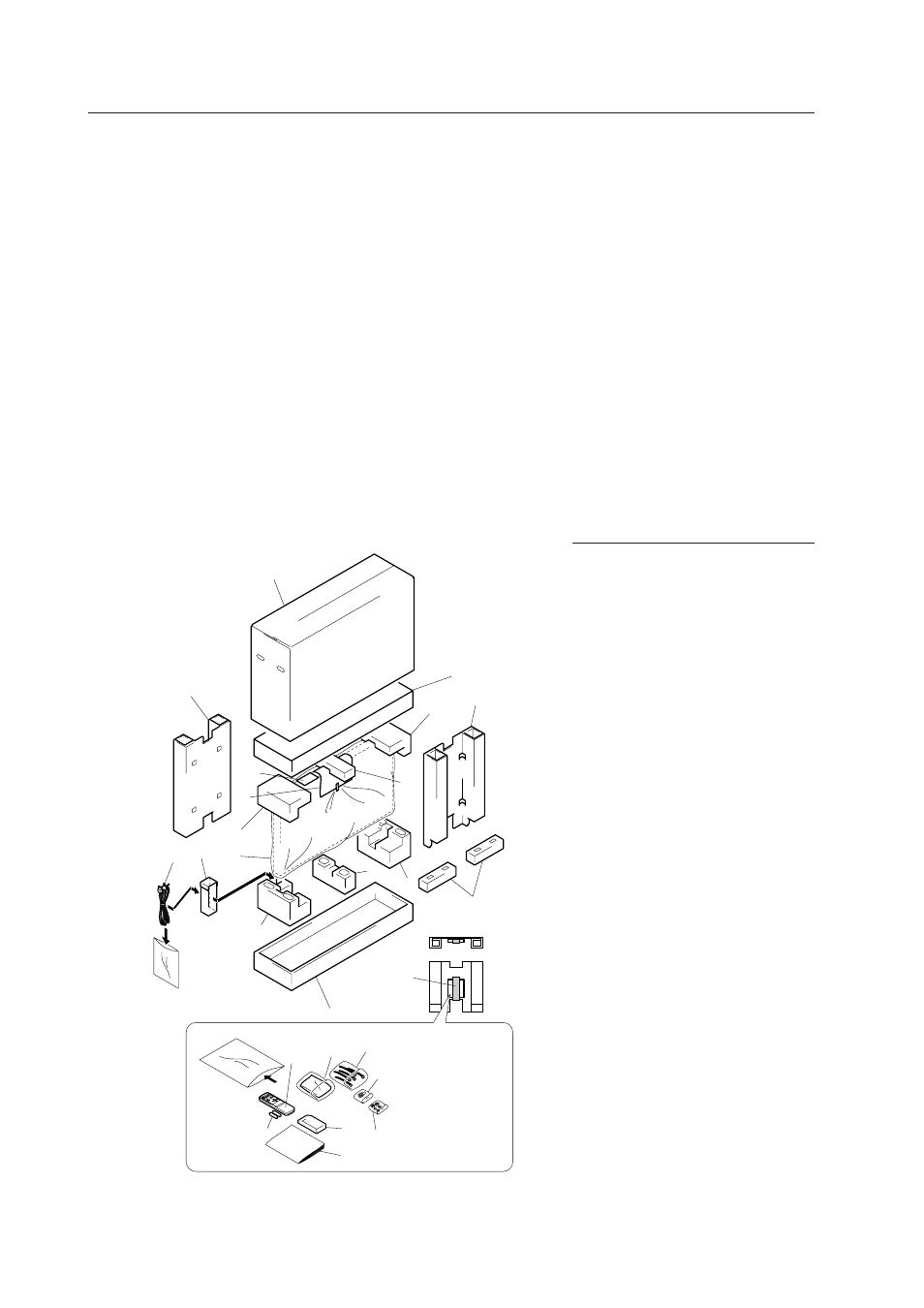

1) Packing specifications: 1341 (W)
×
890 (H)
×
424 (D), 53 kg
20
15
16
4
11
22
10
7
8
9
3
23
5
19
6
2
12
18 17
21
13
24
14
1 Upper face of the carton
2 Carton cover
3 Lower face of the carton
4 Upper pad L
5 Upper pad C
6 Upper pad R
7 Under pad L
8 Under pad C
9 Under pad R
10 Miller mat
11 Power cord
12 Remote control unit (CU-V159)
13 2 manganese AA batteries, R6P
14 Operating instructions
15 Guarantee
16 Warranty card
17 Binder Assembly
18 Wiping cloth
19 Front face of the carton
20 Rear face of the carton
21 Pin/BNC conversion connector
22 Power cord case
23 Display stand case
(with display stand inside)
24 Remote control unit case
25 Bolt, Washer
