69
Tiltable Plasma Display Wall-Mount Hardware: PDK-5006
c
Wall Side
Insert the monitor-
fastening bolt into
the opening in the
wall-suspension
hardware, and lower
it into the cutout.
Tighten the screw from
above to keep the bolt
from working loose.
Display
Tighten the nut.
2. After performing the above step, adjust the installation angle, as discussed on the next page.

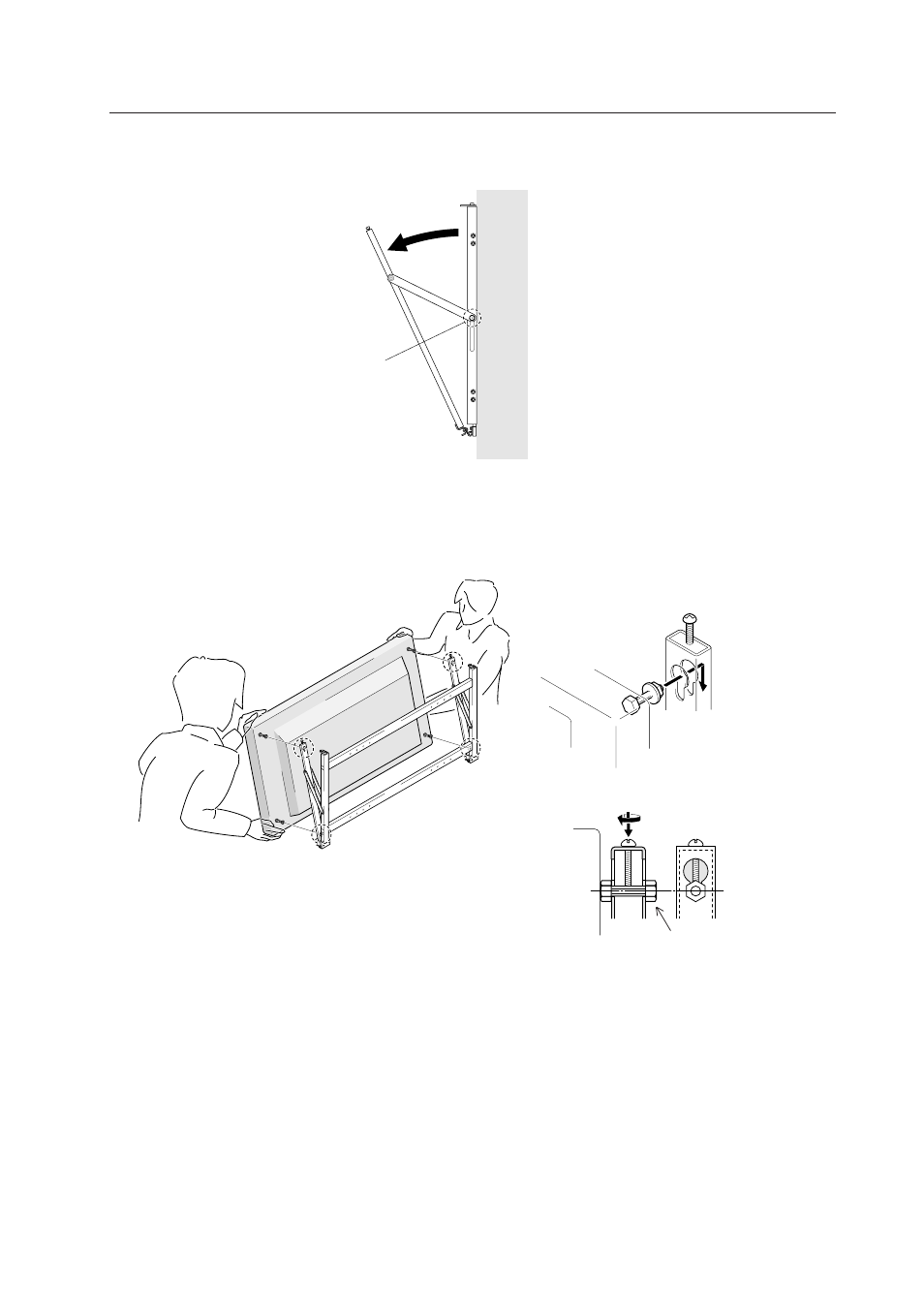

3 Mounting the plasma display
1. Two persons should firmly hold the left and right sides of the display, as shown. Insert four monitor-fastening
bolts into the appropriate openings in the wall-suspension hardware. Insert the two lower bolts before the upper
two.
2. After mounting the mounting hardware to the wall with screws, fully extend the left and right vertical frames as
shown, and tighten the left and right screws ( c).
