4.6.3 Assembly Procedure

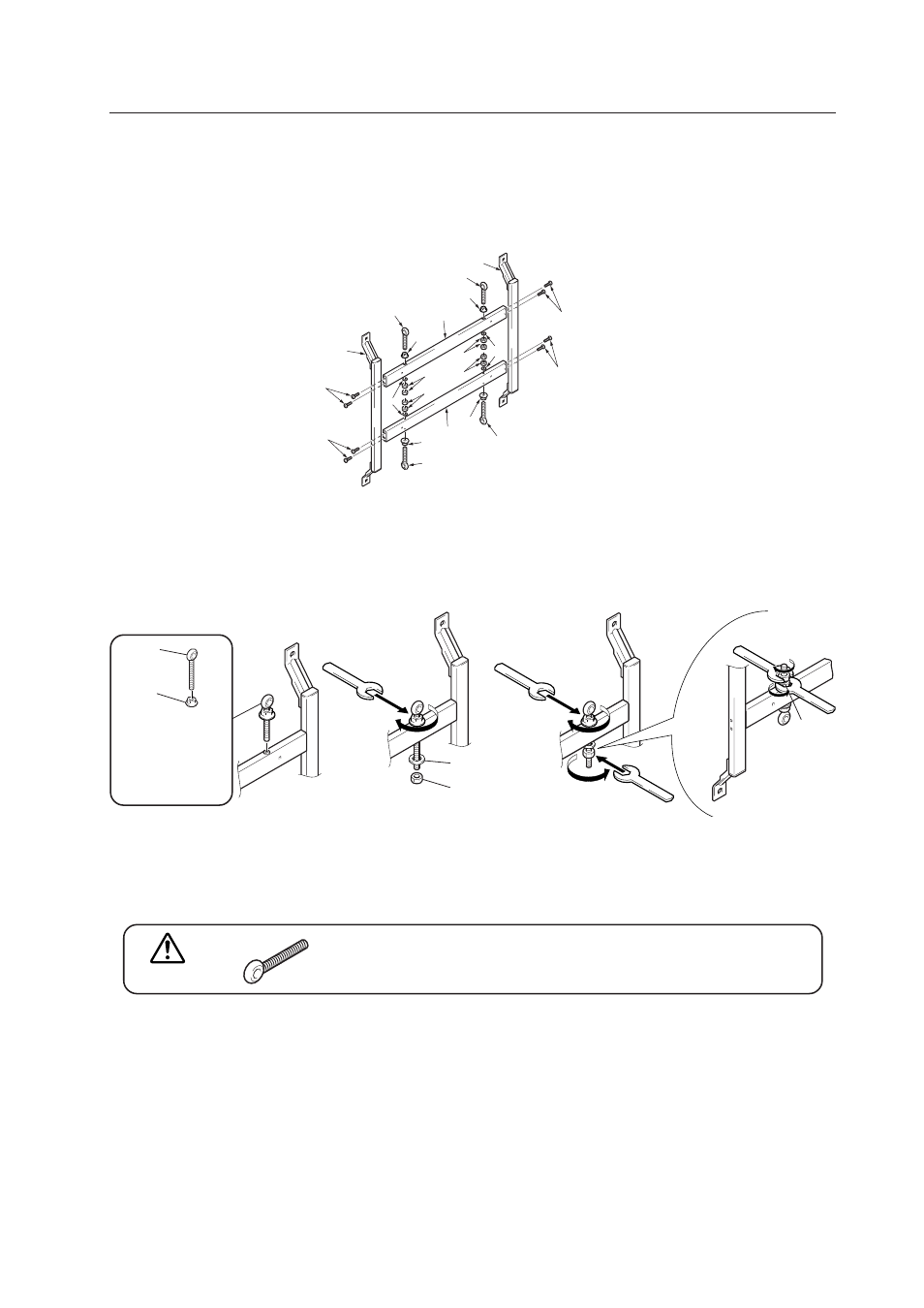

1 Temporarily fasten the vertical a and horizontal b frames using all of the M5 plus/minus screws with washers e.
2 Attach the special eye bolts c to the spring washers h, and insert them into the appropriate holes. Secure the small
flat washers j and nuts g. (For additional safety, use double nuts.)
Never use special eye bolts except in the designated locations.
If they are used on the plasma display itself, internal damage may result.
c
h
Spring washer
hexagonal nut (
× 4)
Insofar as possible,
insert the bolt so that
the nut goes all the
way to its base.
1. Attach the special
eye bolts together
with the M8 nuts to
the main unit.
2. After passing the bolt
through, secure it with
the small flat washer
and nut.
3. Tighten the nuts with
spanners.
4. For additional safety,
use double nuts.
(Tighten the two nuts
against each other.
g
g
j
View from below
PDP Bracket: PDK-5005
CAUTION
a
c
b
c
a
e
e
c
b
c
g
g
g
g
e
e
j
j
h
h
h
h
