Page 23: Connecting your equipment 03
Connecting your equipment
03
23
En

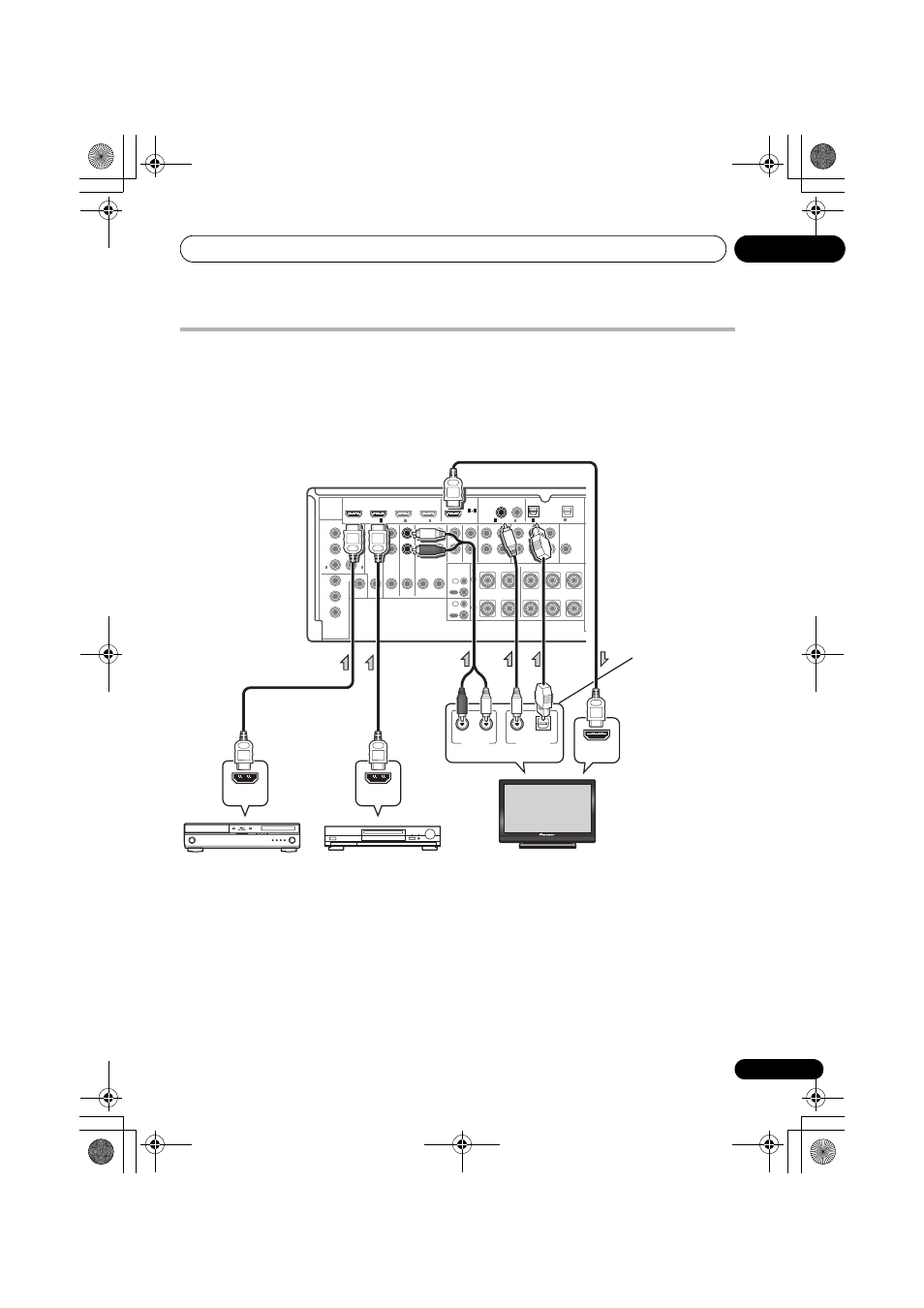

Connecting your TV and playback components
Connecting using HDMI
If you have an HDMI or DVI (with HDCP) equipped component (Blu-ray disc player, etc.), you can
connect it to this receiver using a commercially available HDMI cable.
If the TV and playback components support the Pioneer KURO LINK feature, the convenient KURO
LINK functions can be used (see
• When connecting a Blu-ray disc player,
connect the player to the receiver’s
BD IN
terminal.
• The
HDMI indicator lights on the front
panel when an HDMI-equipped
component is connected.
• For input components, connections other
than HDMI connections are also possible
(see
Connecting your DVD player with no
• If your Blu-ray disc player offers multi-
channel analog audio outputs, see
Connecting the multichannel analog inputs
on page 28.
ASSIGNABLE
ASSIGNABLE
ASSIGNABLE
ASSIGNABLE
HDMI
DIGITAL
AUDIO
COAXIAL
SUBWOOFER
SUBWOOFER
CD-R
CD
OUT
IN
DVR
OUT
IN
IR
R
L
L
R
FRONT
CENTER
SURROUND
CON-
TROL
IN
AUX
IN
DVD
IN
MONITOR
OUT
VIDEO
COMPONENT
VIDEO
TV
/
SAT
IN
ZONE2
AUDIO
OUT
L
Y
PB
PB
PR
Y
PB
PR
PR
Y
R
FRONT
CENTER SURROUND
OPTICAL
PRE OUT
SPEAKERS
MULTI CH IN
BD IN
IN
IN
OUT
IN
OUT
1
IN
1
IN
2
IN
OUT
2
IN
3
IN (DVD)
(DVD)
(DVR)
1
IN (TV/SAT)
1
IN (CD)
2
IN (DVR)
2
3
1
A
HDMI IN
HDMI OUT
HDMI OUT
DIGITAL OUT
COAXIAL OPTICAL
ANALOG
R
L
AUDIO OUT
Other HDMI/DVI-
equipped component
HDMI/DVI-compatible
Blu-ray disc player
VSX-1019AH
HDMI/DVI-compatible monitor
or flat panel TV
Select one
This connection is
required in order to
listen to the sound of
the TV over the receiver.
