- 75 -
5.4.10 SNMP
Allow to management the WGSD-1020 through the Simple Network Management Protocol (SNMP)
It provides protocol that governs the transfer of information between management stations (PC with
SNMP software) and agent (switches). The management Information Base (MIB) is installed correctly
on the management station.

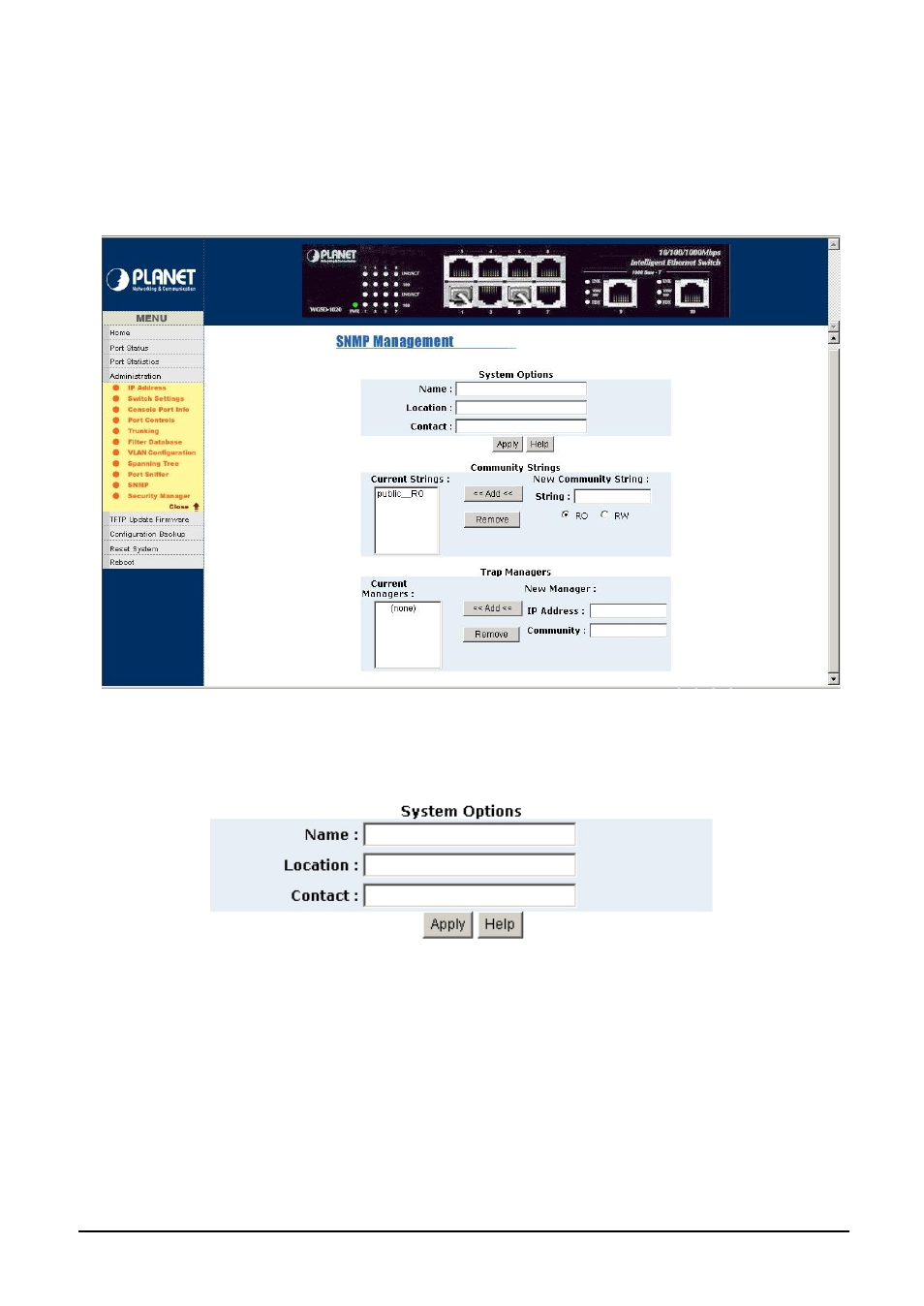

Figure 5-41 WGSD-1020 SNMP Management Web Page screen
Use this page to define the management stations as trap managers and key in SNMP community strings. It
also allows user to define a name, location and contact person for the WGSD-1020. Fill in the system options
data and click
“Apply” to update the change of this page.
Figure 5-42 System Options Web Page screen
Please check the detail description of parameters as below:
Name: enter the system name for this Switch.
Location: enter the location of this Switch.
Contact: enter the name of system administrator. Then click “Apply” to take effect.
Community strings serve as password and can be entered as following screen:
