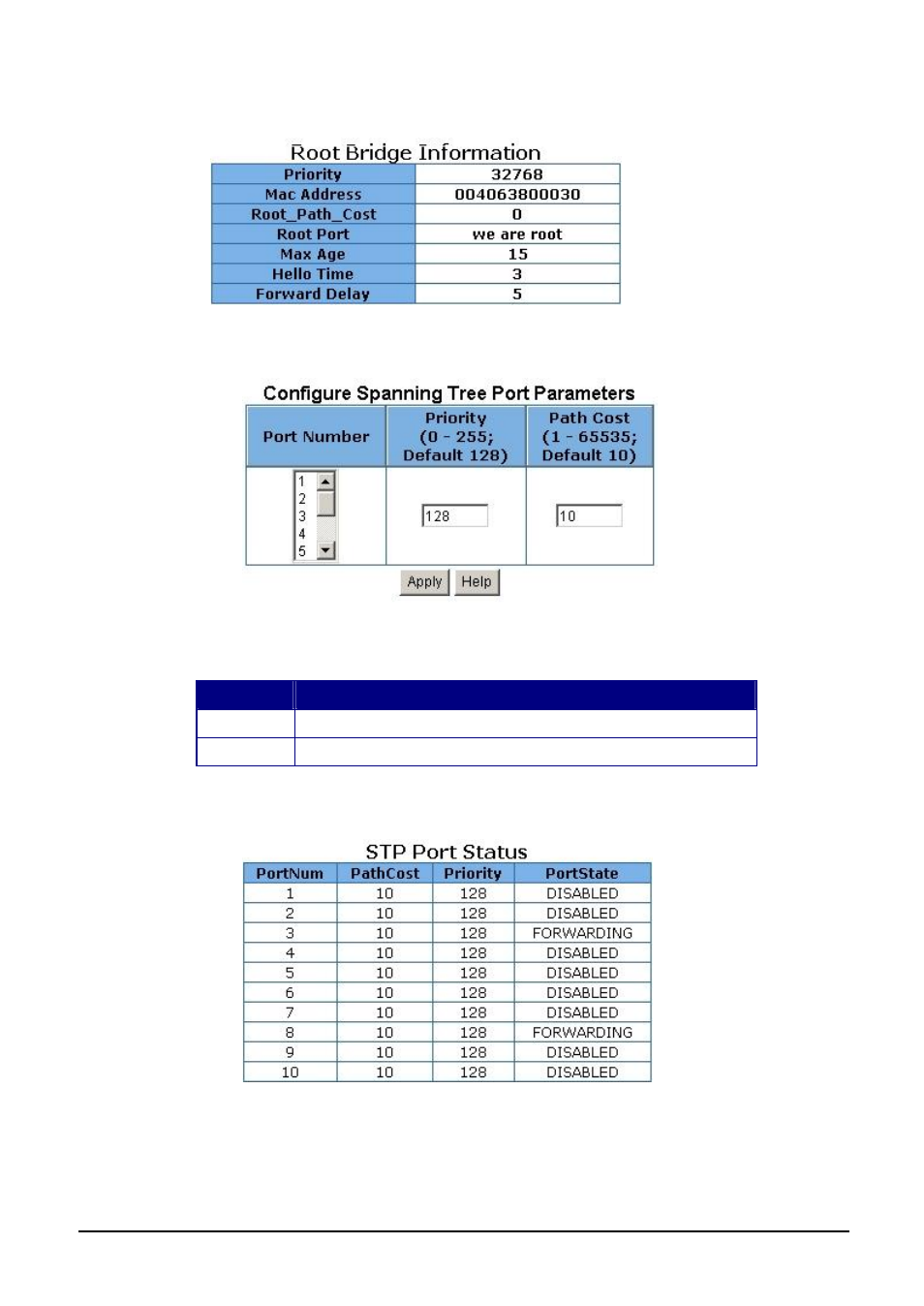

You can view the spanning tree information about Root Bridge. The screen is shown as below:
Figure 5-35 Root Bridge Information Web Page screen
The following parameter can be configured of per port, after you setup completed. Please click “Apply”
button to modify.
Figure 5-36 Configure Spanning Tree Parameters of each port Web Page screen
Please refer to Table 5-2 for per port Spanning Tree Parameters detail description.
Parameter Description
Port Priority Allow to set port priority of per port. The priority range is 0 to 255.
Path Cost Allow to set port cost of per port. The path cost range is 1 to 65535
Table 5-2 Per port Spanning Tree Parameters detail description
You can view spanning tree status about the Switch. The screen is shown as below:
Figure 5-37 STP Port Status Web Page screen
You can click ” Help” button; the following screen in Figure 5-38 appears.
