2 create a vlan group – Planet Technology WGSD-1020 User Manual
Page 26
- 22 -

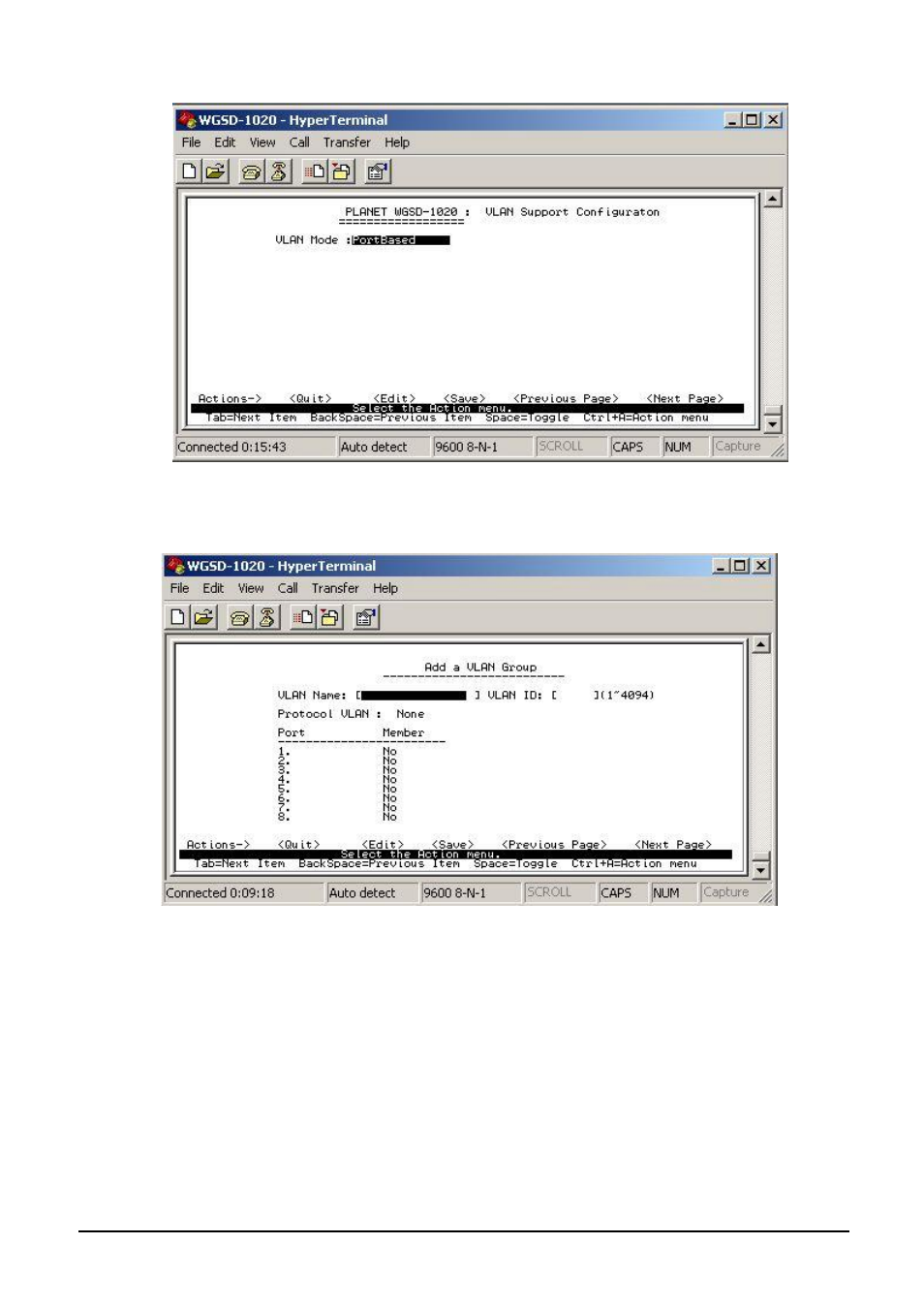

Figure 4-25 Port-based VLAN screen
4.3.2.4.2 Create a VLAN Group
To add a VLAN group, the VLAN ID range is 1-4094.
Figure 4-26 Add a VLAN Group screen
Add a VLAN Group procedure:
1.
Press
“ Edit” to input the VLAN name and VLAN ID.
2.
Choose different VLAN protocol through the space bar.
3.
Under 802.1Q and 802.1Q VLAN mode. Set Tagged, Untagged or no (not belong to any
VLAN group) of each port.
4. Under Port-based VLAN mode. Set Member or no (not belong to any VLAN group) of each port.
5. Press
“Ctrl-A” and choose “Save” to save the current configuration.
