6 filter database – Planet Technology WGSD-1020 User Manual
Page 66
- 62 -
5.4.6 Filter Database

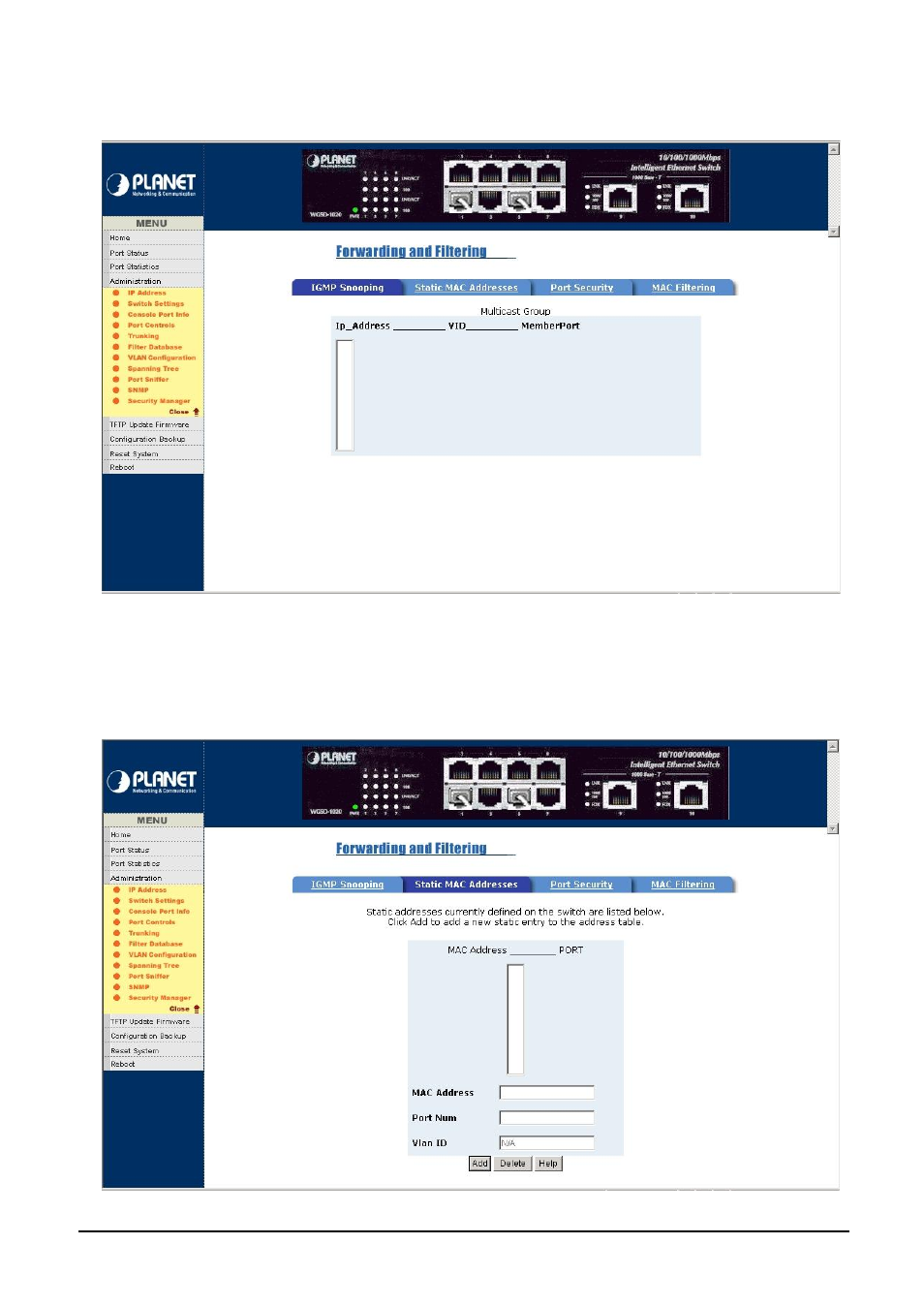

Figure 5-20 WGSD-1020 IGMP Snooping Web Page screen
Please check the detail description of parameters as below:
IGMP Snooping: WGSD-1020 support IP multicast and allow enable IGMP protocol on Switch setting ad-
vanced page from the web interface. This web page provide IGMP Snooping information,
you can see different multicast group, VID and member port. Please note the IP multicast
address range is from 224.0.0.0 to 239.255.255.255.
Figure 5-21 WGSD-1020 Static MAC Address Web Page screen
