9

Maintenance

Inspect ignition and flame sense

electrodes

1. Remove the ignition and flame sense electrodes from the

boiler heat exchanger access cover.

2. Remove any deposits accumulated on the ignition/flame

sense electrode using sandpaper. If the electrodes cannot
be cleaned satisfactorily, replace with new ones.

3. Replace ignition/flame sense electrode, making sure

gasket is in good condition and correctly positioned.

Check ignition ground wiring

1. Inspect boiler ground wire from the heat exchanger

access cover to ground terminal strip.

2. Verify all wiring is in good condition and securely

attached.

3. Check ground continuity of wiring using continuity

meter.

4. Replace ground wires if ground continuity is not

satisfactory.

Check all boiler wiring

1. Inspect all boiler wiring, making sure wires are in good

condition and securely attached.

Check control settings

1. Set the SMART SYSTEM control module display to

Parameter Mode and check all settings. See Section 1 of
Outdoor Knight Boiler Service Manual. Adjust settings
if necessary. See Section 1 of the Outdoor Knight Boiler
Service Manual for adjustment procedures.

2. Check settings of external limit controls (if any) and

adjust if necessary.

Perform start-up and checks

1. Start boiler and perform checks and tests specified in

Section 7 - Start-up.

2. Verify cold fill pressure is correct and that operating

pressure does not go too high.

Check burner flame

1. Inspect flame through observation window.

2. If the flame is unsatisfactory at either high fire or low fire,

turn off boiler and allow boiler to cool down. Remove the
burner and clean it thoroughly using a vacuum cleaner or
compressed air. Do not use compressed air to clean burner
if performed inside a building.

3. Remove the burner, reference FIG. 9-2 below.

4. When replacing the burner, ensure gasket is in good

condition and positioned correctly (FIG. 9-2).


AIR / GAS ARM

SCREWS
(QTY. 5)

GASKET

BURNER

HEAT EXCHANGER
ACCESS DOOR

INSULATION

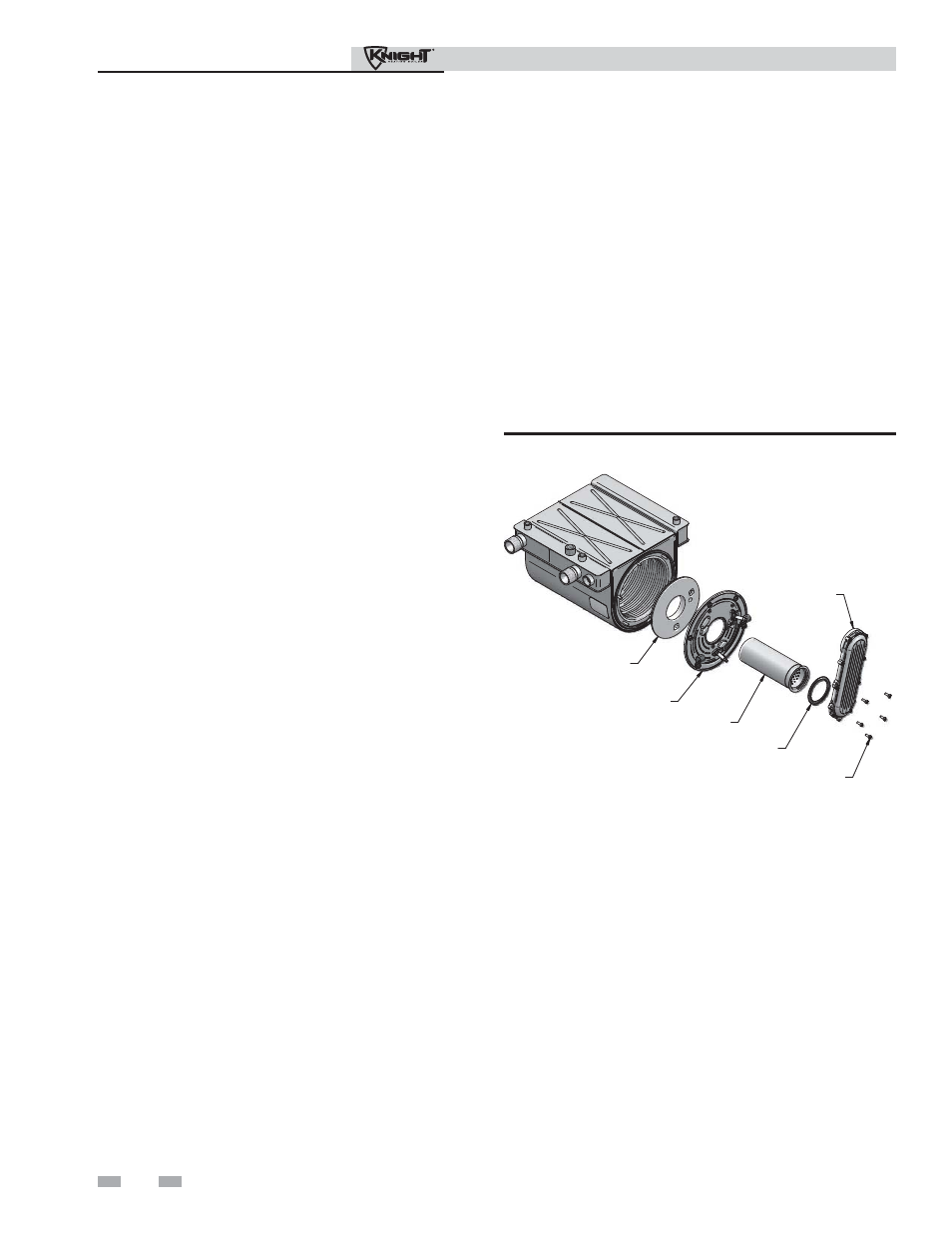

Figure 9-2 Burner Assembly

52

Check flame signal

1. At high fire the flame signal shown on the display should be

at least 10 microamps.

2. A lower flame signal may indicate a fouled or damaged

flame sense electrode. If cleaning the flame sense electrode
does not improve, ground wiring is in good condition, and
ground continuity is satisfactory, replace the flame sense
electrode.

3. See Section 3 - Troubleshooting of the Outdoor Knight

Boiler Service Manual for other procedures to deal with
low flame signal.

Outdoor Knight Boiler Installation & Operation Manual
