Linksys WRVS4400N - Manual (Page 65)

57 Chapter 6: Setting Up and Configuring the Router
Firewall Tab
Wireless-N Gigabit Security Router with VPN
Service
This screen allows users to define new service types based on TCP or UDP. The new service will be added to the
summary table below. It will also show up in the service drop-down menu under Edit IP ACL Rule screen.
Name: Define the new service name. The service name must be different from existing pre-defined or
user-defined services.
Type: The service can rely on UDP only, TCP only, or both UDP and TCP.
Start Port: Enter the starting port number.
Finish Port: Enter the finishing port number. The finishing port number must be greater or equal to starting port
number.
Save button: Click this button to save a new defined service.
Delete button: To delete an existing service, click the Edit button at the end of each row in the summary table.
Edit button: Use this button to select a service to modify or delete.

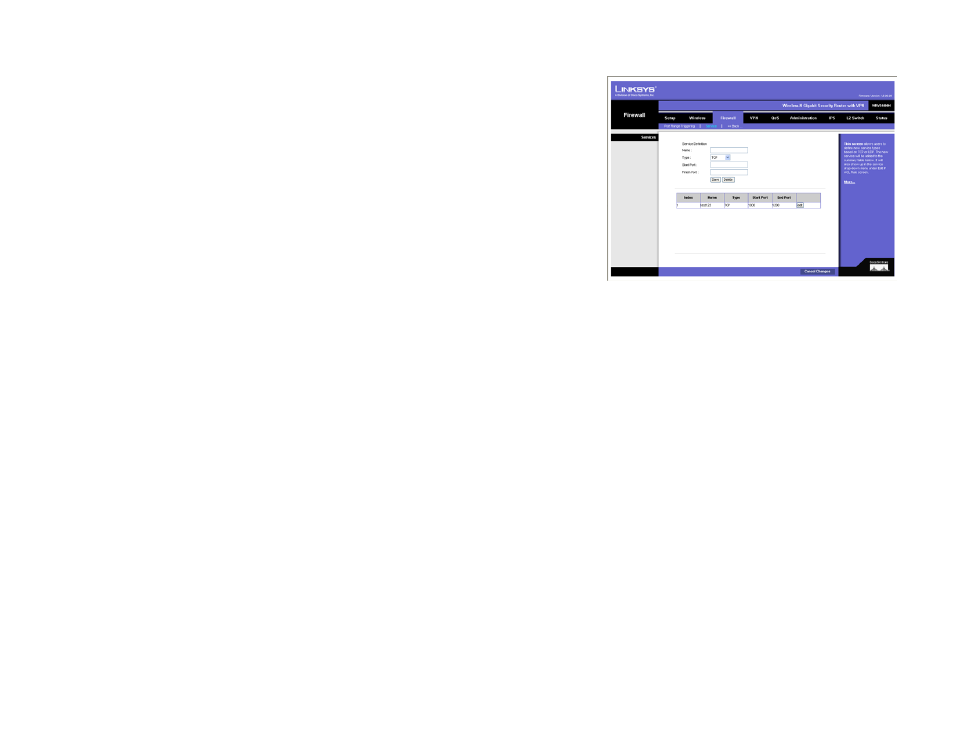

Figure 6-40: Firewall - Services
