19 Chapter 5: Connecting the Router
Placement Options
Wireless-N Gigabit Security Router with VPN
Wall-Mount Option
You will need two suitable screws (See Figure 5-7) to mount the Router. Make sure the screw size can fit into the
criss-cross wall-mount slots.
1. On the Wireless Router’s back panel are two criss-cross wall-mount slots.
2. Determine where you want to mount the Wireless Router, and install two screws that are 2-9/16 in (64.5mm)
apart.
3. Line up the Wireless Router so that the wall-mount slots line up with the two screws.
4. Place the wall-mount slots over the screws and slide the Wireless Router down until the screws fit snugly into
the wall-mount slots.
Now that the hardware installation is complete, proceed to “Chapter 6: Setting up and Configuring the
Wireless-N Router,” for directions on how to set up the Wireless-N Router."

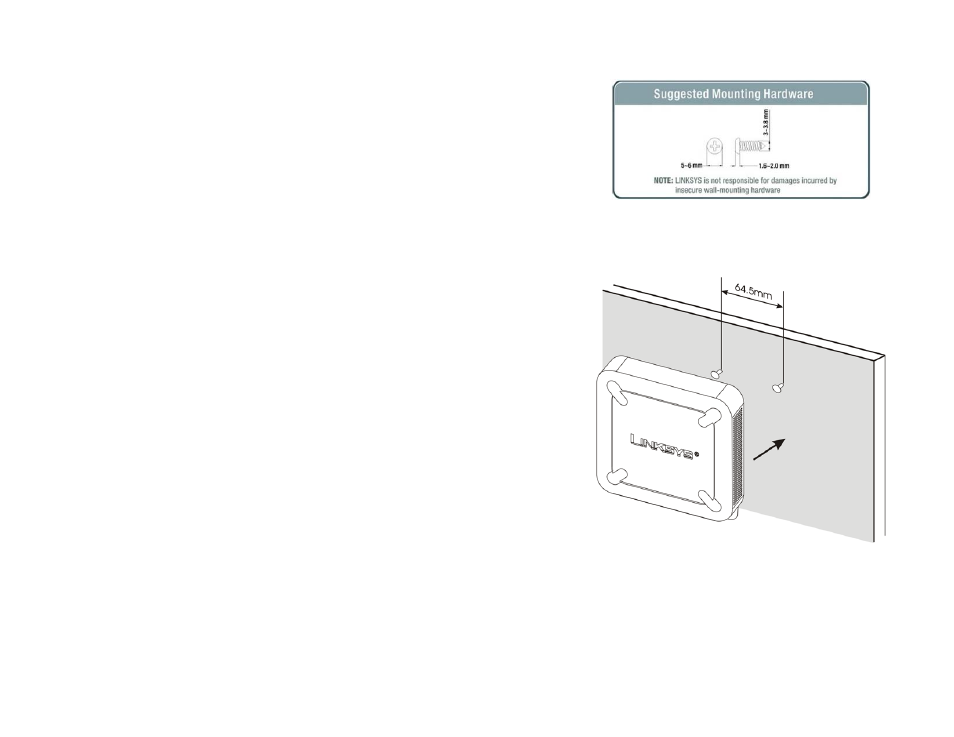

Figure 5-7: Mounting Dimensions
Figure 5-8: Wall Mounting Hardware
