Page 23
15
Chapter 4: Getting to Know the Router
Antennas and Positions
Wireless-N Gigabit Security Router with VPN
Antennas and Positions
The Access Point can be placed in three different positions. It can be either stackable, standalone, or wall-mount.
Antenna
The Access Point has three non-detachable 2dBi omni-directional antennas. The three
antennas have a base that can rotate 90 degrees when in the standing position. The
three antennas will all be used to support 2X3 MIMO diversity in wireless-N mode.

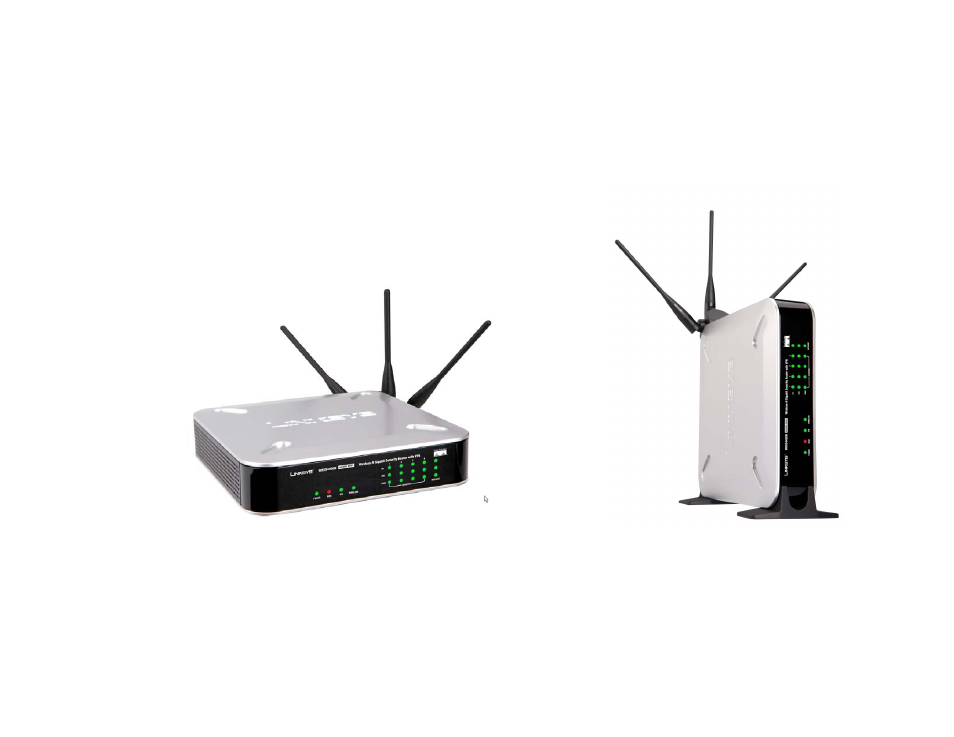

Figure 4-3: Stackable Position and its Antenna Setup
Figure 4-4: Standalone Position and its Antenna Setup
