Setup
Items you need for installation
2-2
CellPipe™ 20 Series User’s Guide
•
Power supply
•
Warranty card
Note:
All CellPipe units are shipped with a power supply. However, European users
need to purchase an additional wall-outlet cable because of regional variations in wall
outlets. Please check with your sales representative for the item specific to your unit.

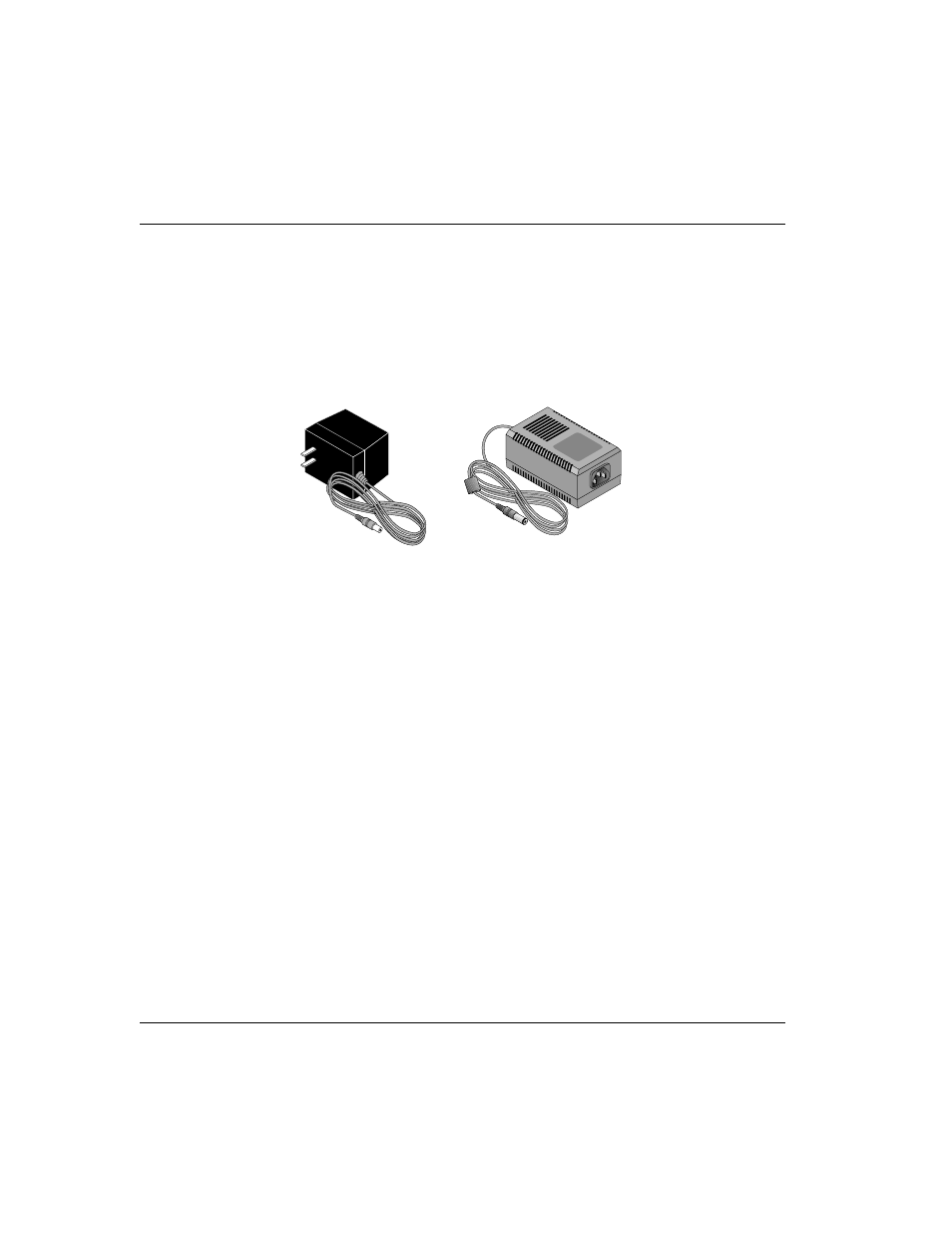

Figure 2-1. Power supplies
Items you need for installation
In addition to the items provided with your CellPipe unit, you will also need the
following item:
•
An ethernet network interface card (NIC) for your PC
Connecting CellPipe 20 Series products
Figure 2-2 on page 2-3 shows the rear panel for each model. There are many
similarities between the units and the procedure for connecting the units are quite
similar as well.
U.S., Asia, Australia
power supply
European
power supply
