Locke MP - Manual (Page 9)

REF. PART QTY DESCRIPTION
NO. NO.
98773
1 Replacement Spindle Assy.
(Items 1-13)
1 9162000 1 Lock Nut 5/8”
2 20748 1 Flatwasher 5/8”
3 95752 1 Upper Sheave
4 96165 1 Lower Sheave
5 95764 2 Bearing, Inner Shaft
6 95757 1 Shaft, Inner
7 88753 1 Woodruff Key 606
8 94953 2 Bearing, Outer Shaft
9 96162 1 Shaft, Outer
10 92924 1 Hub, Machined
11 96161 1 Blade Carrier
12 44040 1 Washer, Heavy Duty
13 44506 1 HHCS 1/2”-20 UNF x 1-3/4”
14 50026133 1 Bearing Kit
1 3
4 2 3
4

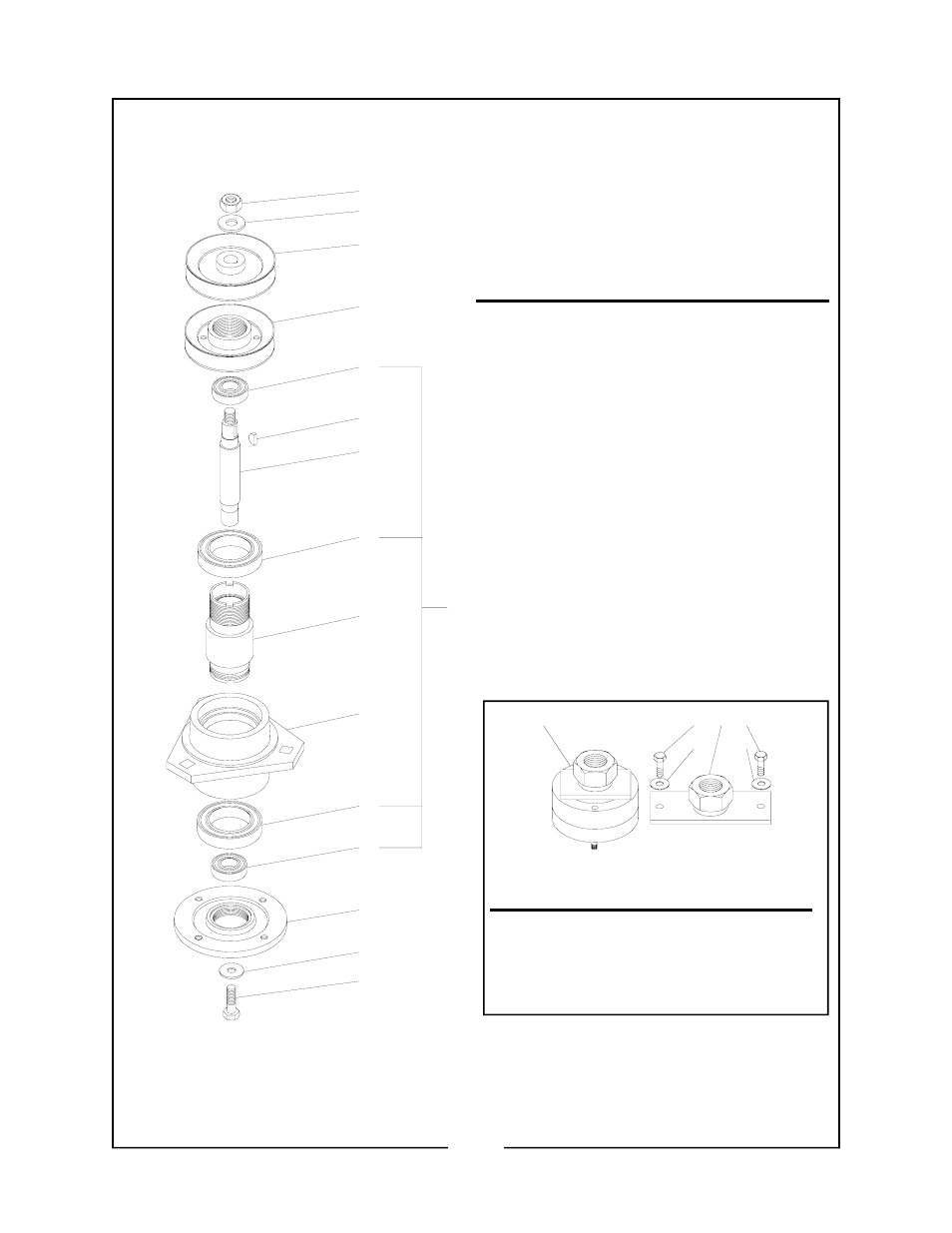

Blade Spindle
MP
REF. PART QTY DESCRIPTION
NO. NO.
1 50026084
1 Wrench Weldment
2 50026086 1 Sheave Wrench Weld.
3 44174 2 HHCS 3/8” x 1-3/4” Gr.5
4 15915 2 Flatwasher 3/8”
1
2
3
4
5
6
7
8
9
10
8
5
11
12
13
14
2-3
