Shielding, center transfer gearbox – Locke MP User Manual
Page 13
5
7
9
10
5
6
3
8
2
4
1
REF. PART
QTY DESCRIPTION
NO. NO.
1 44394
4
HHCS M12 x 1.75 x 30
2 70925
1 Plug
3 50024786
1 Shield
w/
Decals
4 50018614
1 Shield
Mount
Weldment
5 50012615
2 Decal,
Warning
6 82617
1 Decal,
Warning
7 82618
1 Decal,
Warning
8 44200
4 Lockwasher,
M12
9 20054
2 HHCS
1/2”
x
1”
10 15806
2 Lockwasher
1/2”

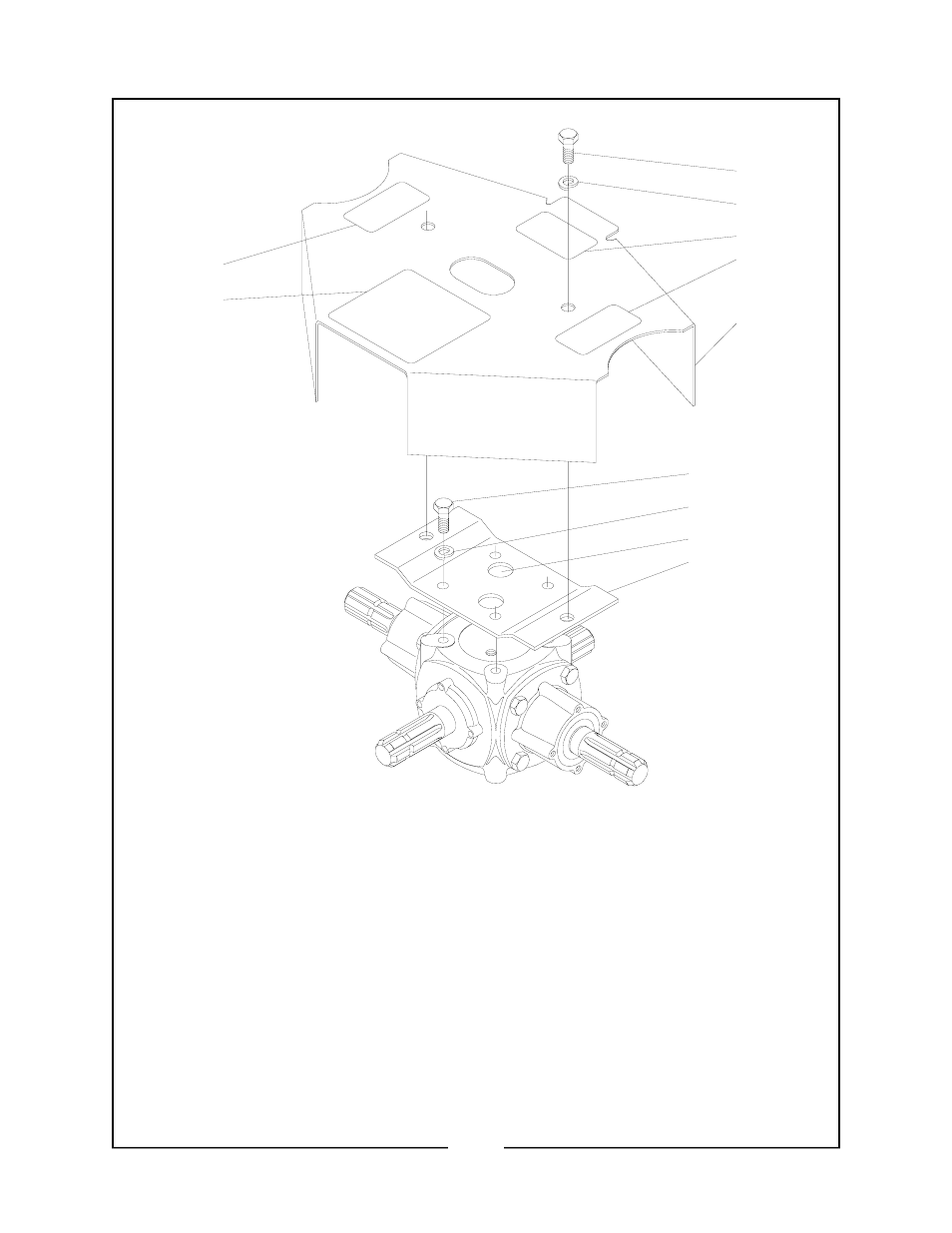

Shielding, Center Transfer Gearbox
MP and FP
3-3
