Locke MP - Manual (Page 20)

15
23
20
17
15
14
16
28
24
27
25
26
8
24
25
26
19
30
29
31
5
21
17
32
33
5
17
31 5
30
29
5
18
22
2
3
12
13
12
13
1
5 6
3
7
4
9
11
10
REF. PART QTY DESCRIPTION
NO. NO.
1 50017830 1 Valve Body
2 25H42303 1 O-Ring Plug
3 53340 6 Straight Thread Adaptor
4 50017834 1 Check Valve
5 14-40-98 7 Elbow 90°
6 53341 1 Straight Thread Adaptor
7 62006 3 Plug Assembly
8 97666 1 Bracket, Valve
9 50017007 1 Shield Weldment
10 15918 2 Flatwasher 1/4”
11 2 HHCS 1/4” x 2-3/4”
12 15905 2 Lockwasher 1/4”
13 15531 2 Hex Nut 1/4”
14 25D25683 1 Adaptor
15 25H43870 2 Coupler
16 61469 1 Hydraulic Hose 72”
REF. PART QTY DESCRIPTION
NO. NO.
17 53329 3 Hydraulic Hose 72”
18 25H41710 1 Hydraulic Hose 21”
19 25H46123 1 Hydraulic Hose 37”
20 94878 1 Safety Tag
21 62430 1 Hydraulic Hose 48”
22 25H41146 1 Hydraulic Hose 31”
23 24-6-434 1 Straight Adaptor
24 20947 2 HHCS 5/8” x 2”
25 19486 2 Lockwasher 5/8”
26 15509 2 Hex Nut 5/8”
27 15925 1 Flatwasher 5/8”
28 12031 1 Hose Holder
29 95425 2 Clevis Pin
30 63633 4 Hair Pin
31 99564 2 Hydraulic Cylinder, Wing
32 50017492 1 Hydraulic Cylinder, Rear
33 50015044 1 Restrictor Union 9/16”-18
JIC M/F

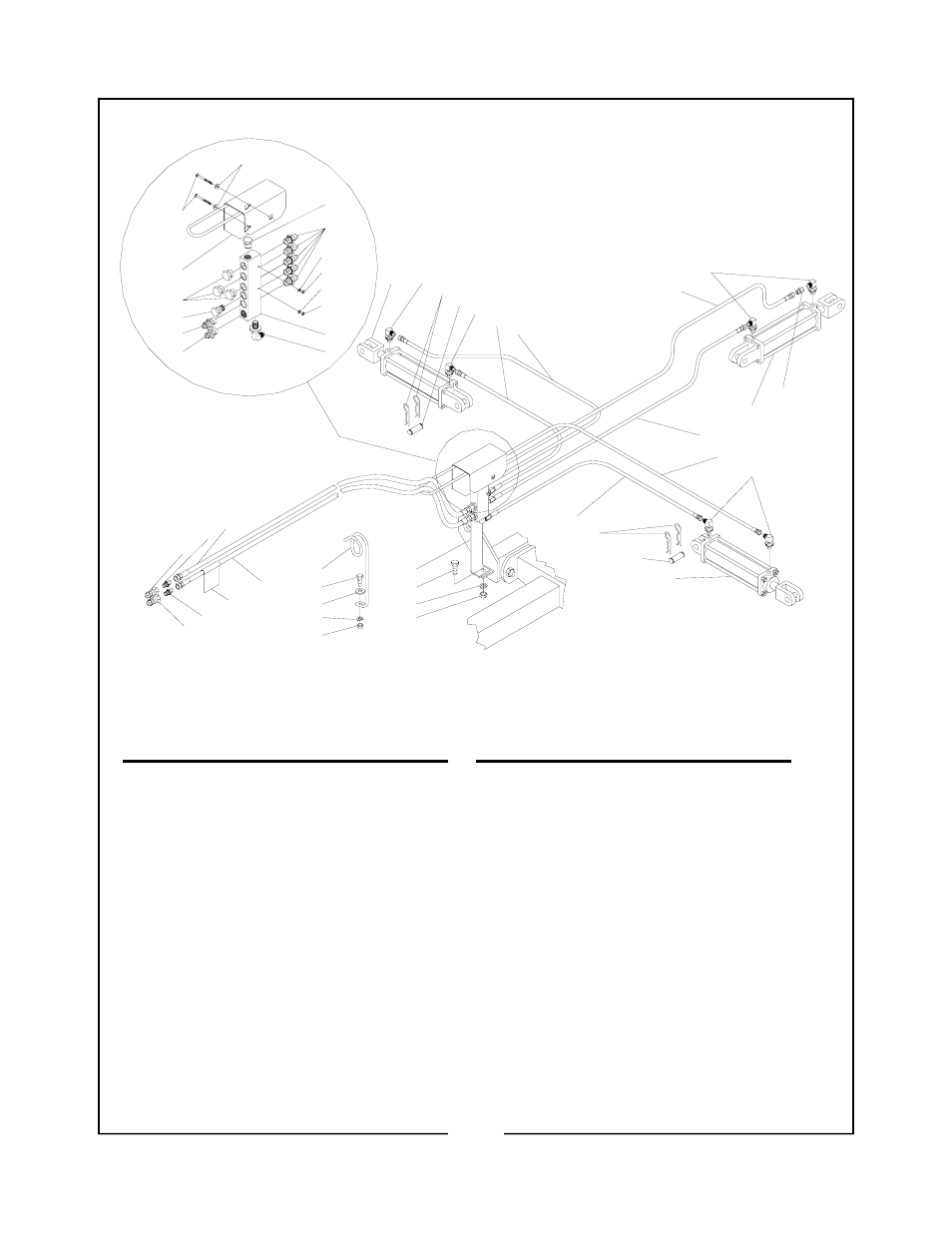

Hydraulic Assembly
MP and FP
6-1
