Locke MP - Manual (Page 18)

6
7
8
9
15
16
10
11
12
13
17
18
14
5
2
4
3
1
REF. PART QTY DESCRIPTION
NO. NO.
1 50024407 2 Tire & Wheel Assy.
2 50024406 1 Tire
3 94378 1 Wheel
4 50001181 1 Valve Stem
5 50021320 2 Spindle & Hub Assy.
6 50021317 1 Spindle
7 15675 1 Cotter Pin, 5/32” x 1-1/2”
8 50021318 1 Rear Seal
9 50000115 1 Bearing Cone (Inner)
10 50076 1 Bearing Cone (Outer)
11 20571 1 Flatwasher 7/8”
12 20429 1 Castle Nut 7/8”
13 3750021 1 Hub Cap
14 50021319 1 Hub w/ Cups & Bolts
15 50000113 1 Inner Bearing Cup
16 14-6-197 1 Outer Bearing Cup
17 20775 6 Lug Bolt 1/2” x 1-7/8”
18 15515 6 Lug Nut 1/2” x 20 UNF

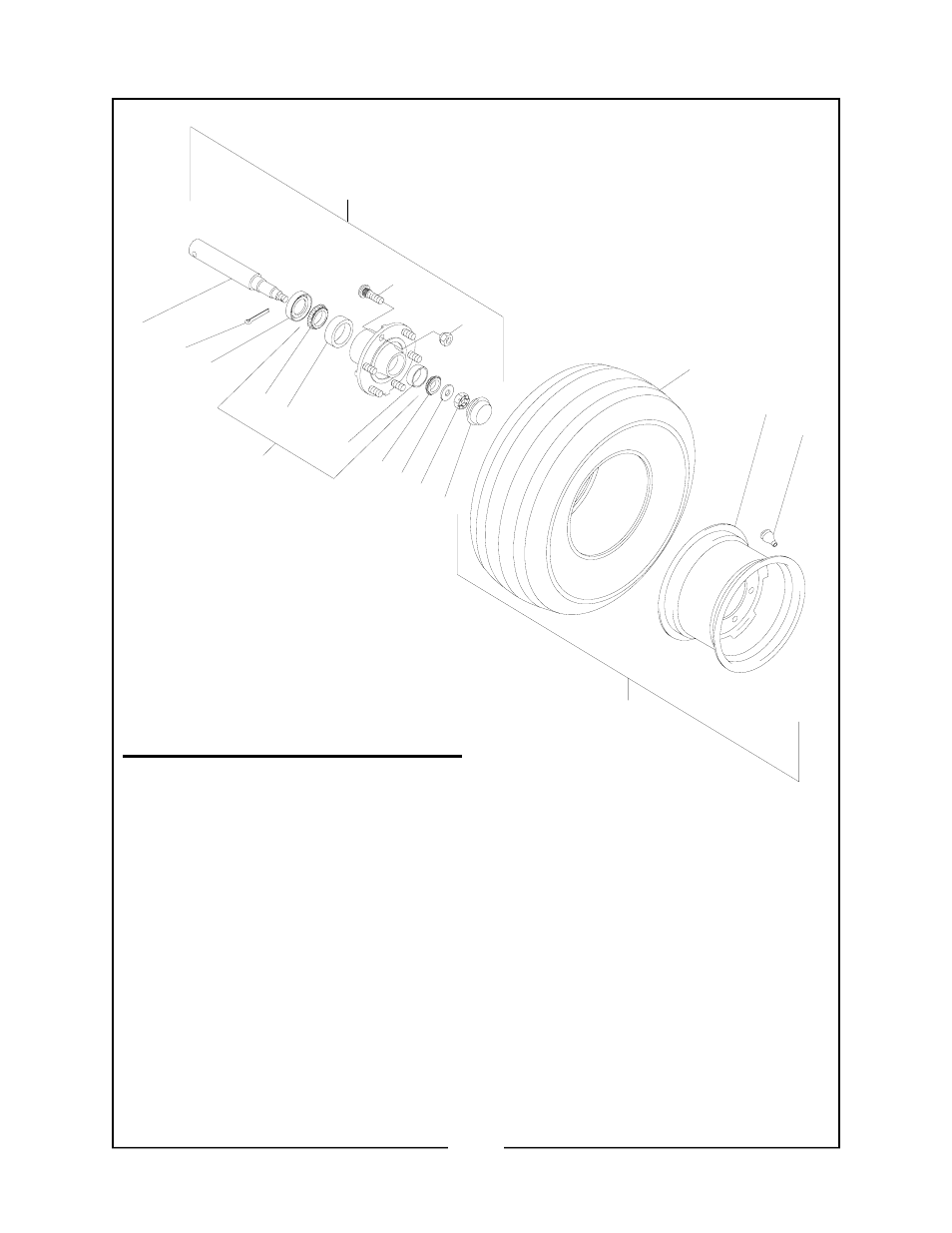

Transport Wheel, Tire & Spindle
5-2
