Locke MP - Manual (Page 10)

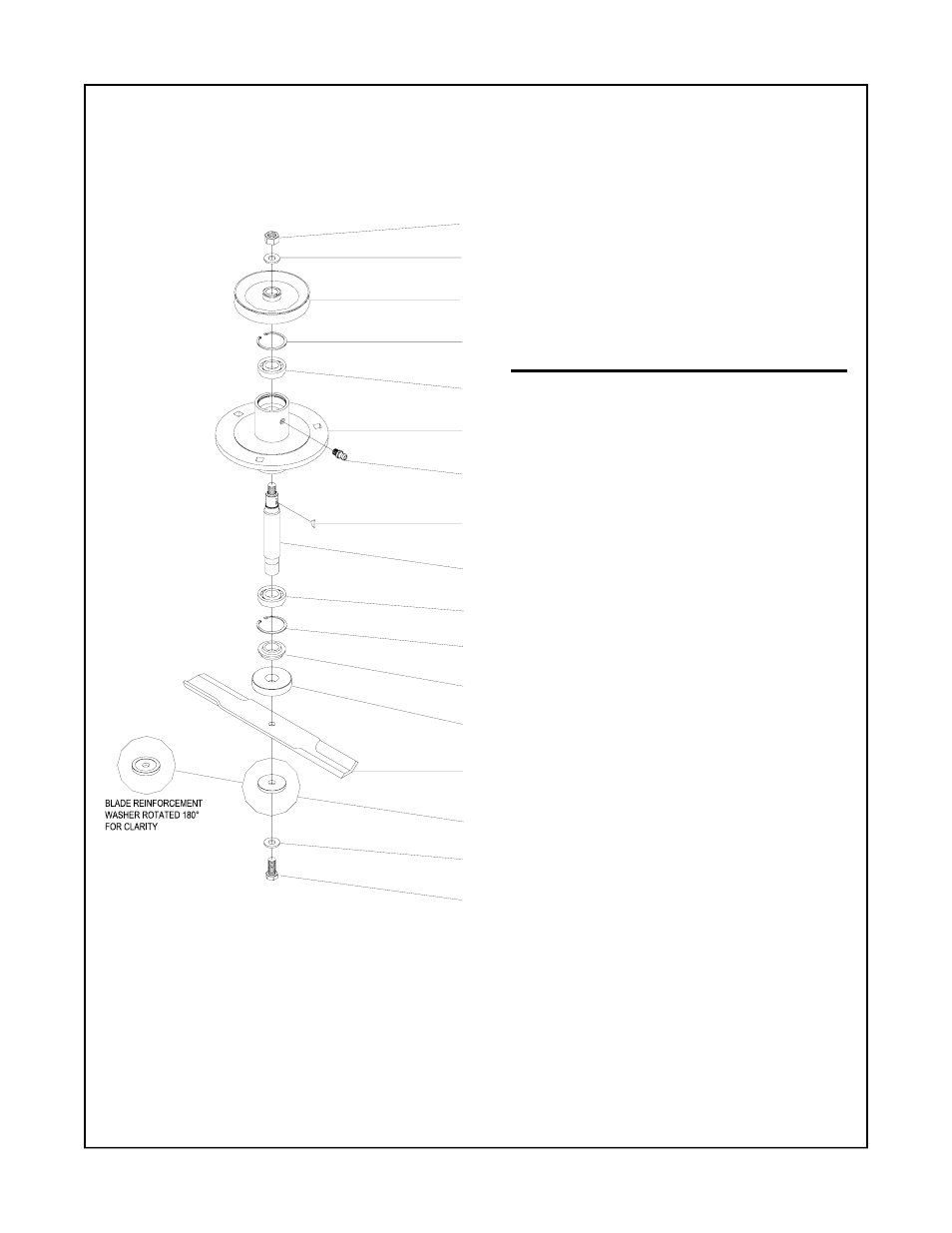

Blade Reinforcement
Washer Rotated 180°
For Clarity
REF. PART QTY DESCRIPTION
NO. NO.
1 9162000 1 Lock
Nut 5/8”
2 20748 2 Flatwasher 5/8”
3 95752 1 Upper Sheave
4 97685 2 Snap Ring
5 95764 2 Bearing, Inner Shaft
6 50100001 1 Machined Housing Weldment
7 449 1 Grease Fitting
8 20593 1 Woodruff Key
9 95757 1 Shaft, Inner
10 50100049 1 Blade Bushing
11 50034015 1 Washer, Heavy Duty
12 82323 1 Blade
13 50100045 1 Washer, Heavy Duty
14 44506 1 HHCS 1/2”-20 UNF x 1-3/4”
2-4
1
2
3
4
5
6
7
8
9
5
4
10
11
12
13
2
14
