Locke MP - Manual (Page 16)

7
6
8 7
6
10 9 12
11
18 17 16 7
15 13
14
1 2
5
4
19
20 21 22 23 24 22 25
3

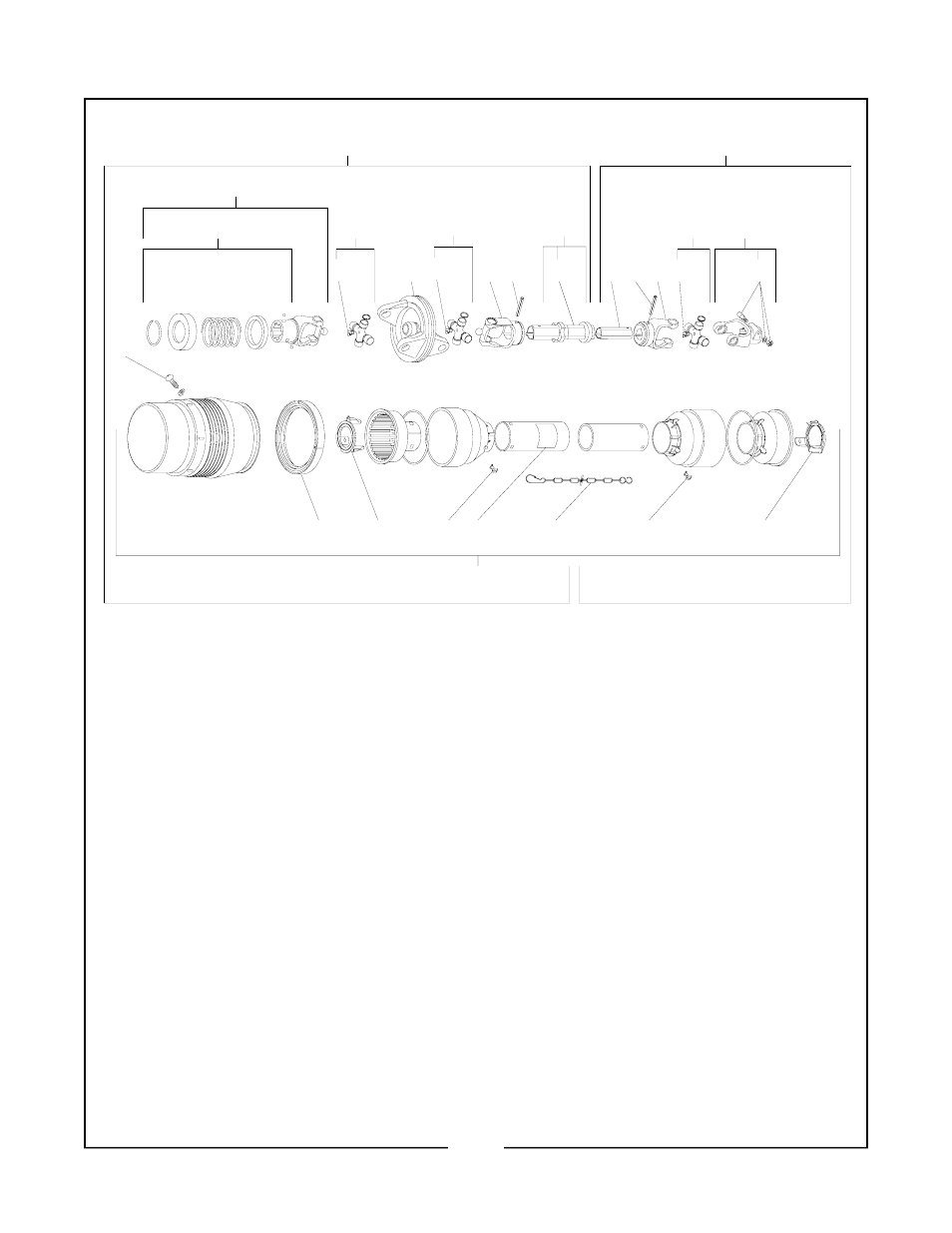

REF. PART QTY DESCRIPTION
NO. NO.
1 76521
1 Tractor Half Assy.
2 76522 1 Implement Half Assy.
3 76514 1 Complete Shield Assy.
4 50017505 1 Yoke Assy. w/ Collar
5 50017480 1 Collar Kit
6 76420 2 Cross Bearing Kit
7 63956 3 Grease Fitting
8 76421 1 Double Yoke Assy.
9 76471 1 Outer Yoke
10 66866 1 Roll Pin
11 76474 1 Outer Tube Assy.
12 78786 1 Decal, Danger Outer
13 76056 1 Yoke, & Pin Assy.
REF. PART QTY DESCRIPTION
NO. NO.
14 76064 1 Taper Pin Kit
15 64663 1 Cross Bearing Kit
16 66870 1 Inner Yoke
17 66869 1 Roll Pin
18 76475 1 Inner Tube
19 76362 6 Screw
20 76423 1 Bearing Ring
21 76057 1 Outer Bearing
22 87992 6 Shield Bolt
23 78608 1 Danger Decal
24 64814 3 Safety Chain
25 76059 1 Inner Bearing
93063 C.V. Driveshaft (Input)
540 RPM
Manufactured by EG
4-3
