Locke MP - Manual (Page 19)

13
2
20
10
9
8
12
15
1
9
12
8
19
18
17
15
11
4 14 9 8 7 6 3 9 7 8
13
5
16
13
10
REF. PART QTY DESCRIPTION
NO. NO.
1 95415 1 Roller Assembly (Under)
2 50021173 1 Roller Shaft (Under)
3 79057 1 Roller Assembly (Front)
4 20580 1 HHCS 1/2” x 6-1/2”
5 50021168 1 Right Hand Roller Mount
6 50021169 1 Left Hand Roller Mount
7 20034 4 HHCS 3/8” x 1”
8 15812 8 Lockwasher 3/8
9 15830 8 Flatwasher 3/8”
10 50021171 2 Roller Bracket
11 1161212 4 HHCS 3/8” x 1-1/4”
12 8151200 4 Hex Nut 3/8”
13 9161600 2 Locknut 1/2”
14 50021170 1 Sleeve
15 50020073 2 Baffle
16 44109 8 Carriage Bolt 3/8” x 1”
17 15830 8 Flatwasher 3/8”
18 15812 8 Lockwasher 3/8”
19 8151200 8 Hex Nut 3/8”
20 50021172 1 Sleeve

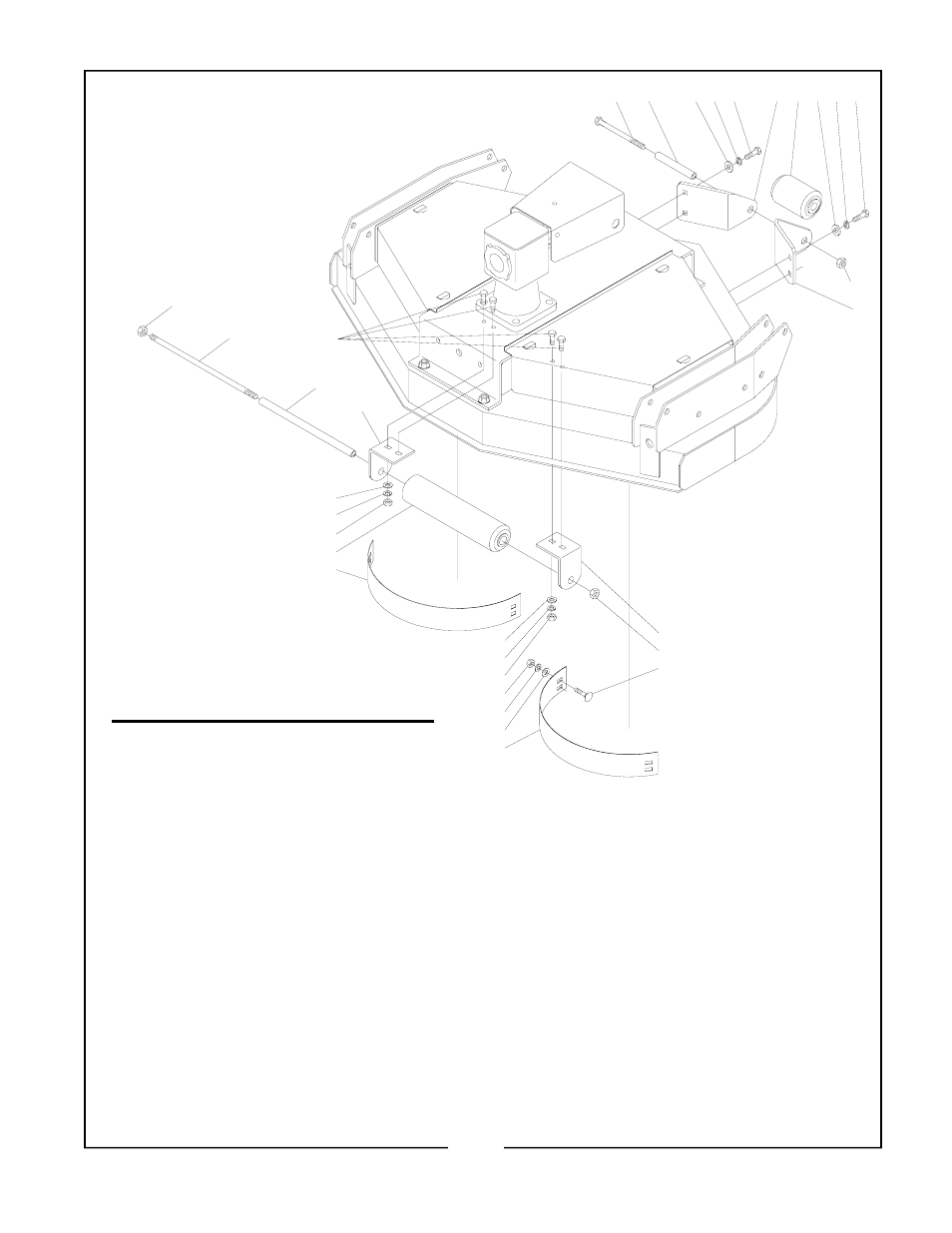

Roller Assembly
MP and FP
5-3
