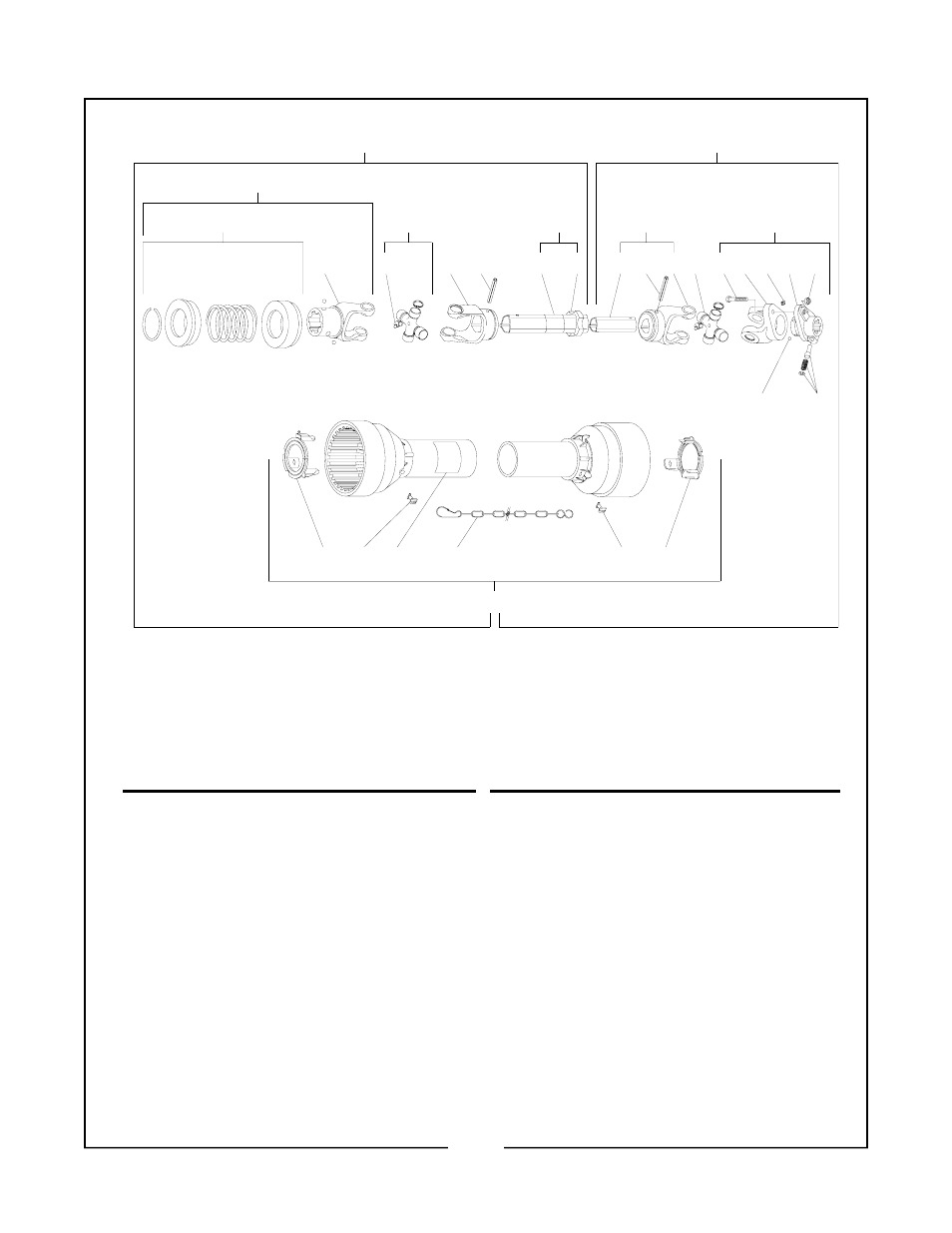

Locke MP User Manual
Page 14
17
3
4
5
27
6
8 9
10 2
22 18 23 21 30
20
19
29
2
7
11
1
25
26
13
12
28
15
13
14
16
24
REF. PART
QTY DESCRIPTION
NO. NO.
1 76801
1 Complete
Collar
Yoke
2 64610
2 Cross
Journal
Set
3 63956
2 Grease
Nipple
4 66112
1 Outer
Yoke
5 66869
1
Roll Pin For Outer Tube
6 76072
1 Bushing
with
Grease
Nipple
7 76847
1 Complete
Outer
Tube
8 76848
1
Inner
Tube
9 66110
1
Roll Pin for Inner Tube
10 66109
1 Inner
Yoke
11 76616
1 Complete
Shear
Bolt
12 87995
1 Collar
for
Outer
Tube
13 87992
6 Bolt
14 87993
1 Collar
for
Inner
Tube
15 64814
2 Safety
Chain
REF. PART
QTY DESCRIPTION
NO. NO.
16 76849
1 Complete
Shield
17 76282
3 Ball
1/2”
18 76618
1 Yoke
19 76202
23
Ball
20 76062
1 Push
Pin
Set
1-3/8”
21 76619
1 Hub
22 44525
6
HHCS M10 x 1.5 x 55
23 63946
1 Grease
Fitting
24 76850
1
Male Tube Yoke w/ Roll Pin
25 76851
1
Half Female Shaft w/ Shield
26 76852
1
Half Male Shaft w/ Shield
27 76786
1 Decal,
Danger,
Outer
Tube
28 78608
1
Decal, Danger, Outer Shield Tube
29 50017480
1
Ball Collar Kit 1-3/8”
30 44342
1 Hex
Nut
M10
76678 Driveshaft, Center
540 RPM - 1-3/8”-6 Spline
Manufactured by Comer
4-1
